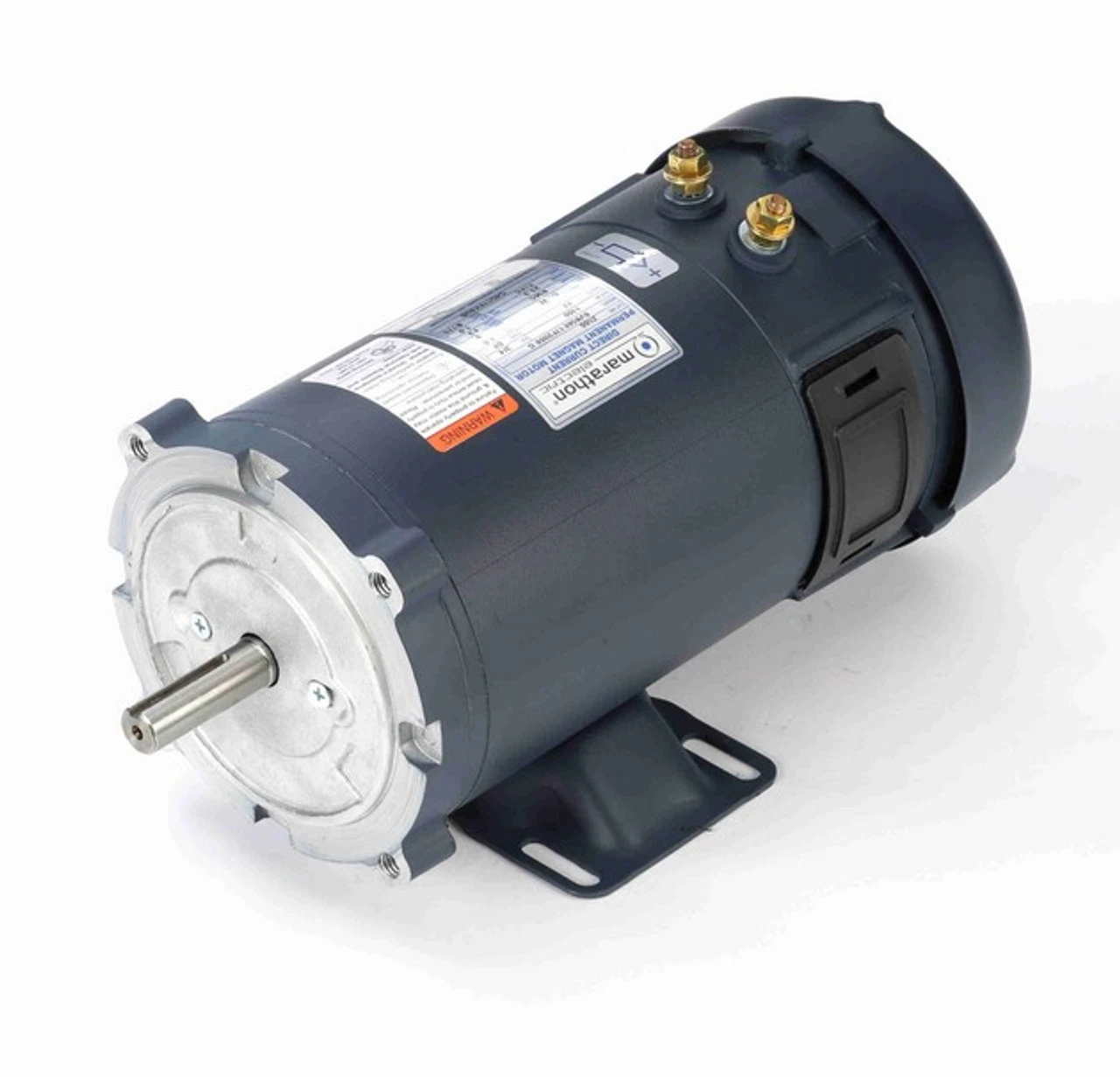

Z666 Marathon 3/4 Hp 12 V DC 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base)

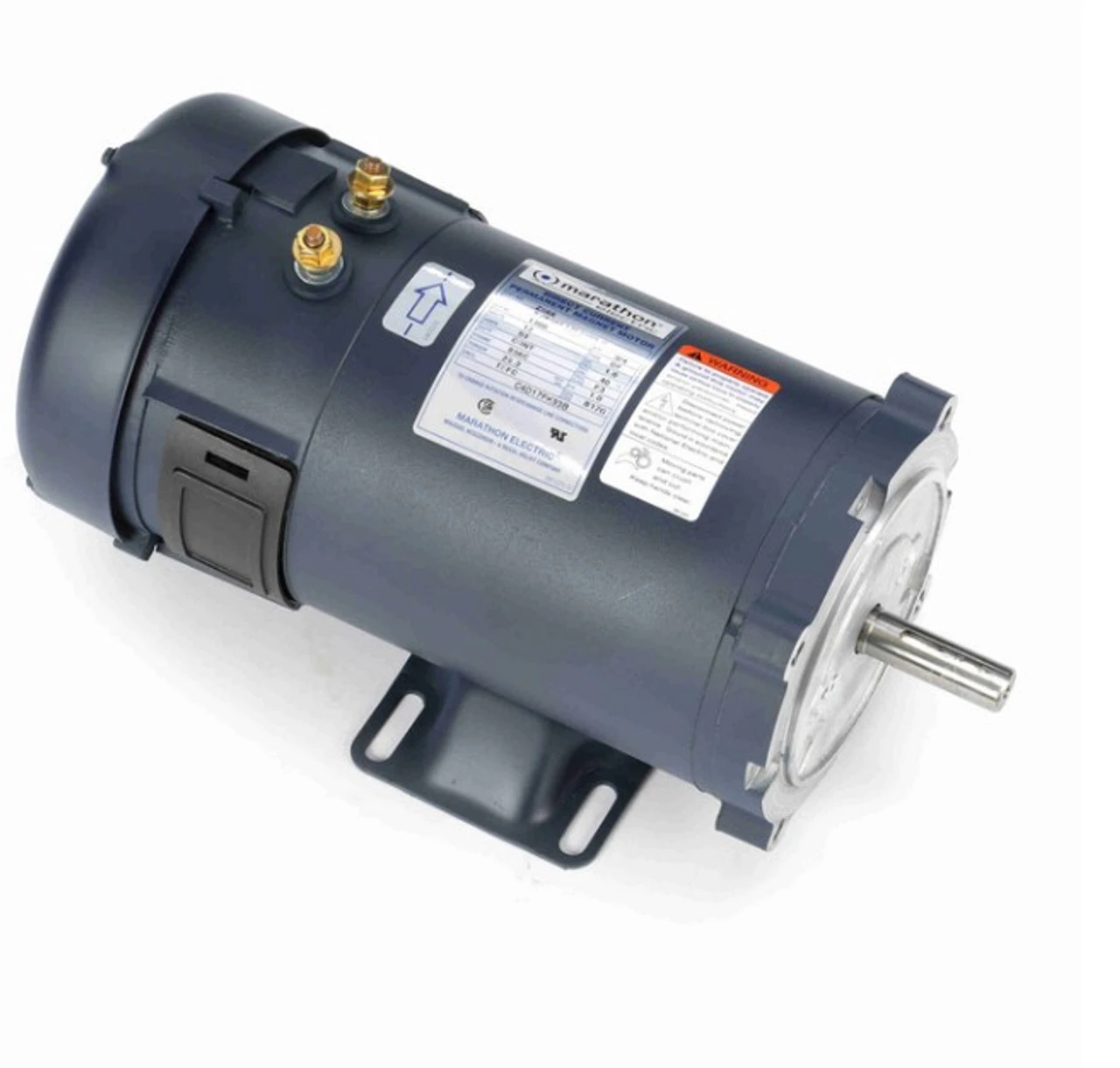

Z666 Marathon 3/4 Hp 12 V DC 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base) - Image 2

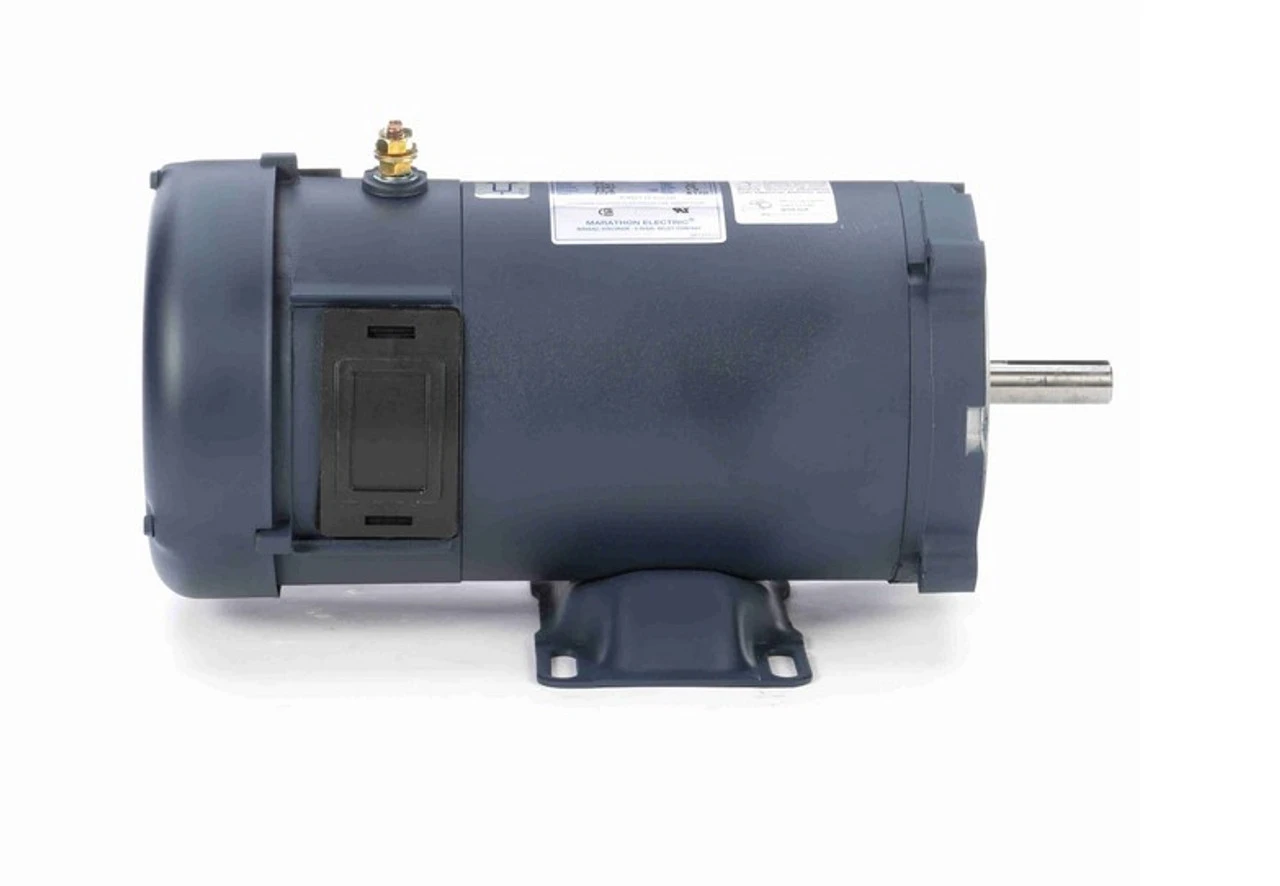

Z666 Marathon 3/4 Hp 12 V DC 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base) - Image 3

Z666 Marathon 3/4 Hp 12 V DC 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base) - Image 4

Z666 Marathon 3/4 Hp 12 V DC 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base)

Original price was: $398.00.Current price is: $96.99.

SKU: ZWXLY 1698665350 Categories: DC Motors, Electric Motors Tag: Marathon

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

3/4 hp 1750 RPM, 58 amps 12 Volts DC current.
NEMA 56C frame, C-face, Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.0, Overload protection = None
Rigid Base, Reversible rotation, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty

Battery voltage DC electric motor with a C-face mount. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 056E17F2008
