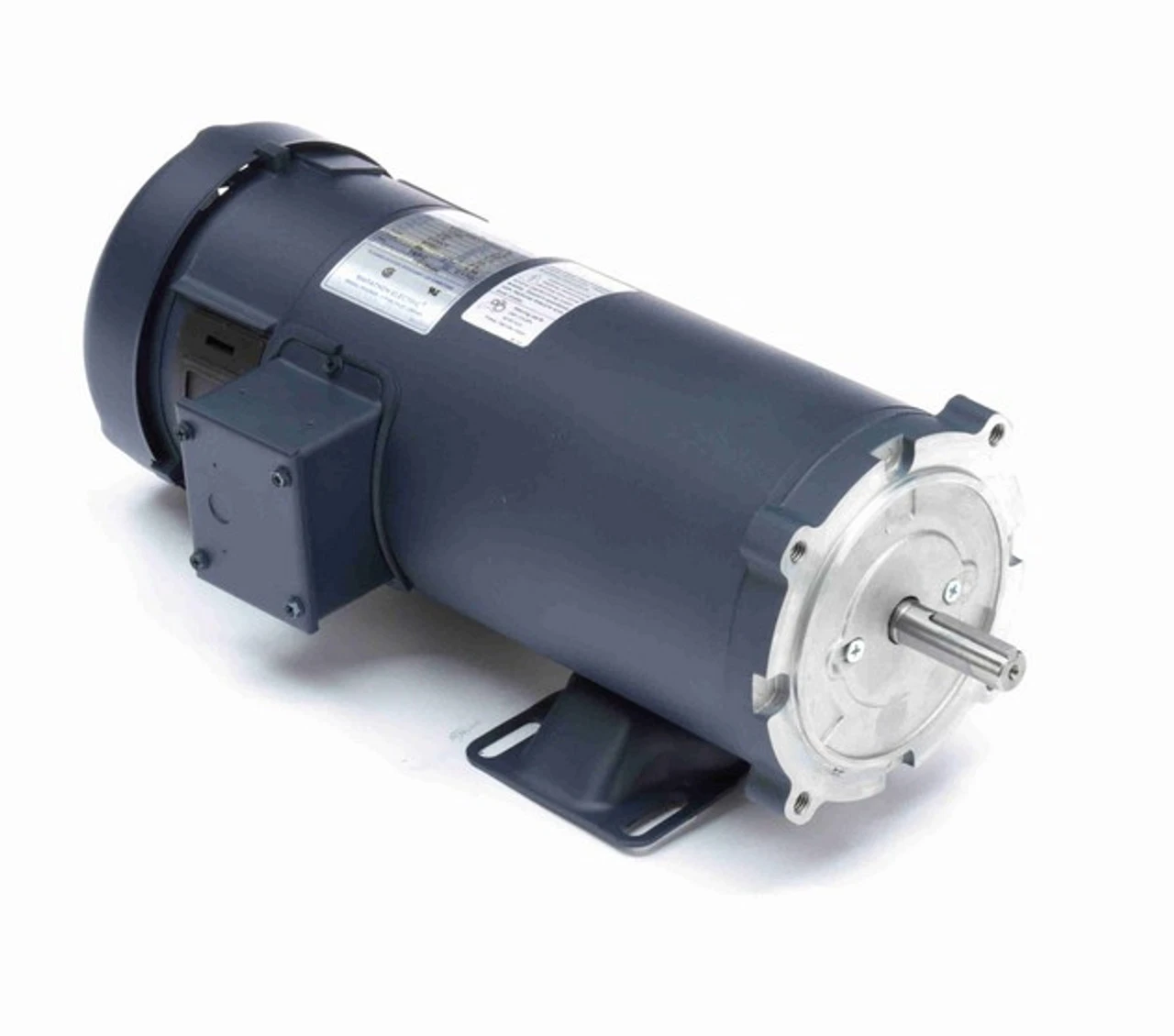

Z614 Marathon 1 1/2 Hp 180 V DC SCR 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base)

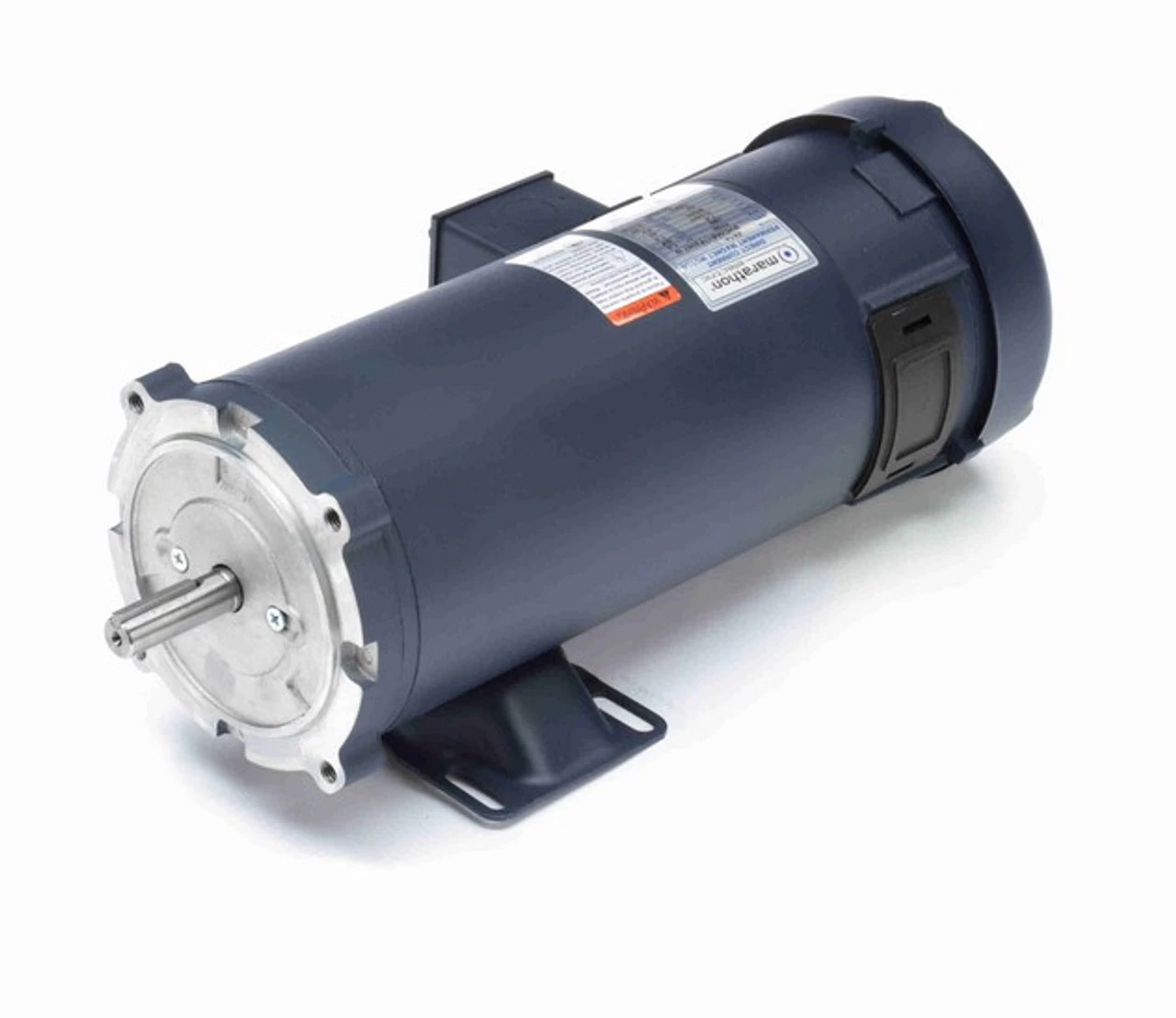

Z614 Marathon 1 1/2 Hp 180 V DC SCR 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base) - Image 2

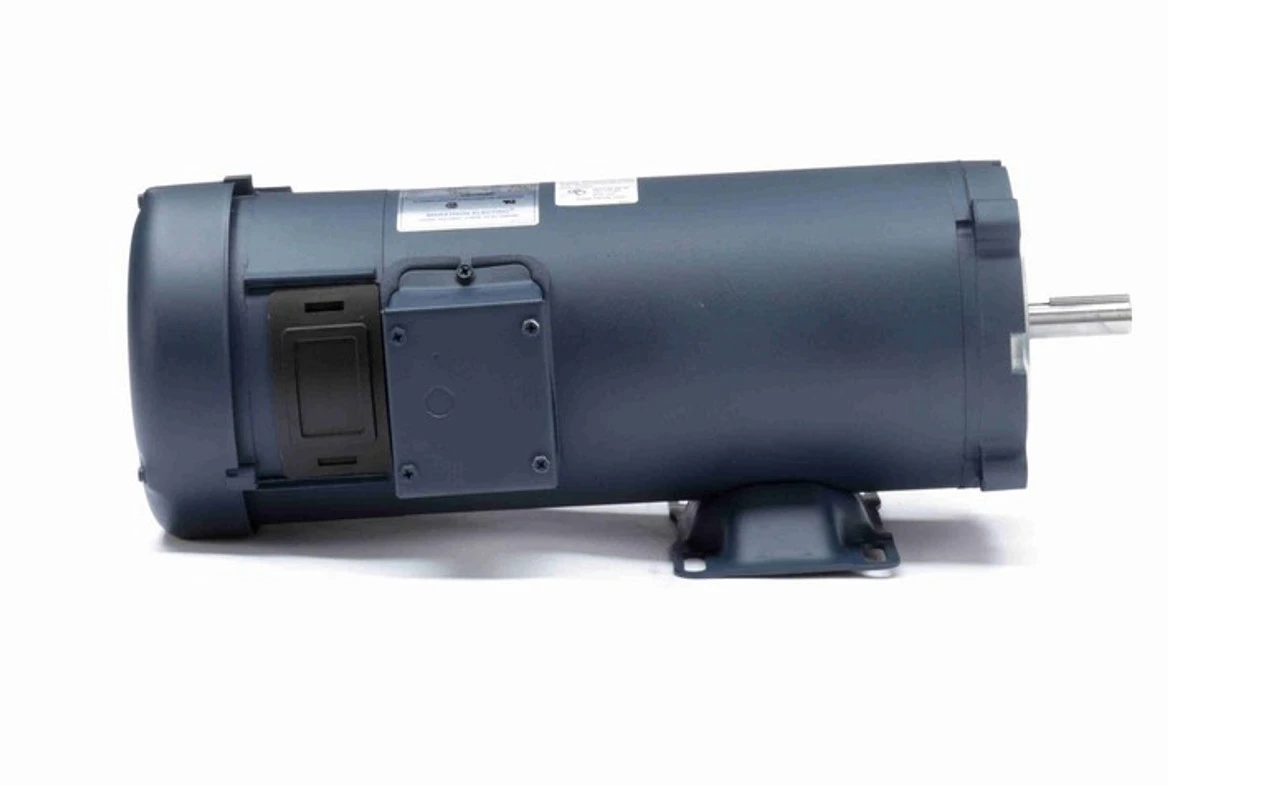

Z614 Marathon 1 1/2 Hp 180 V DC SCR 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base) - Image 3

Z614 Marathon 1 1/2 Hp 180 V DC SCR 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base) - Image 4

Z614 Marathon 1 1/2 Hp 180 V DC SCR 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base)

Original price was: $308.00.Current price is: $95.99.

SKU: ZWXLY 1698665298 Categories: DC Motors, Electric Motors Tag: Marathon

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

1 1/2 hp 1750 RPM, 7.6 amps 180 Volts DC current.
NEMA 56C frame, C-face, Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.0, Overload protection = None
Rigid Base, Reversible Rotation, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty

Controller rated DC electric motor with a C-face mount. 20:1 constant torque. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 056E17F2007
