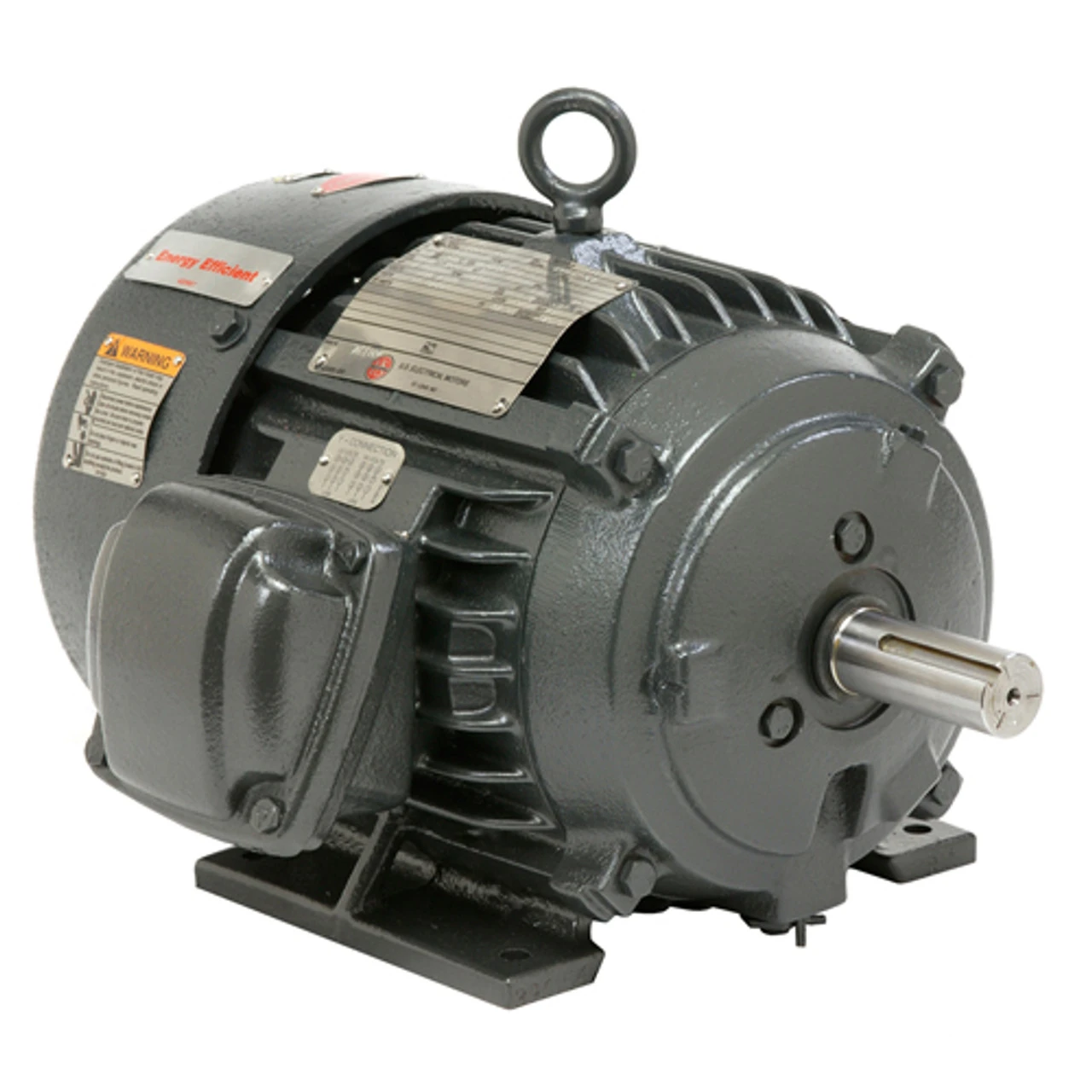

YC10P2B Nidec 10 Hp 1800 RPM 215T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor
Original price was: $346.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 10 hp 1800 RPM, 27.4/13.7 amps 230/460 Volts 60 Hz Three Phase Motor
- NEMA 215T Cast Iron frame Keyed Shaft 1 3/8″ Diameter x 3 3/8″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose, Corrosion resistant, Division 1 hazardous location motor for class 1 group D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. FG65
