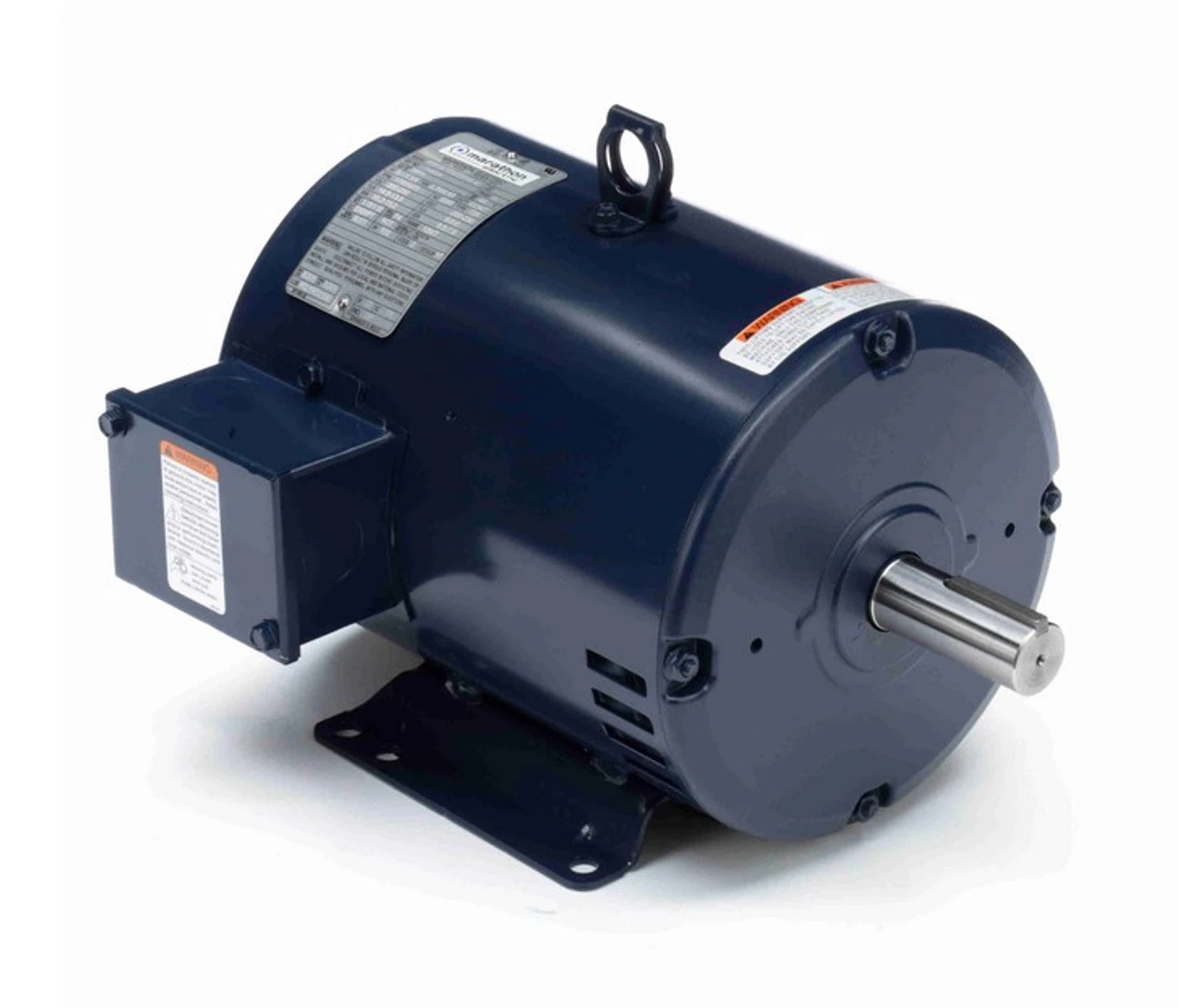

Y486A Marathon 5 Hp (2 Speed) 200-230V 1800/900 RPM ODP 184T Frame 3-Phase Variable Torque Motor

Y486A Marathon 5 Hp (2 Speed) 200-230V 1800/900 RPM ODP 184T Frame 3-Phase Variable Torque Motor - Image 2

Y486A Marathon 5 Hp (2 Speed) 200-230V 1800/900 RPM ODP 184T Frame 3-Phase Variable Torque Motor - Image 3

Y486A Marathon 5 Hp (2 Speed) 200-230V 1800/900 RPM ODP 184T Frame 3-Phase Variable Torque Motor - Image 4

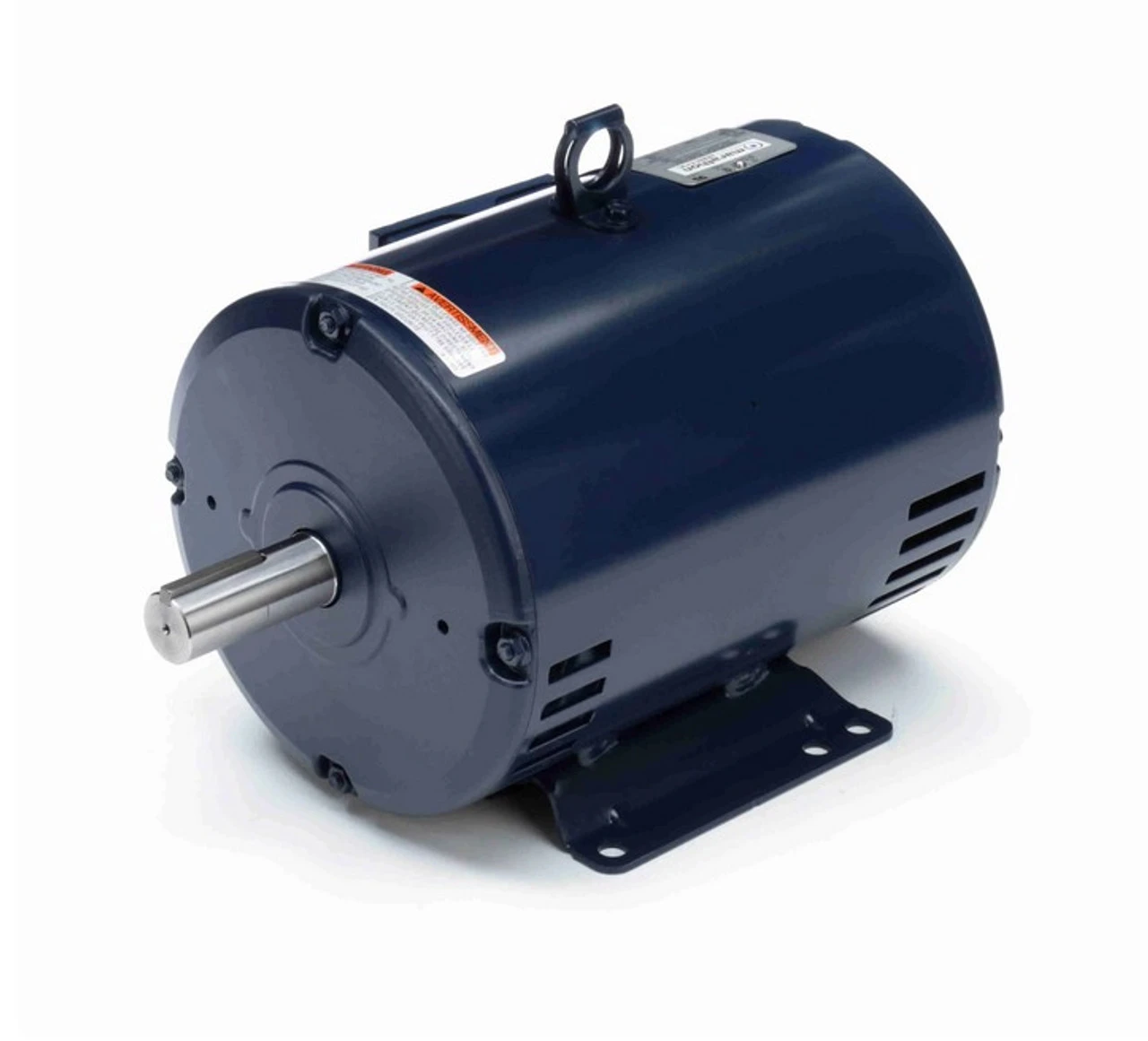

Y486A Marathon 5 Hp (2 Speed) 200-230V 1800/900 RPM ODP 184T Frame 3-Phase Variable Torque Motor -Electric Motor Warehouse Store 486 left 88209.1635780257

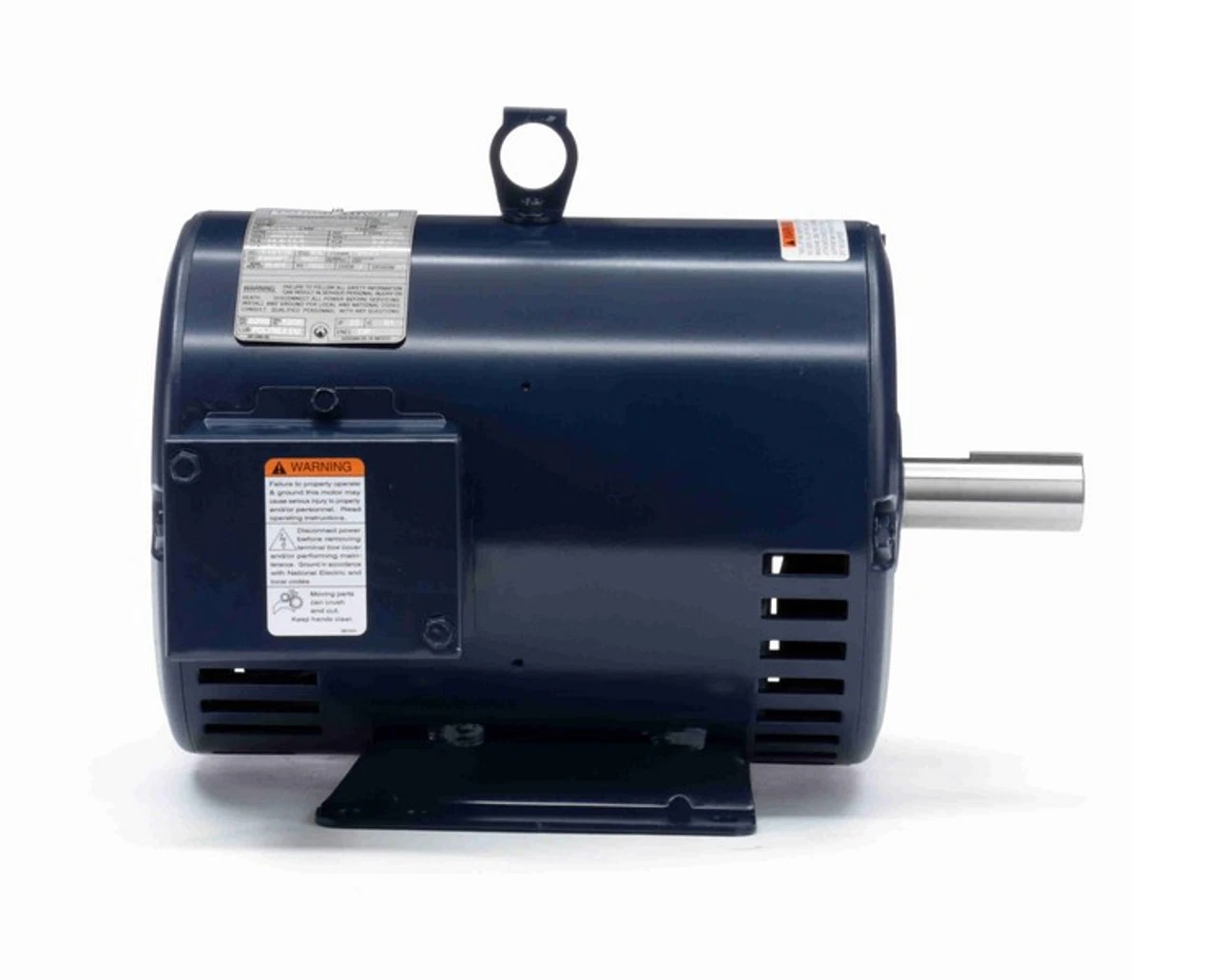

Y486A Marathon 5 Hp (2 Speed) 200-230V 1800/900 RPM ODP 184T Frame 3-Phase Variable Torque Motor -Electric Motor Warehouse Store 486 side 11574.1635780262

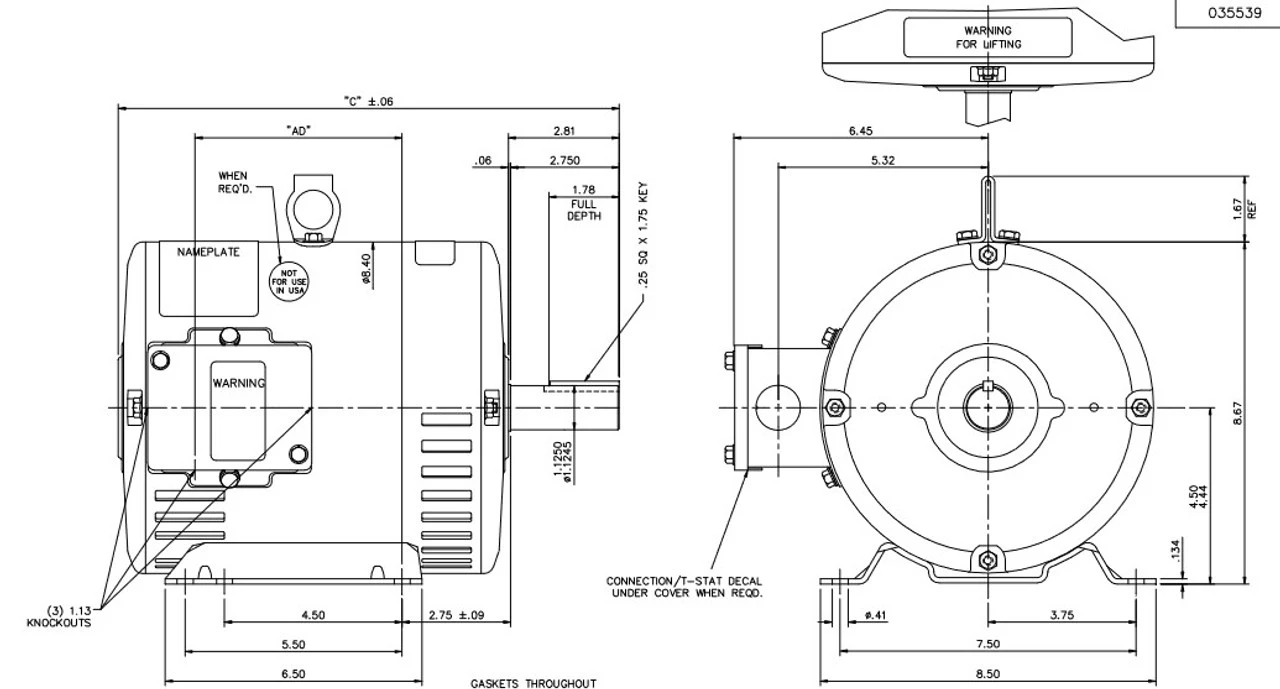

Y486A Marathon 5 Hp (2 Speed) 200-230V 1800/900 RPM ODP 184T Frame 3-Phase Variable Torque Motor -Electric Motor Warehouse Store 486 line 25676.1635780267

Y486A Marathon 5 Hp (2 Speed) 200-230V 1800/900 RPM ODP 184T Frame 3-Phase Variable Torque Motor

Original price was: $347.00.Current price is: $97.99.

SKU: ZWXLY 1698654913 Categories: Electric Motors, Leeson/Marathon Electric Motors Tag: Marathon

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

5 hp 1800/900 RPM, 14.5-13.8 amps, 200-230 Volts 60 Hz, 3-Phase
NEMA 184T Frame, Shaft 2 3/4″ x 1 1/8″ Diameter, 2 speed
Service Factor = 1.15, Thermal Protection = None
Rigid Base, Reversible rotation, Ball Bearings, Class F insulation
1 Year Manufacture Warranty

For use on blowers and pumps having variable running loads. Shaft should be horizontal. ODP = Open Drip Proof. 184TTDW7287
