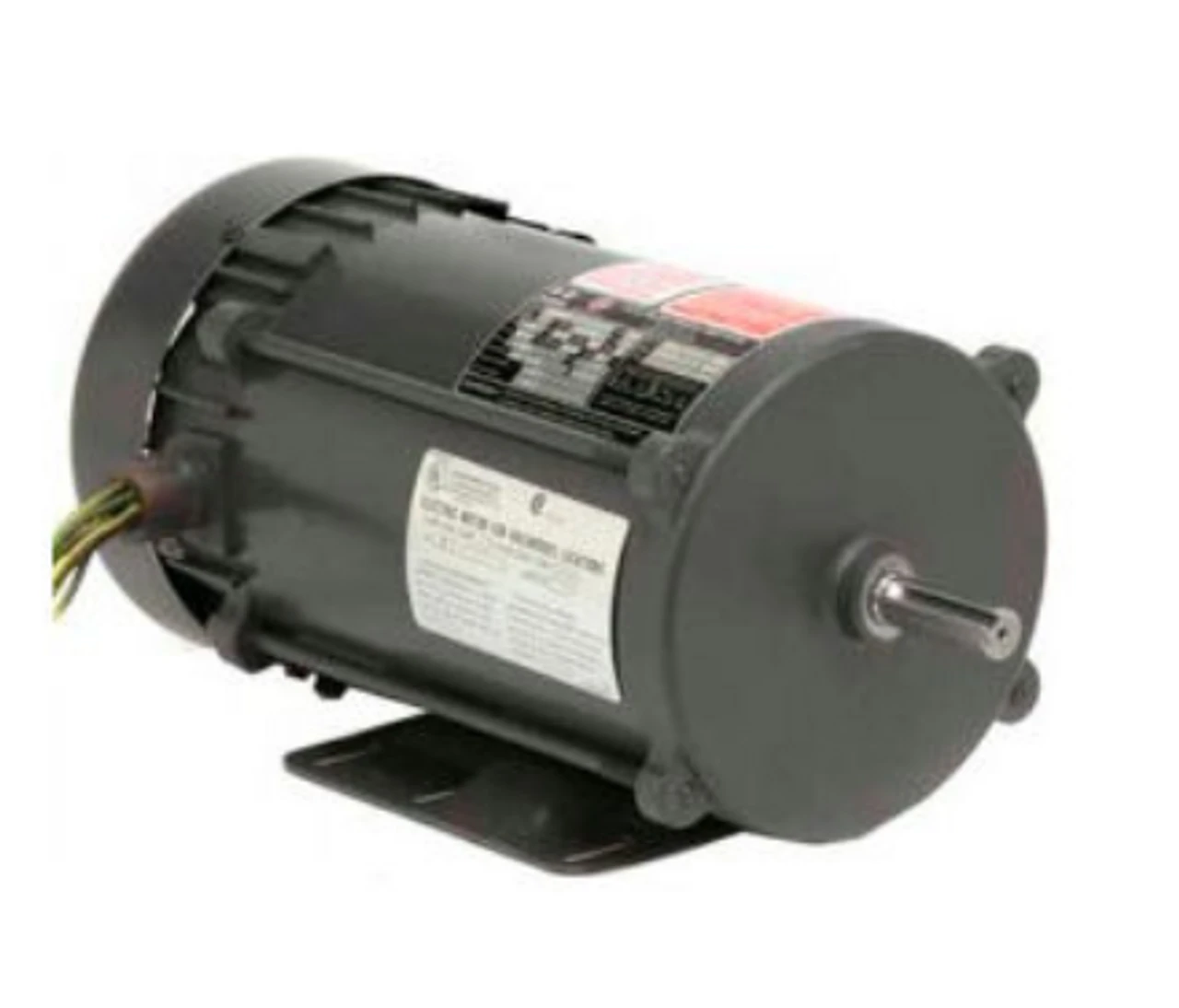

XS34CA1J Nidec 3/4 Hp 3600 RPM 56 Frame 115/208-230V TEFC Cap Start (Rigid) Hazardous Duty
Original price was: $394.00.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 3/4 hp 3600 RPM, 10.4/5.3-5.2 amps 115/208-230 Volts 60 Hz Capacitor Start Motor
- NEMA 56 Rolled Steel Frame, Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.0, Overload protection = Auto
- C-Face Mount, Ball Bearings, Class B Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose Division 1 hazardous location motor for class 1 group CD, class 2 group EFG. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. CH63AAF1005015B
