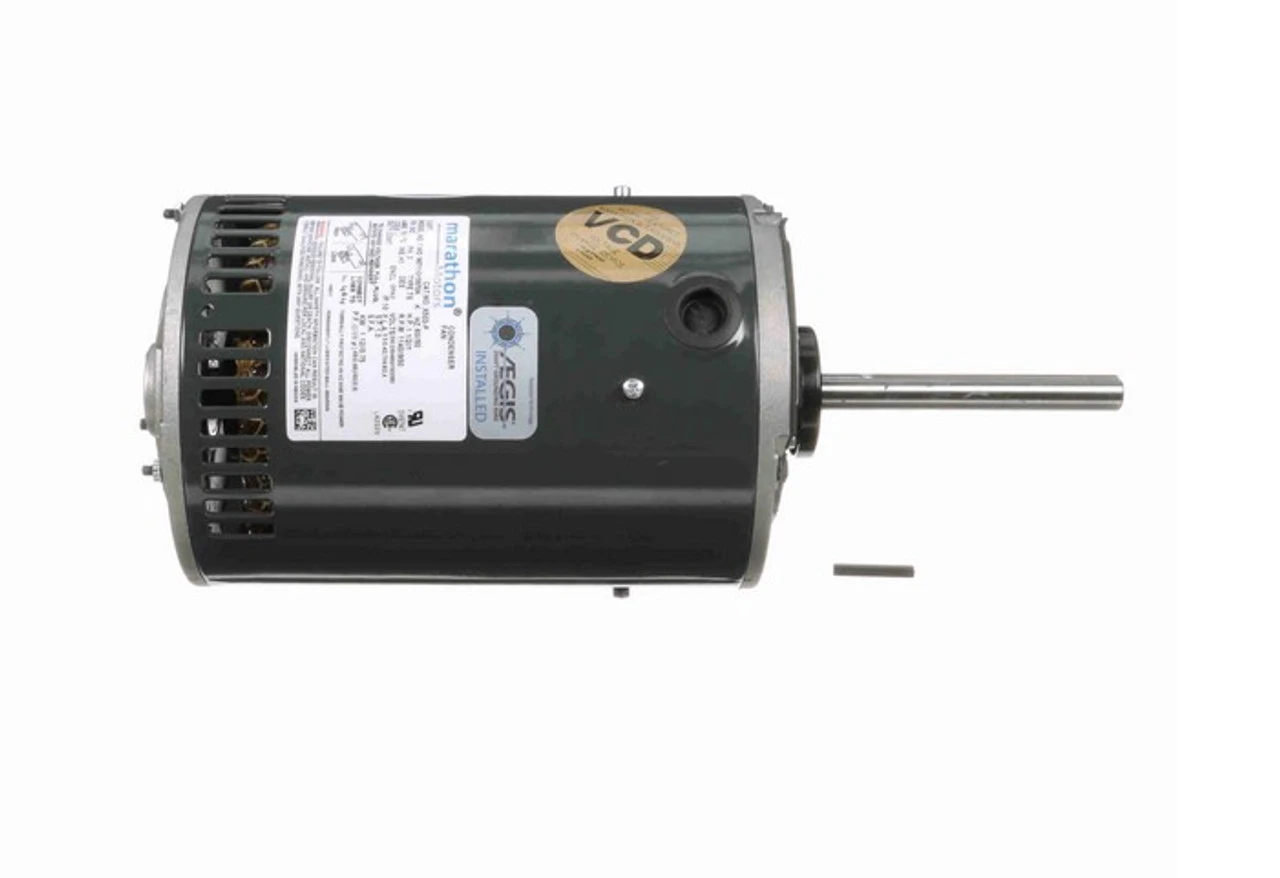

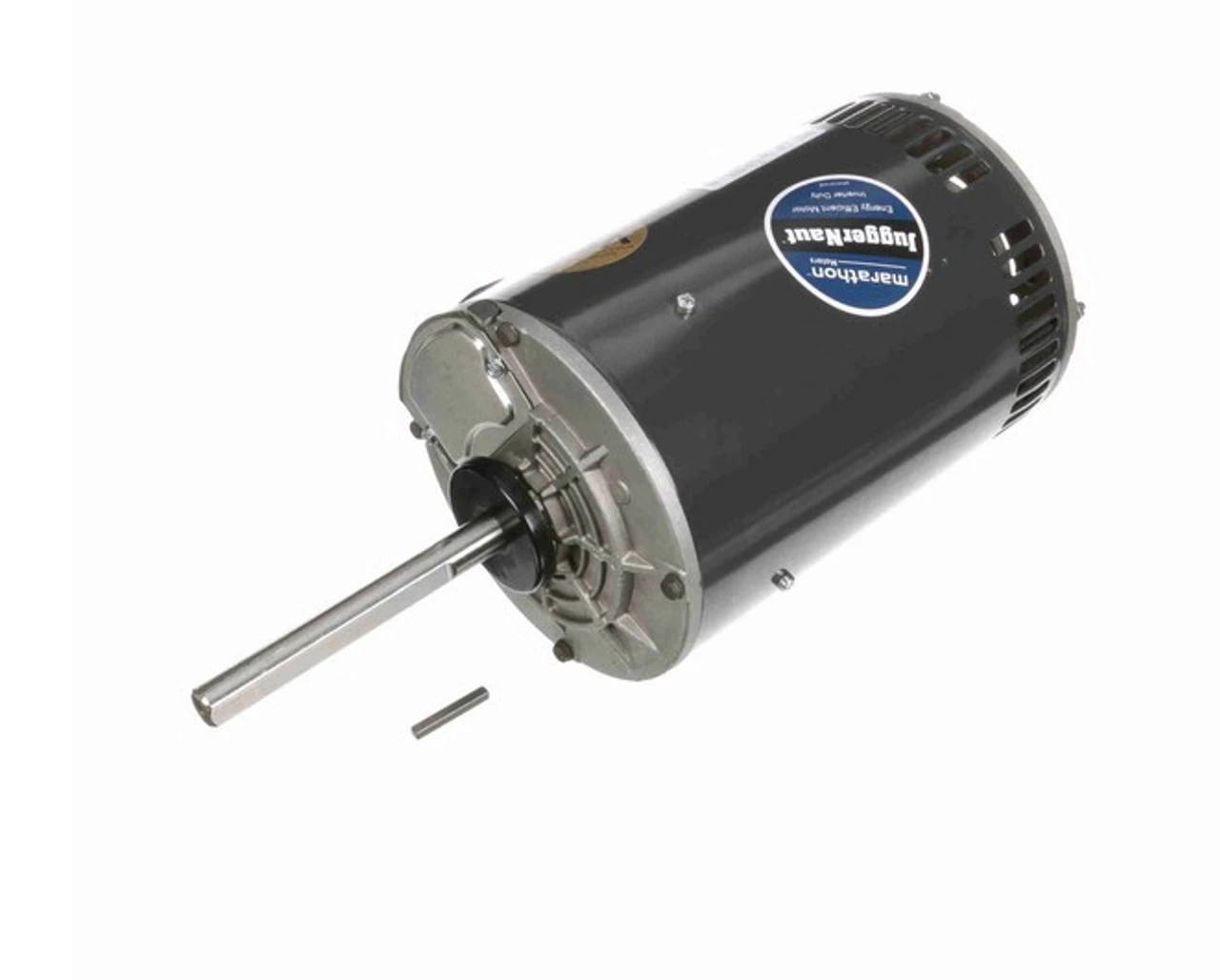

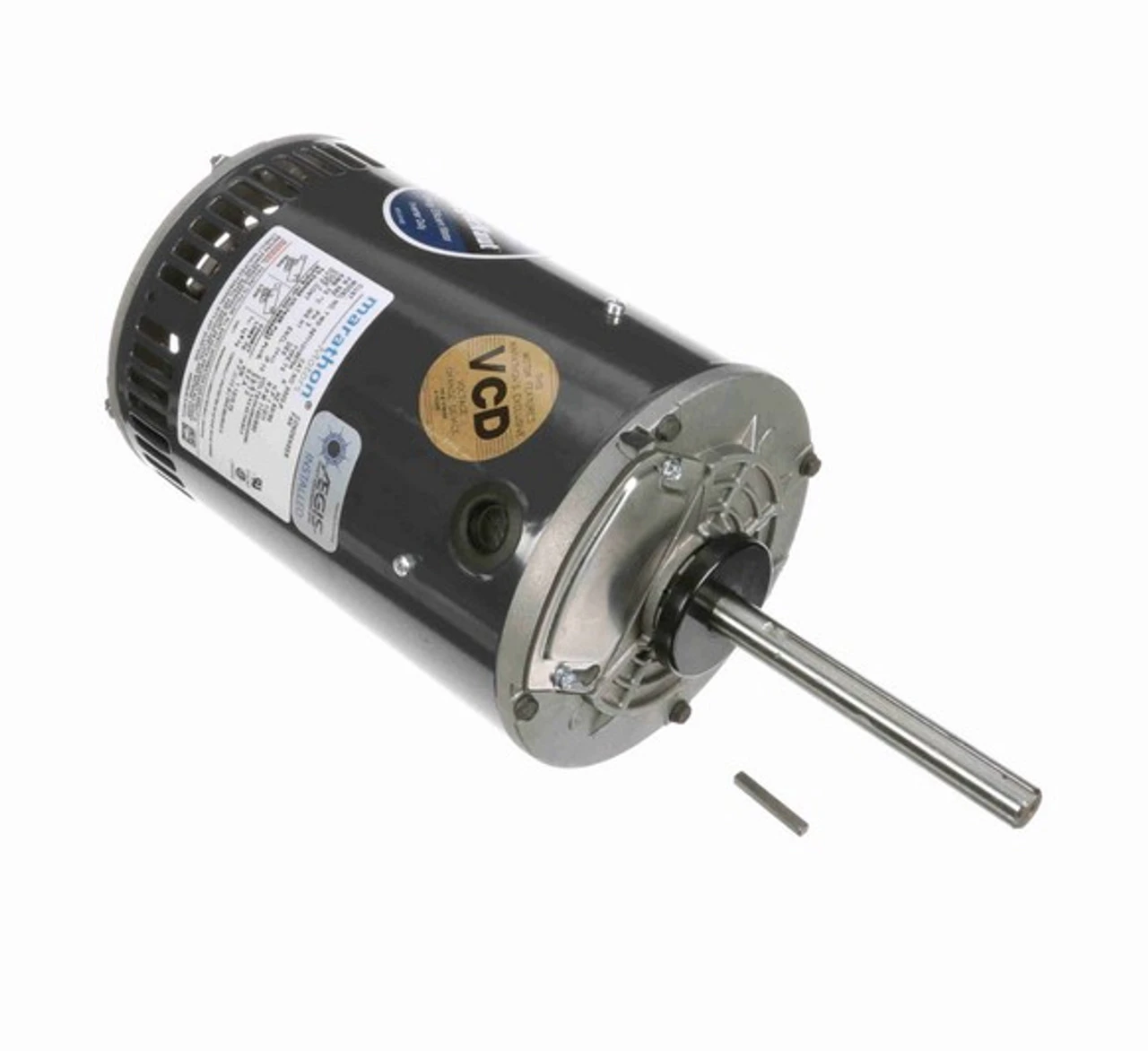

X503-P Marathon 1 1/2 Hp 3-phase 200-230/460V 1075 RPM OPAO 56Z Frame Condenser Fan Motor

X503-P Marathon 1 1/2 Hp 3-phase 200-230/460V 1075 RPM OPAO 56Z Frame Condenser Fan Motor - Image 2

X503-P Marathon 1 1/2 Hp 3-phase 200-230/460V 1075 RPM OPAO 56Z Frame Condenser Fan Motor - Image 3

X503-P Marathon 1 1/2 Hp 3-phase 200-230/460V 1075 RPM OPAO 56Z Frame Condenser Fan Motor - Image 4

X503-P Marathon 1 1/2 Hp 3-phase 200-230/460V 1075 RPM OPAO 56Z Frame Condenser Fan Motor

Original price was: $395.00.Current price is: $95.99.

SKU: ZWXLY 1698667409 Categories: Air Condenser Fan Motor, HVAC Motors & Draft Inducers Tag: Marathon

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

1 1/2 hp 1075 RPM, 5.5-5.4/2.7 amps, 200-230/460 Volts 60 Hz, 3-Phase

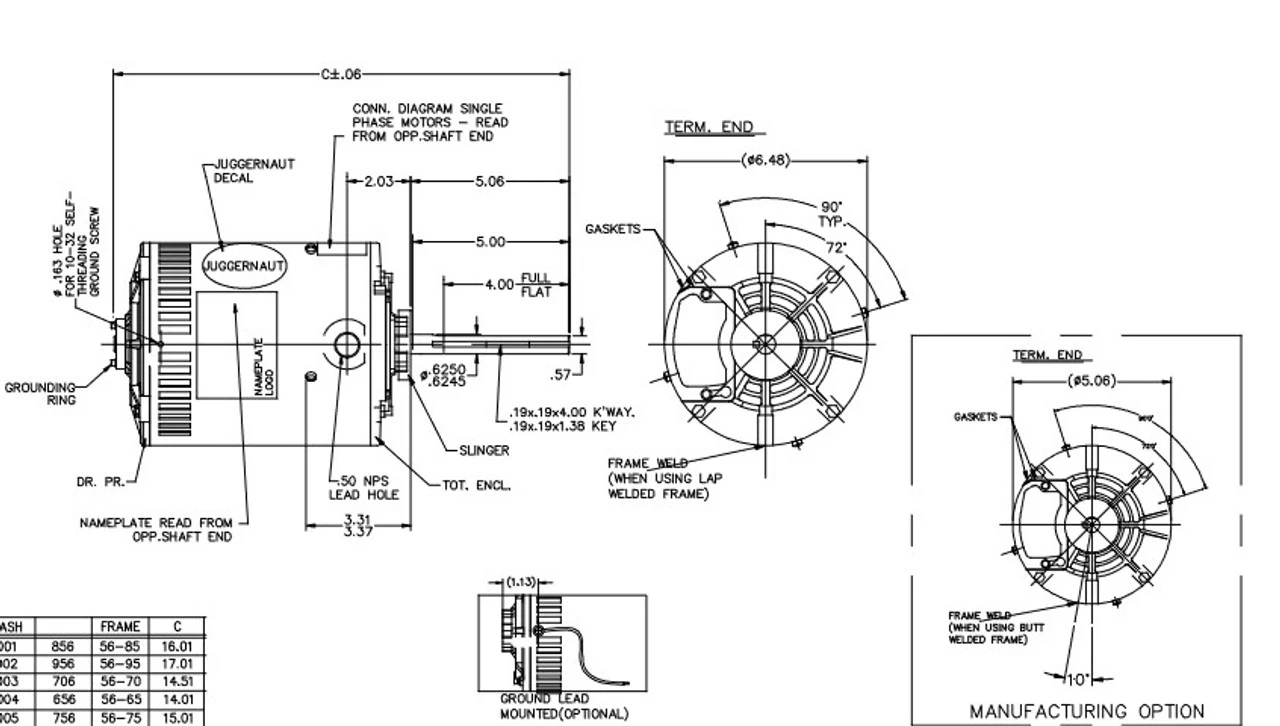

NEMA 56Z Frame Keyed Shaft 5/8″ Diameter x 5″, Bearing Current Protection (BCP)
Service Factor = 1.0, Thermal Protection = Automatic
No Base, Reversible, Ball Bearings, Class H insulation
1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream. 056T11O15570
