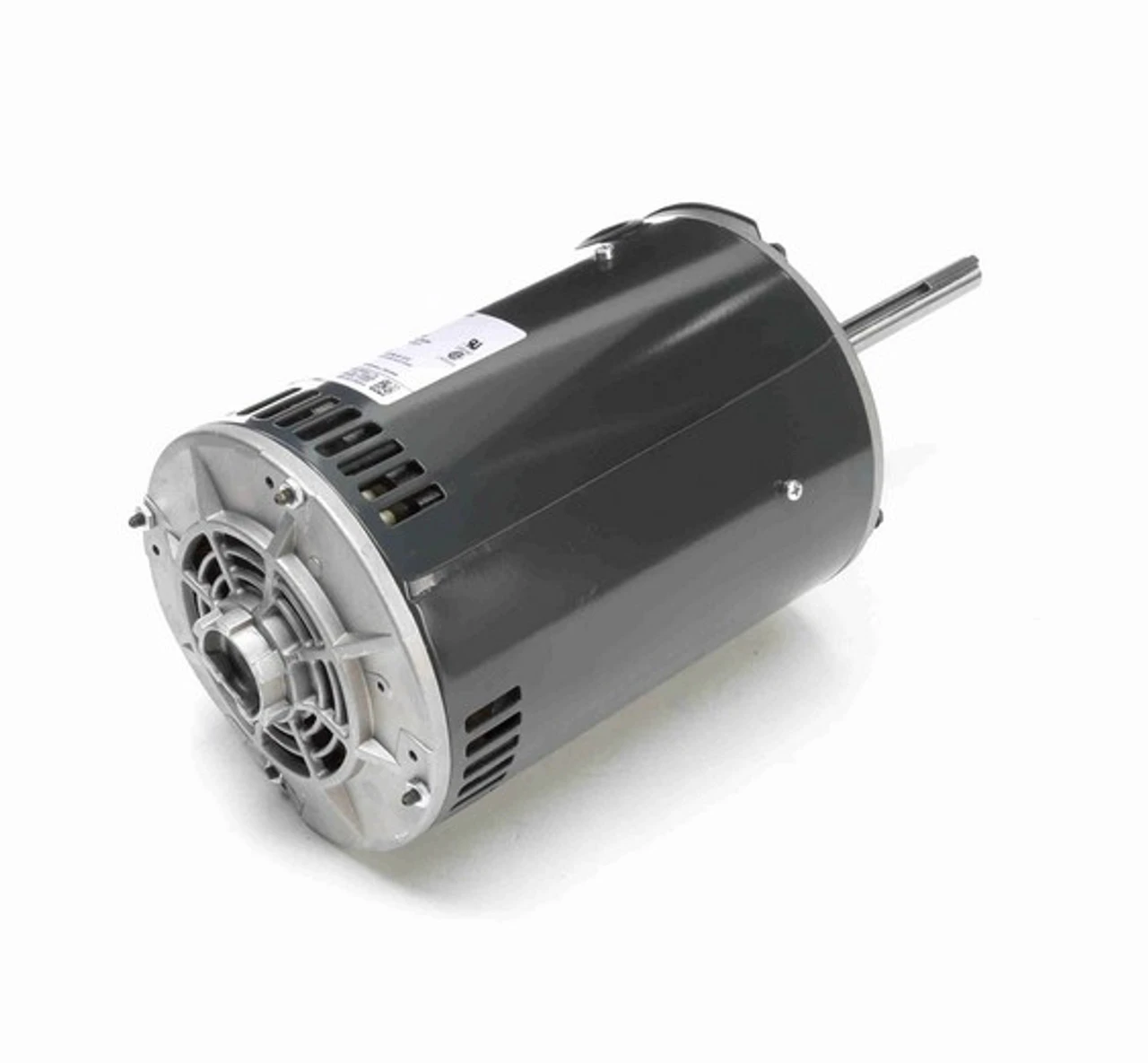

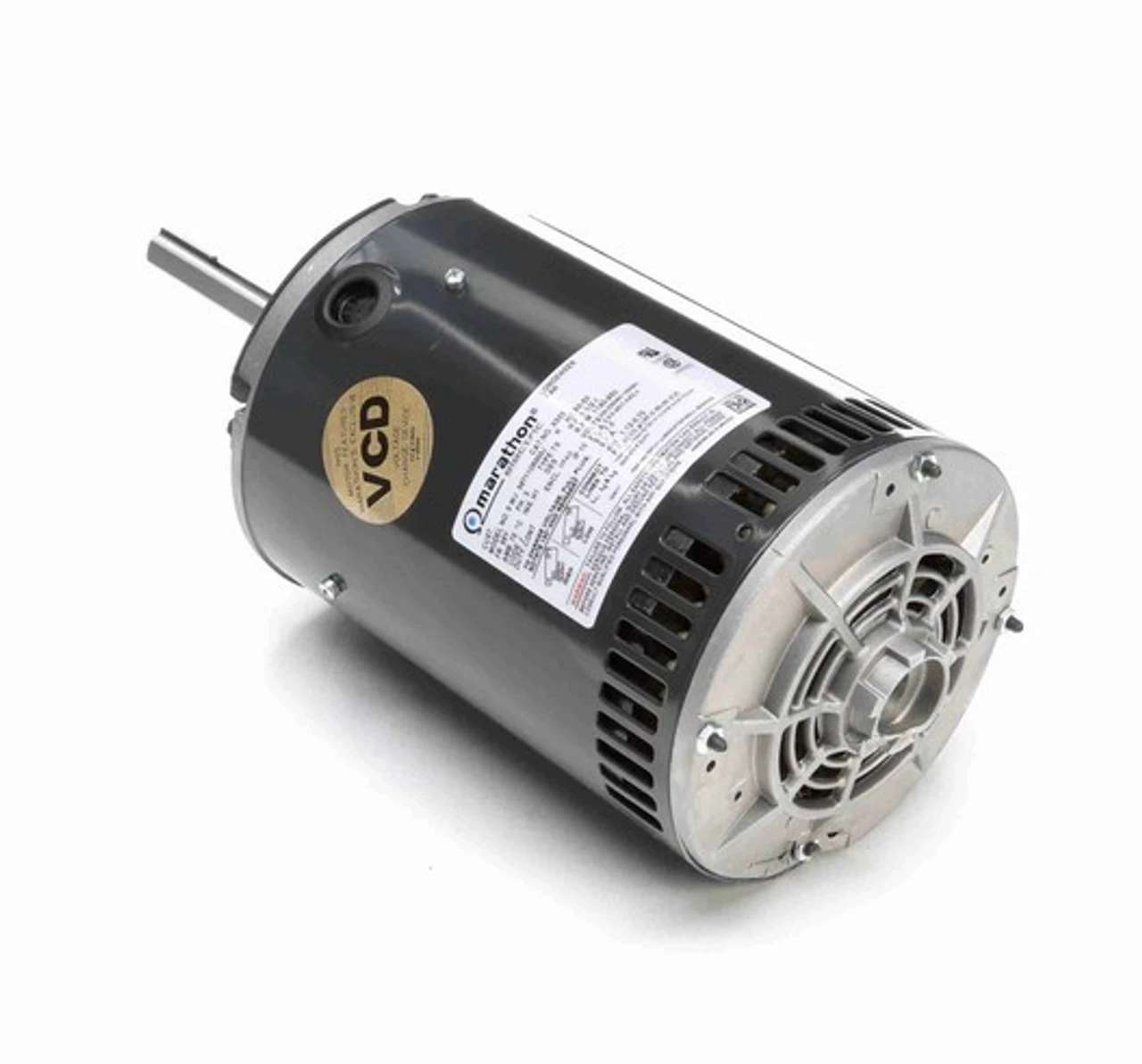

X503 Marathon 1 1/2 Hp 3-phase 200-230/460V 1075 RPM OPAO 56Y Frame Condenser Fan Motor
Original price was: $370.00.$99.99Current price is: $99.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 1/2 hp 1075 RPM, 5.5-5.4/2.7 amps, 200-230/460 Volts 60 Hz, 3-Phase

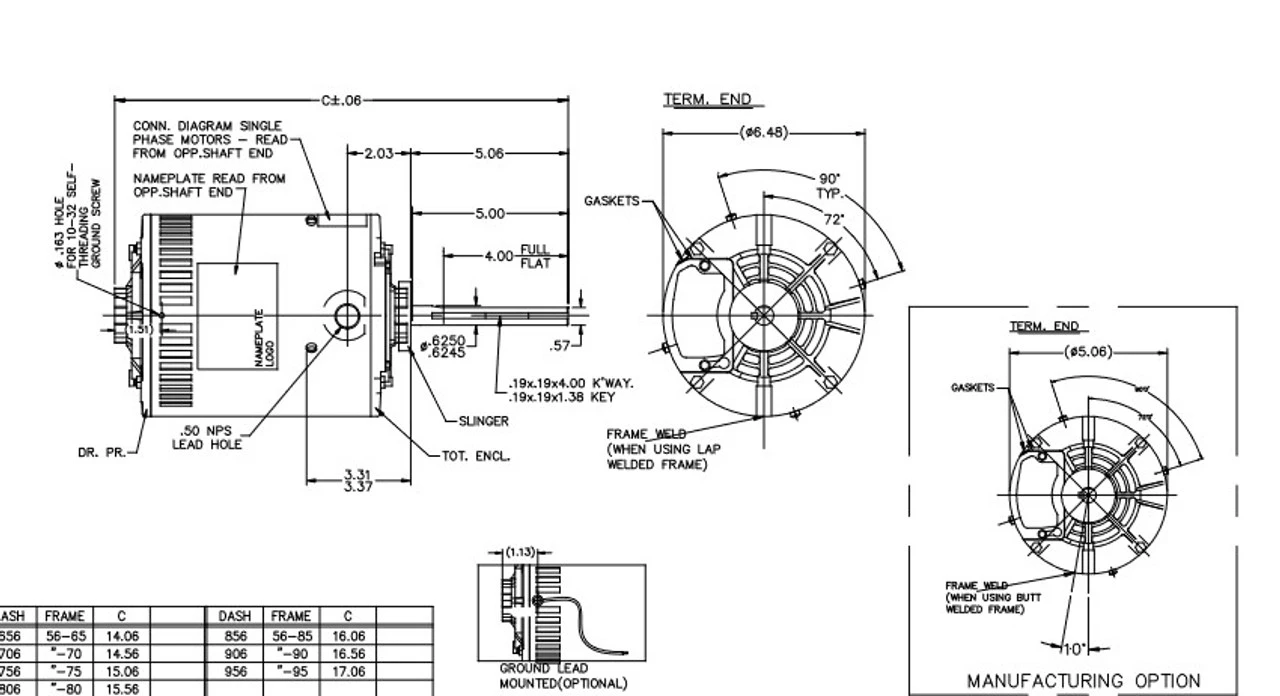

- NEMA 56Y Frame Keyed Shaft 5/8″ Diameter x 5″
- Service Factor = 1.0, Thermal Protection = Automatic
- No Base, Reversible, Ball Bearings, Class H insulation
- 1 Year Manufacture Warranty
Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream. 056T11O5303
