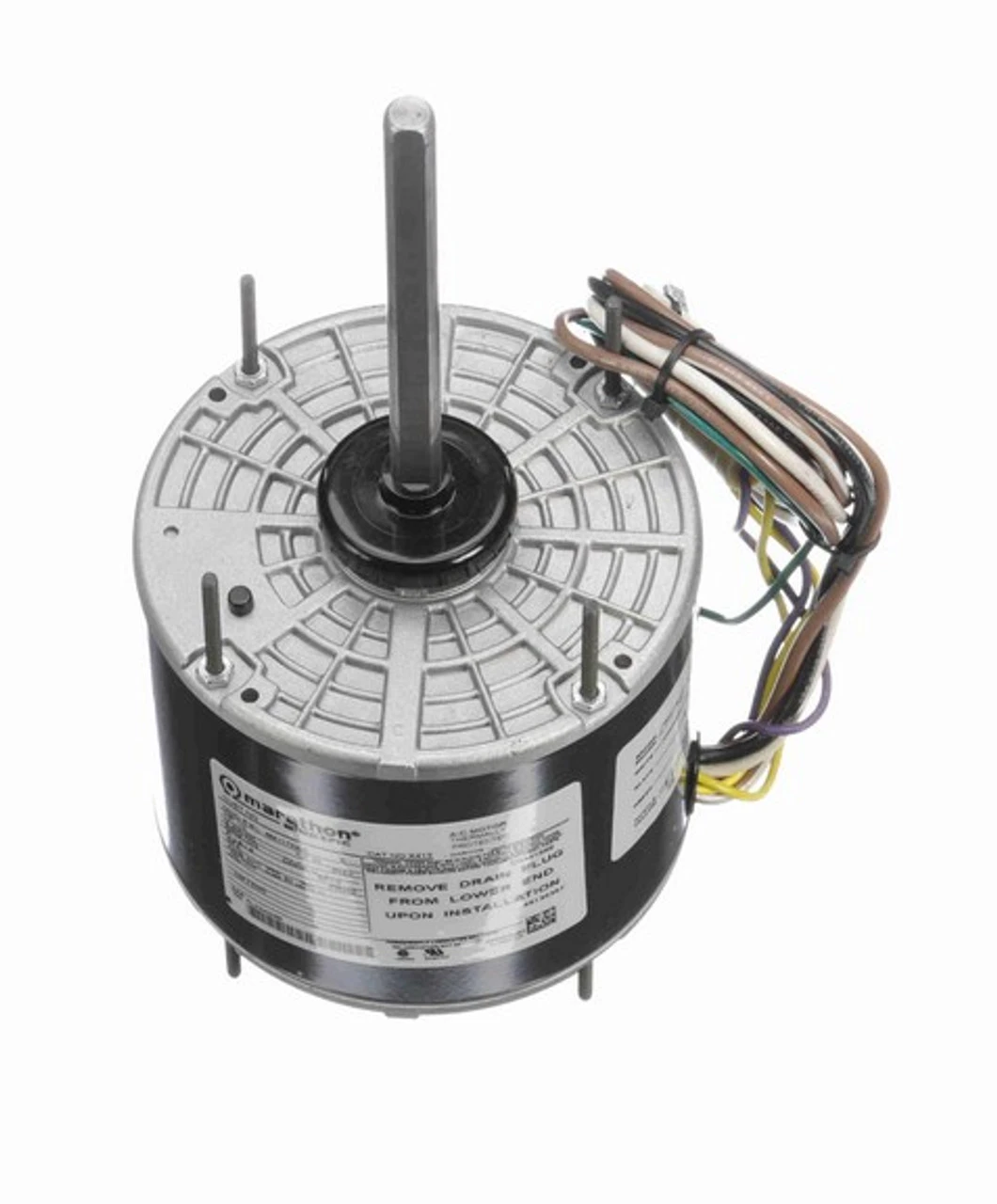

X413 Marathon 1/3 Hp 208-230V 1075 RPM TEAO 48Z Frame Condenser Fan Motor

X413 Marathon 1/3 Hp 208-230V 1075 RPM TEAO 48Z Frame Condenser Fan Motor - Image 2

X413 Marathon 1/3 Hp 208-230V 1075 RPM TEAO 48Z Frame Condenser Fan Motor - Image 3

X413 Marathon 1/3 Hp 208-230V 1075 RPM TEAO 48Z Frame Condenser Fan Motor

Original price was: $131.60.Current price is: $92.12.

SKU: ZWXLY 1698667230 Categories: Air Condenser Fan Motor, HVAC Motors & Draft Inducers Tag: Marathon

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

1/3 hp 1075 RPM, 1.9 amps, 208-230 Volts 60 Hz, Permanent Split Capacitor (PSC)
NEMA 48Z Frame Keyed Shaft 1/2″ Diameter x 6″
Service Factor = 1.0, Thermal Protection = Automatic
No Base, Reversible, Ball Bearings, Class B insulation
Includes 7.5mfd/370VAC Run Capacitor
1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. TEAO = Totally-Enclosed Air-Over so motor must be in air-stream. 048A11T529
