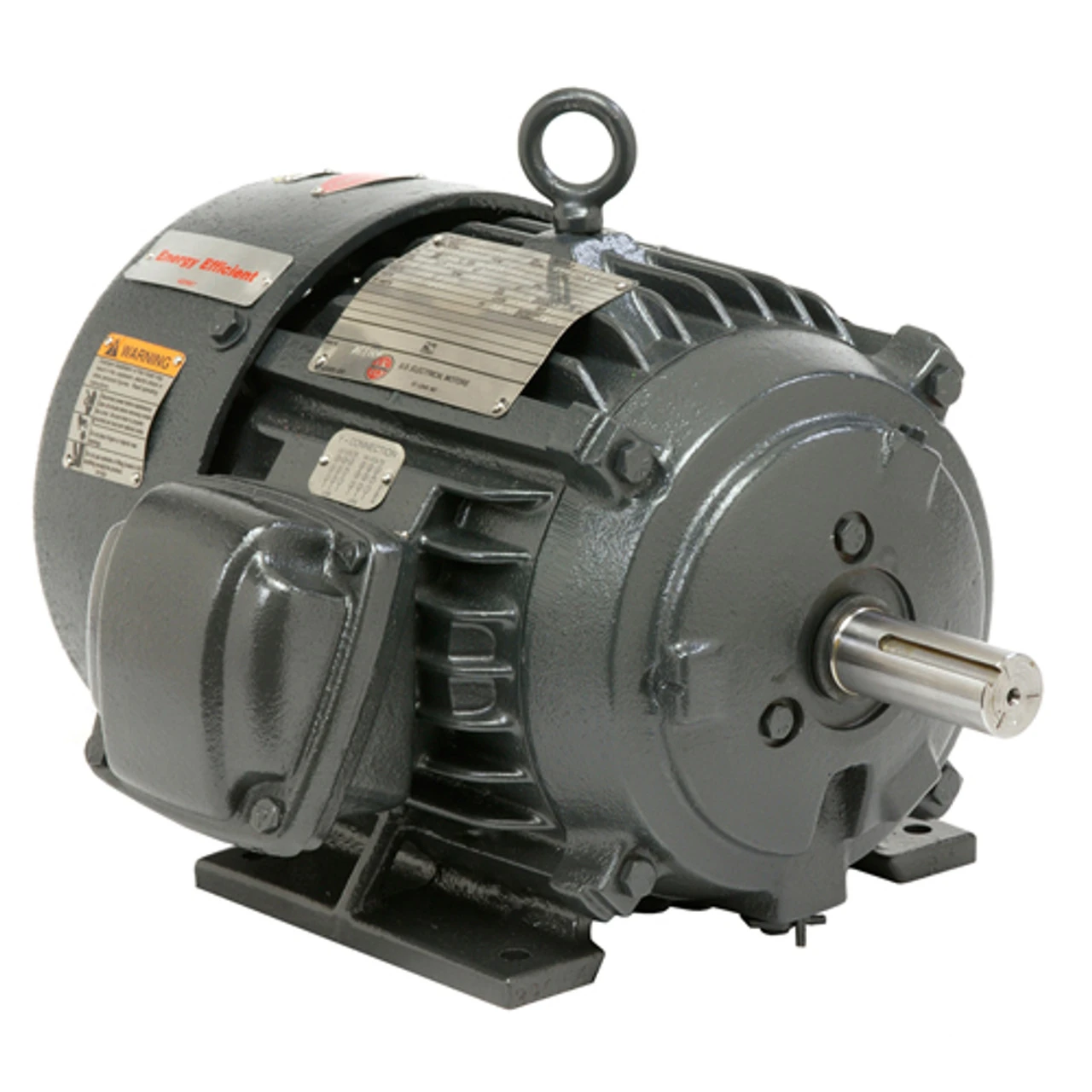

X30P2B Nidec 30 Hp 1800 RPM 286T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor
Original price was: $378.00.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 30 hp 1800 RPM, 69.0/34.0 amps 230/460 Volts 60 Hz Three Phase Motor

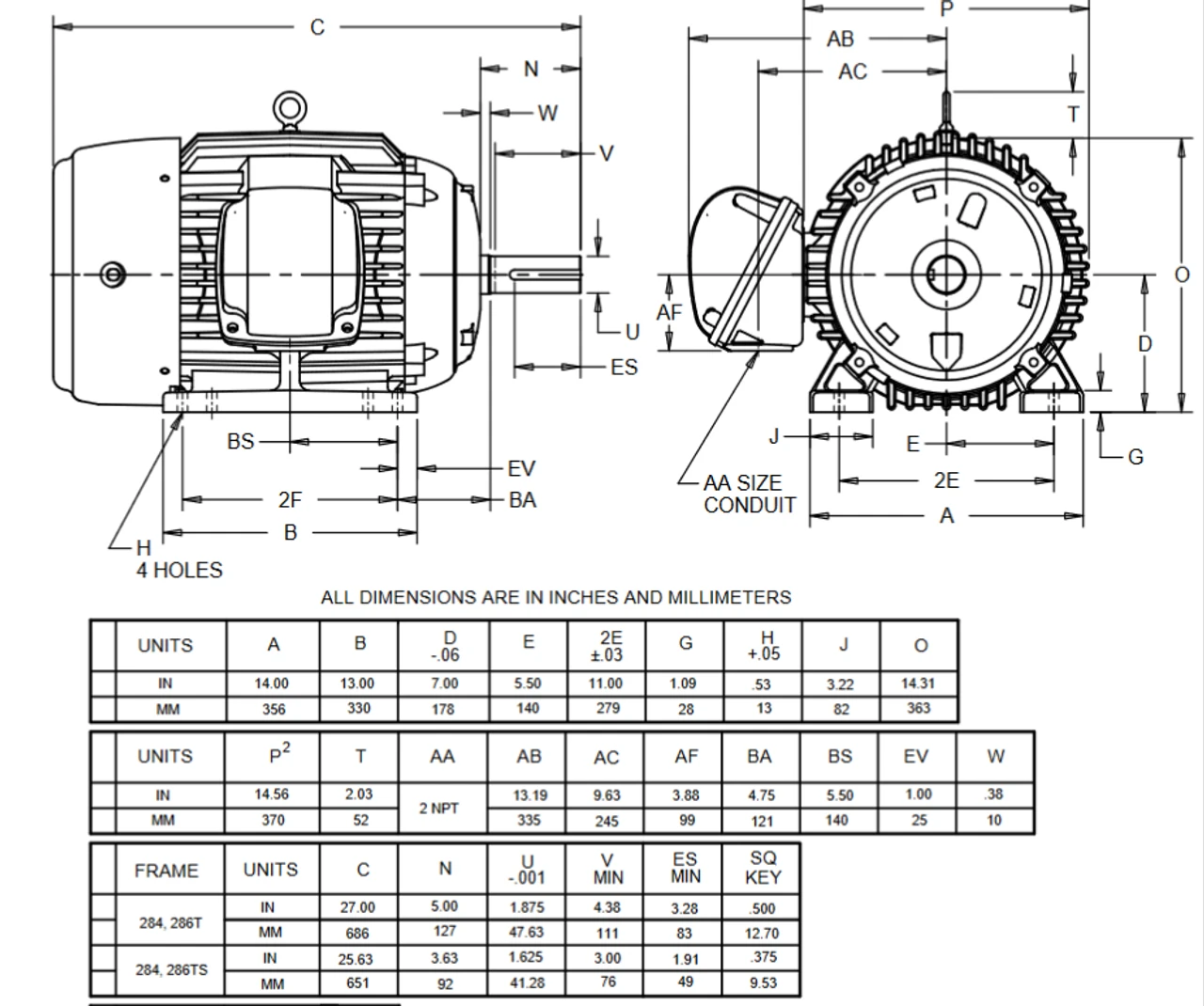

- NEMA 286T Cast Iron frame Keyed Shaft 1 7/8″ Diameter x 4 5/8″
- Service Factor: 1.0, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose Division 1 hazardous location motor for class 1 group CD and class 2 group FG. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. CS08
