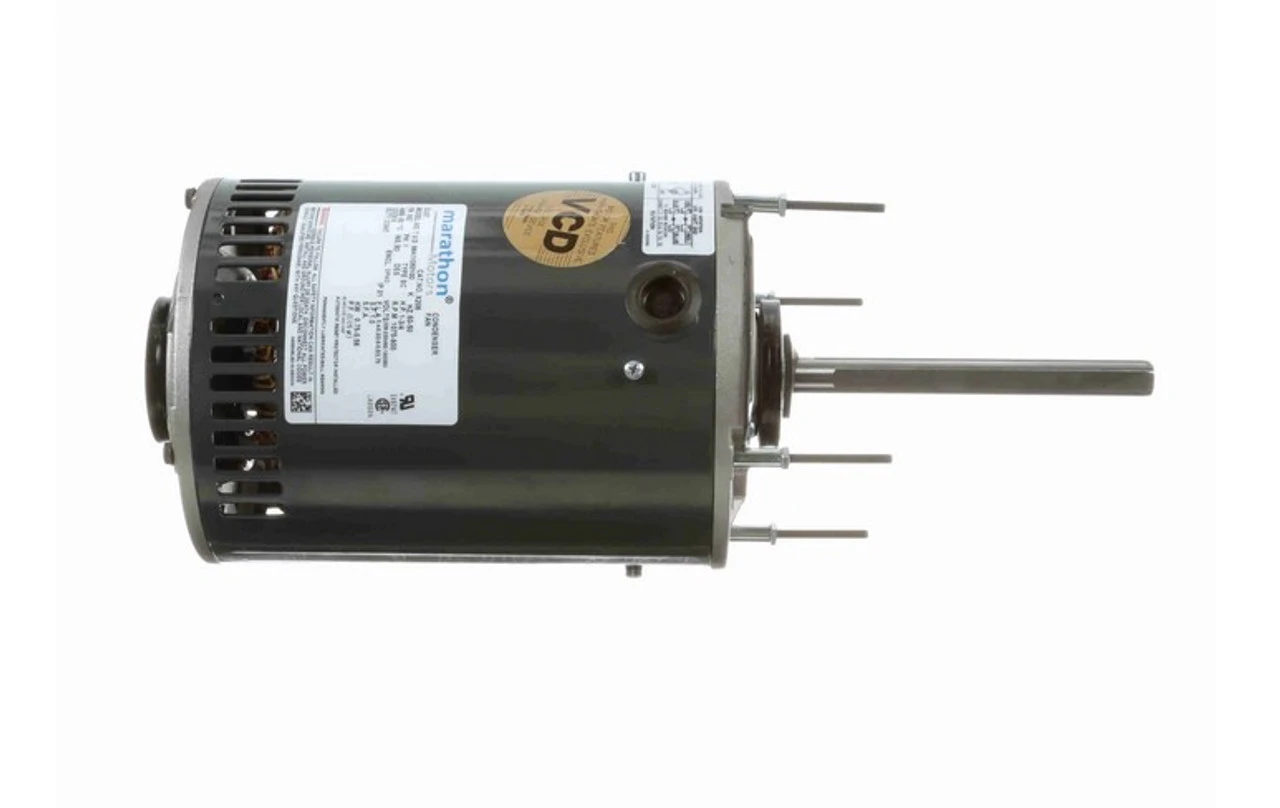

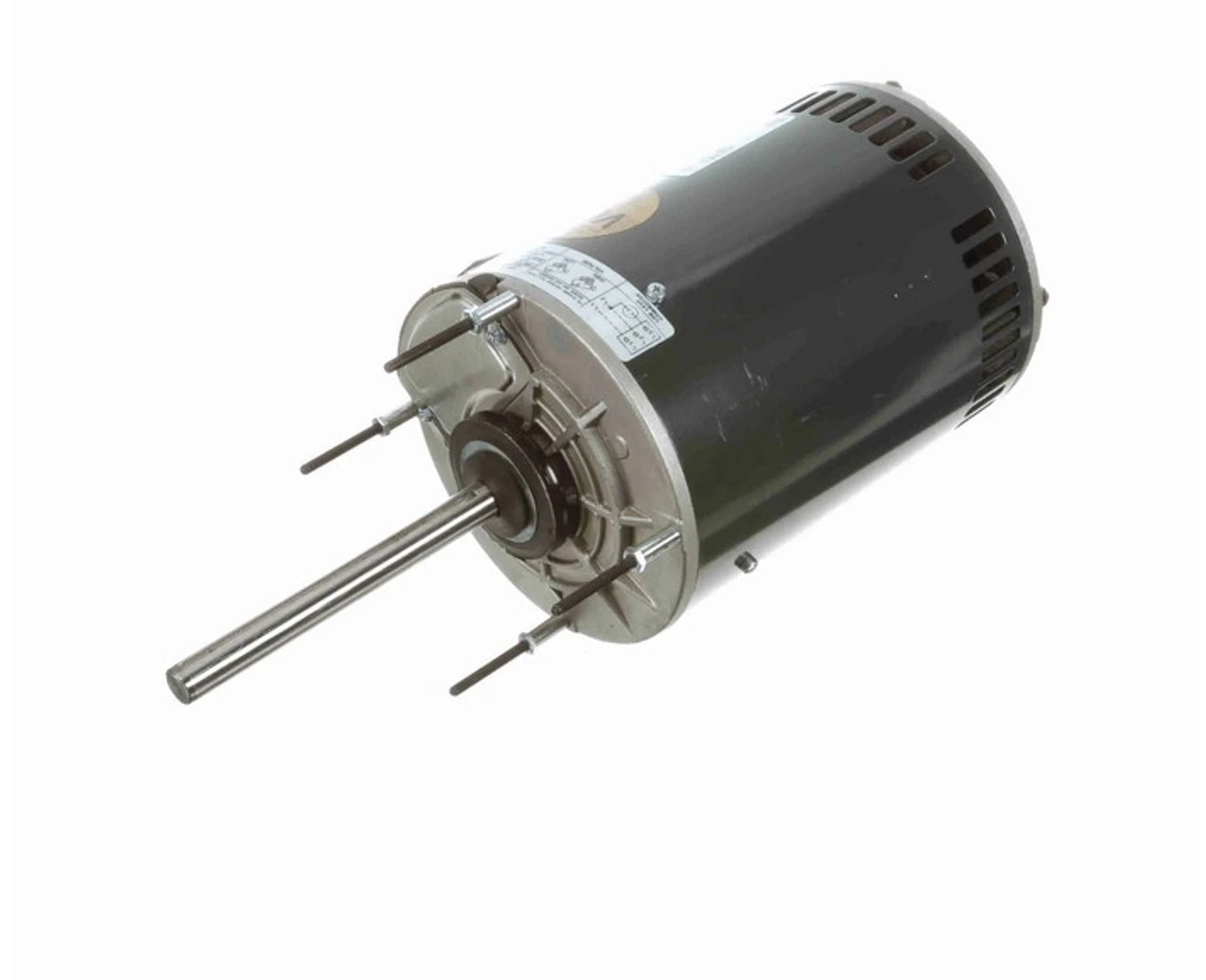

X206 Marathon 1 Hp 208-230/460V 1075 RPM OPAO (no Base) 56Z Frame Condenser Fan Motor
Original price was: $373.00.$99.99Current price is: $99.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 hp 1075 RPM, 5.4-5.2/2.6 amps, 208-230/460 Volts 60 Hz, Permanent Split Capacitor (PSC)

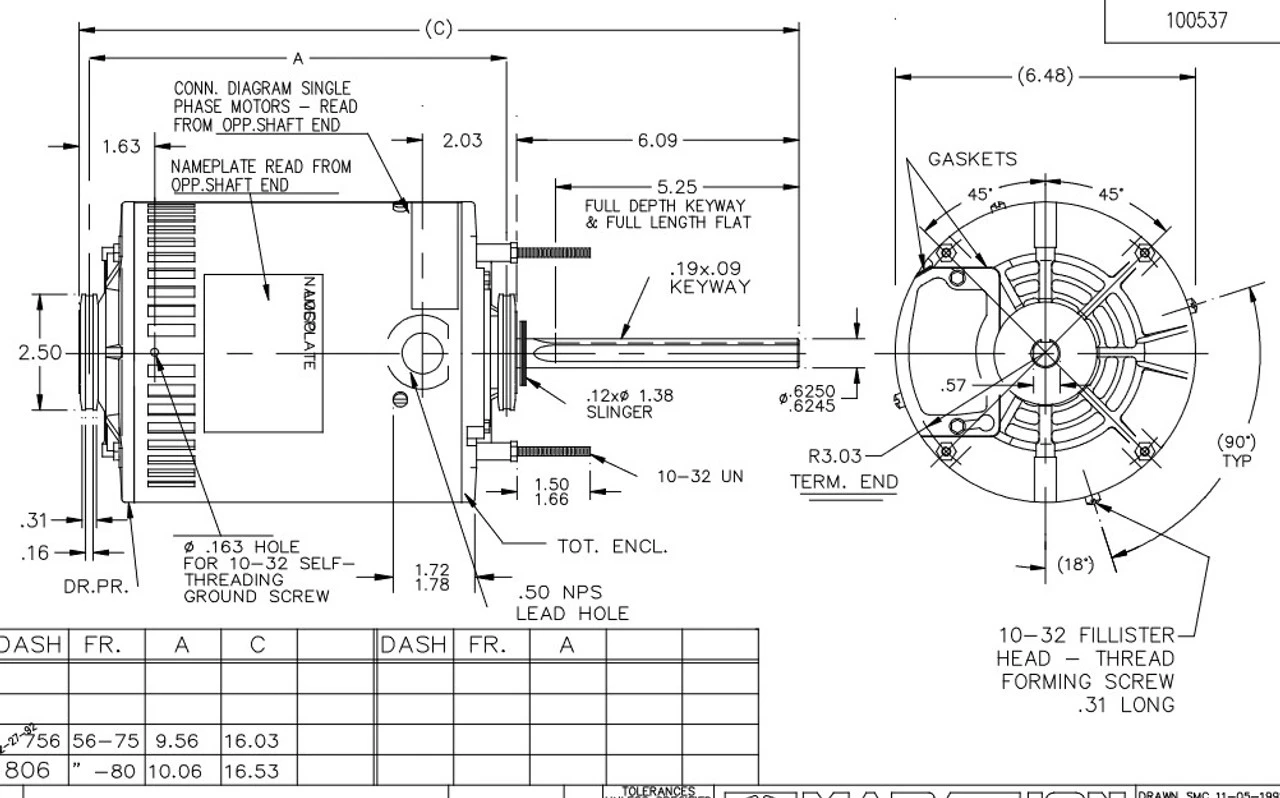

- NEMA 56Z Frame Keyed Shaft 5/8″ Diameter x 6″
- Service Factor = 1.0, Thermal Protection = Automatic
- No Base, Reversible, Ball Bearings, Class B insulation
- 1 Year Manufacture Warranty
Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream. 056A11O5310
