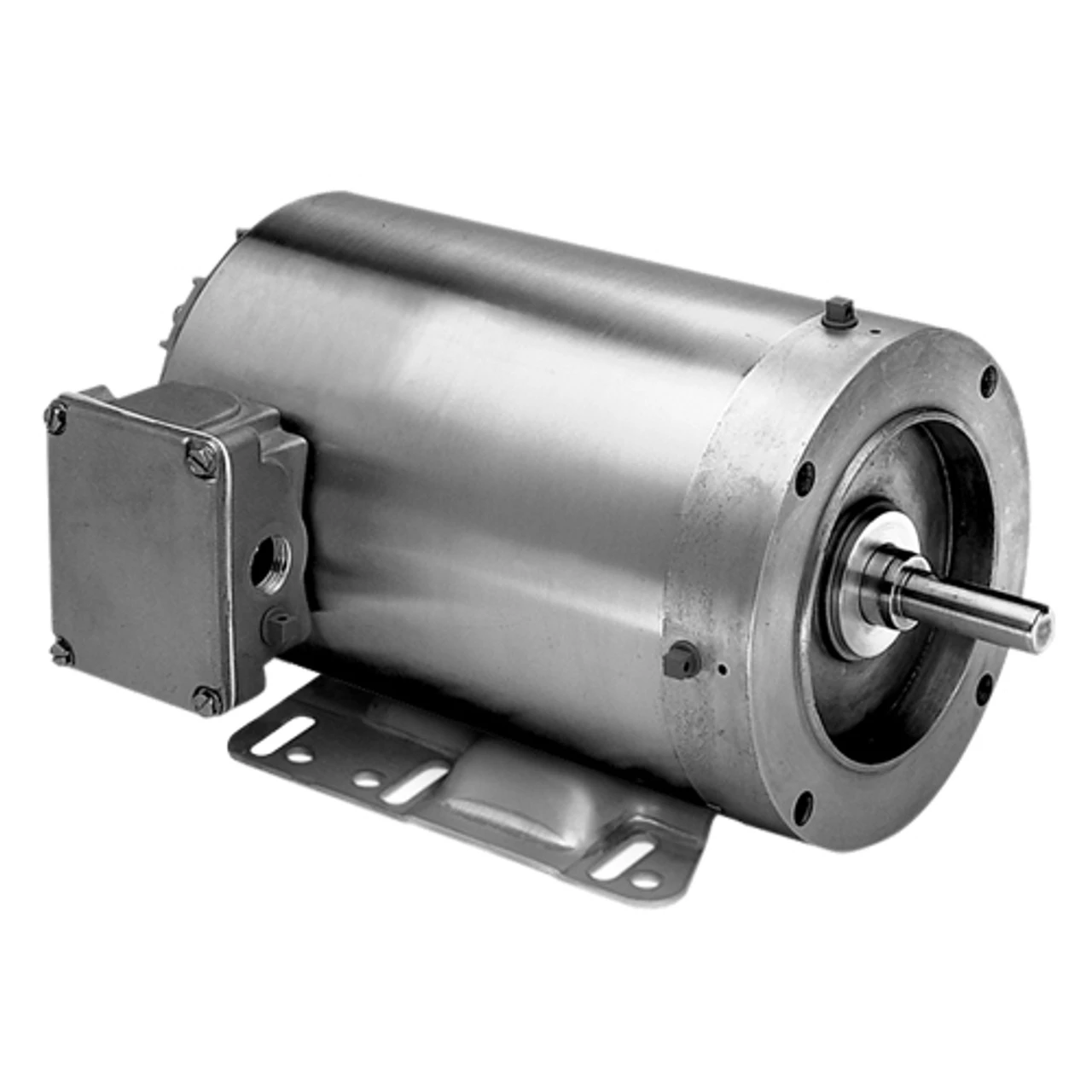

WDP1P2AHC Nidec 1 Hp 1800 RPM 56HC Frame (Rigid Base) 208-230/460V TENV 3-Phase Washdown Motor
Original price was: $352.00.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 hp 1800 RPM, 3.5-3.4/1.7 amps 208-230/460 Volts 60 Hz Three Phase Motor
- NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Paint-Free wash-down motor for food and pharmaceutical applications. All stainless steel except for the side box. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. P063TLE1463015B
