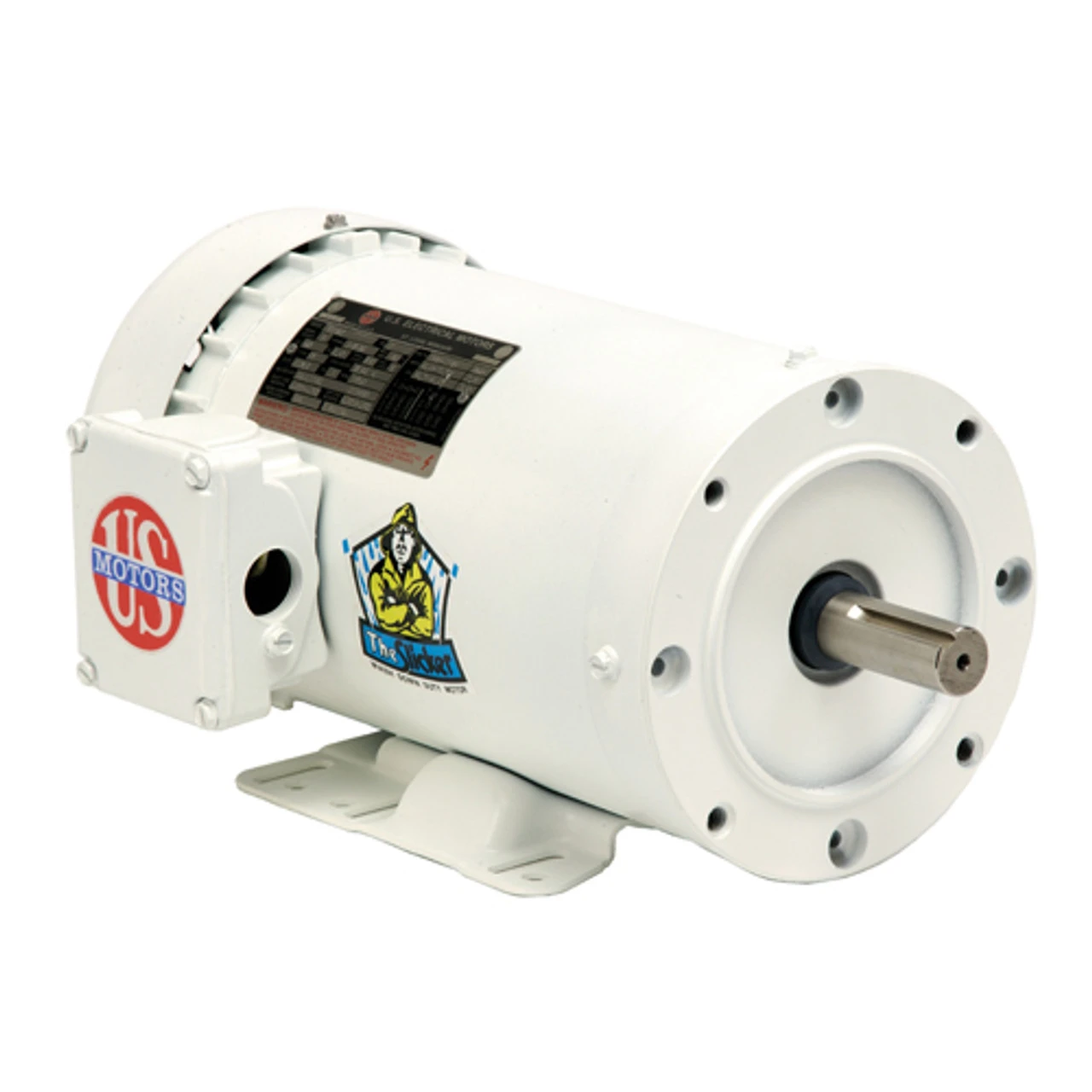

WD3P1DC Nidec 3 Hp 3600 RPM 182TC Frame (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor
Original price was: $356.00.$99.99Current price is: $99.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 3 hp 3600 RPM, 8.1-7.4/3.7 amps 208-230/460 Volts 60 Hz Three Phase Motor
- NEMA 182TC Rolled Steel Frame, Keyed Shaft 1 1/8″ Diameter x 2 3/4″
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Easy cleaning painted wash-down motor for food and pharmaceutical applications. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. FA01
