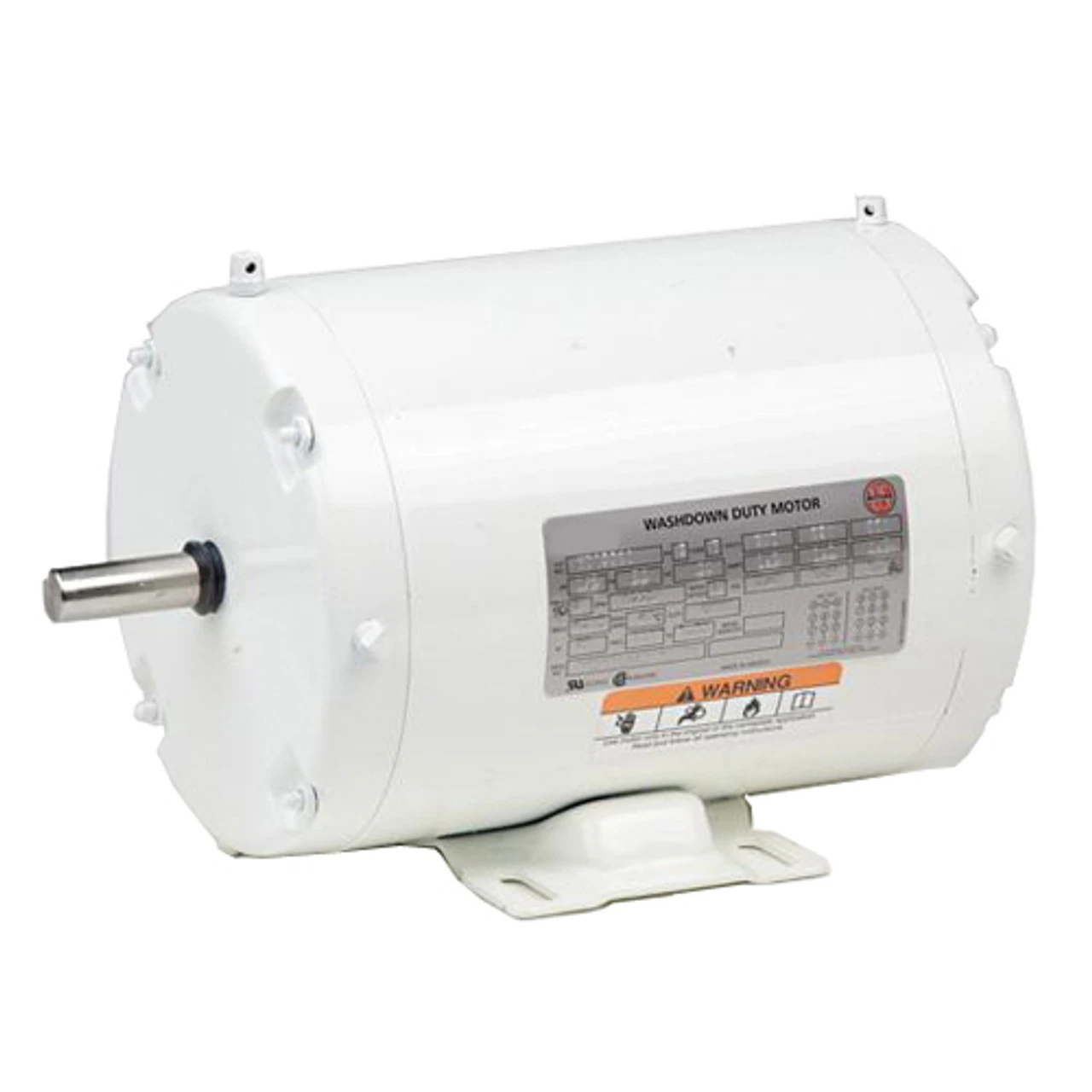

WD34S2A Nidec 3/4 Hp 1800 RPM 56 Frame (Rigid Base) 208-230/460V TENV Washdown 3-Phase Motor
Original price was: $390.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 3/4 hp 1800 RPM, 2.6-2.4/1.2 amps 208-230/460 Volts 50/60 Hz Three Phase Motor
- NEMA 56 Rolled Steel Frame with Cast Aluminum End Bells, Stainless Steel Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Painted washdown motor for use in food processing applications where frequent cleaning is required. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. P063GBD4443015B
