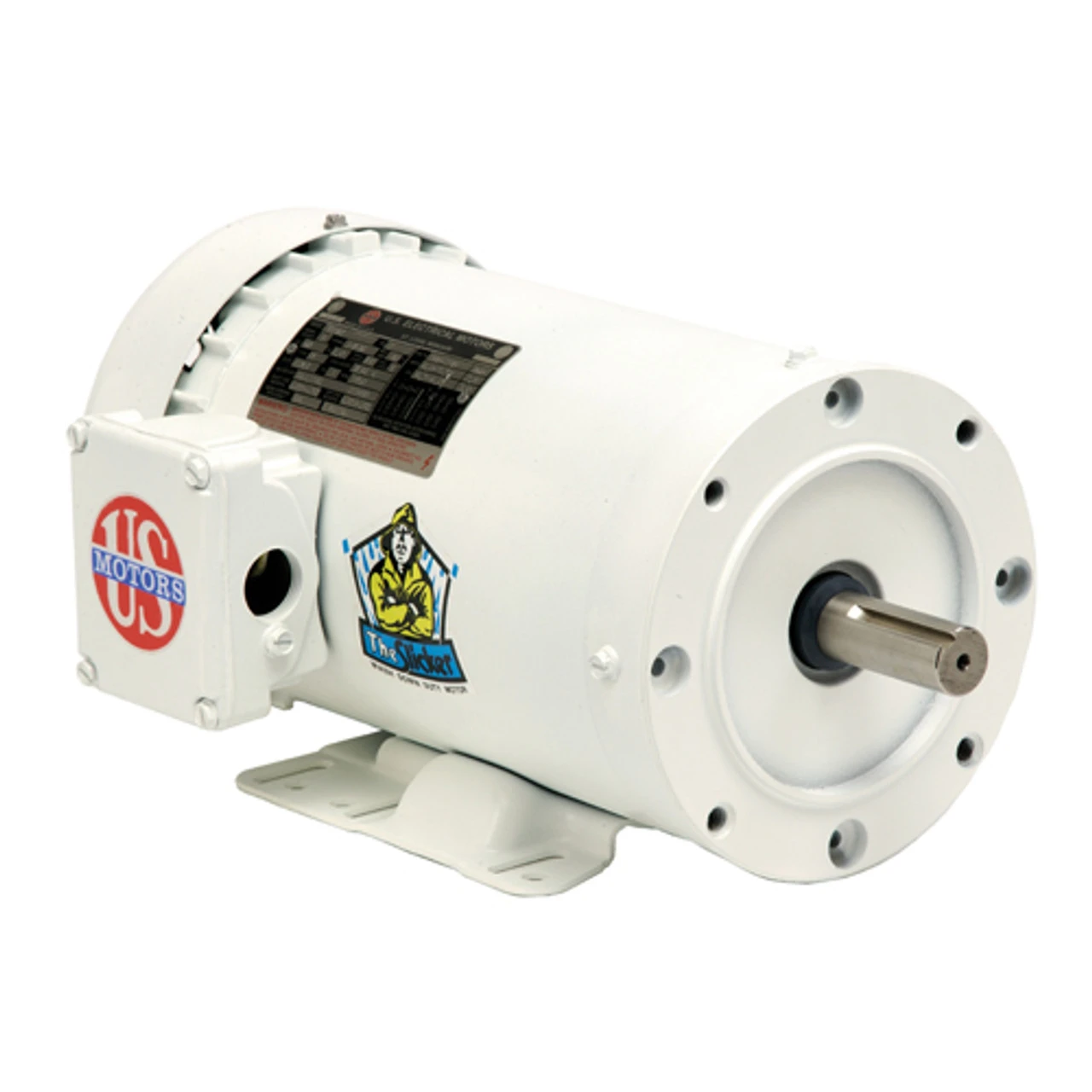

WD10P2DC Nidec 10 Hp 1800 RPM 215TC Frame (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor
Original price was: $323.00.$99.99Current price is: $99.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 10 hp 1800 RPM, 26.5-23.9/11.9 amps 208-230/460 Volts 60 Hz Three Phase Motor

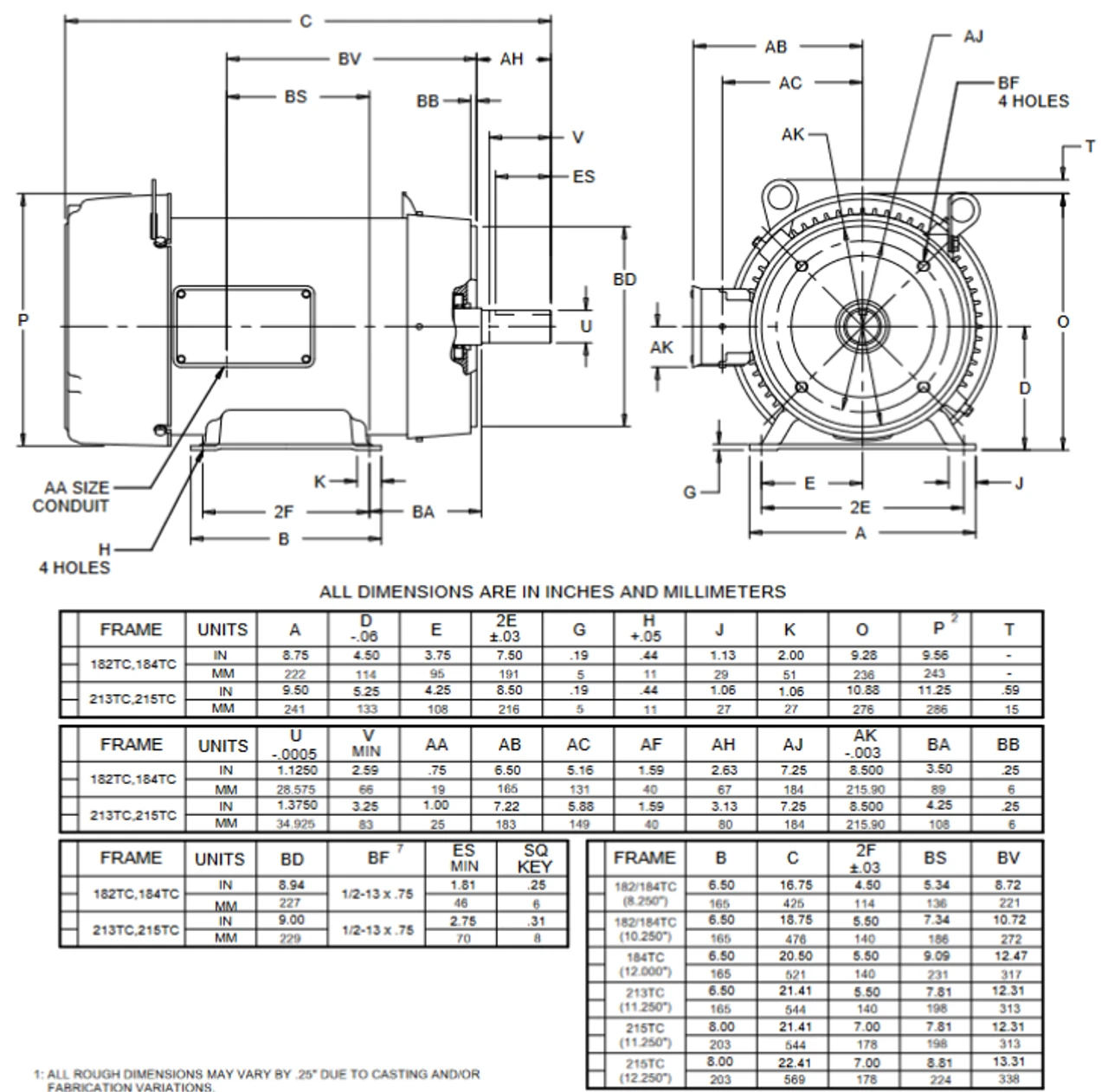

- NEMA 215TC Rolled Steel Frame, Keyed Shaft 1 3/8″ Diameter x 3 3/8″
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Easy cleaning painted wash-down motor for food and pharmaceutical applications. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. DD61
