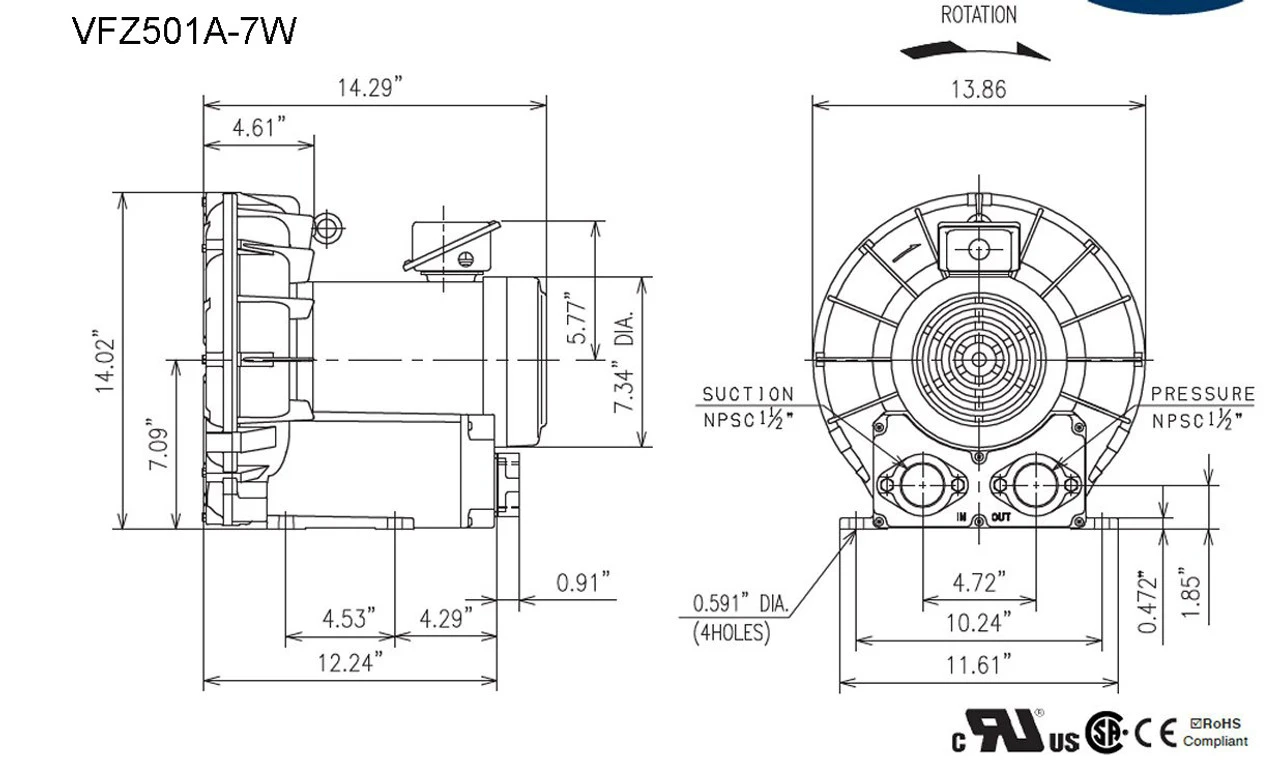

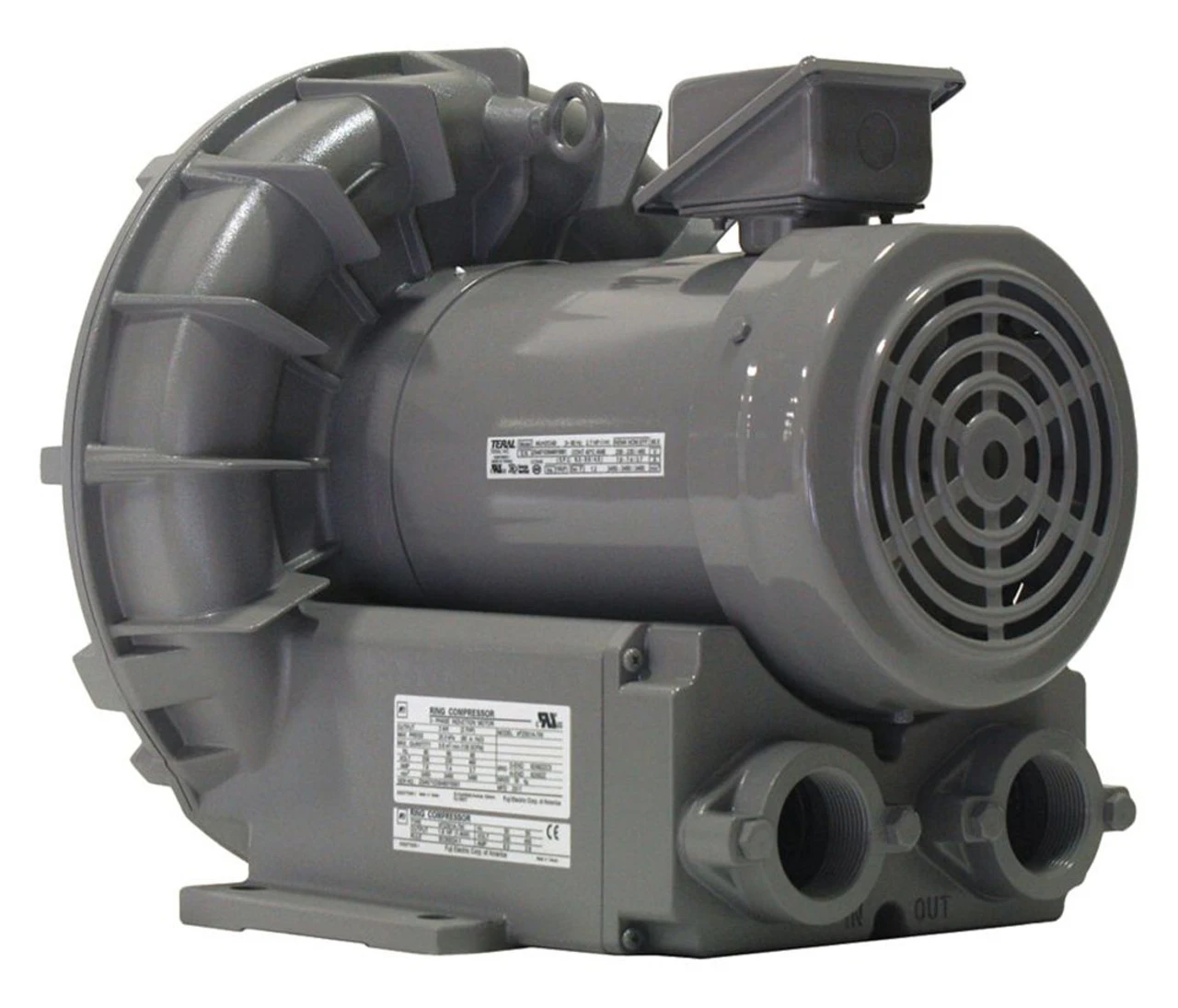

VFZ501A-7W Fuji Regenerative Blower 2.7 Hp, 208-230/460V

• 2.7 hp 208-230/460V 50/60hz.
• 7.8-7.4/3.7 amps
• 3 Phase
• Aluminum Alloy Housing
• 1.5″ (F) NPT Inlet Size
• 1 Year Manufacture Warranty

The VFZ Series are single-stage ring compressors with a maximum pressure of 80 in. H2O, a maximum vacuum of 78 in. H2O and a maximum air flow pressure of 135 SCFM. Motors are direct drive from 1 HP to 15 HP. Voltages are available in 115 single phase, 230 single phase, 230/460 3-phase dependent upon motor size. All units are provided with threaded flanges.

Designed for expanded flow and pressure, these industrial-duty, oilless air blowers can be used for pressure or vacuum. They provide air flow without pulsation, operate at low noise levels, and are dynamically balanced to eliminate vibration. Feature dustproof shaft seal and Class B NEMA insulation. Equipped with continuous duty TEFC motors that are built as a single unit no gears, belts, motor bushings, or sliding valves. Aluminum alloy impeller, mounting base, and housing  Uses: For original equipment or upgraded performance. Pneumatic air tube conveying systems, vacuum cleaning systems, vacuum lifting, vacuum hold down, vacuum transport, bottle filling stations, printing presses, screen printing, air cushion tables, drying systems, weld fume extraction, textile machinery, dental equipment, waste and water fish pond aeration, aquarium aeration, aeration plating tanks, and air knife systems.

Replaces VFC500A-7W, Dayton 4Z753. Dayton 53WC09
