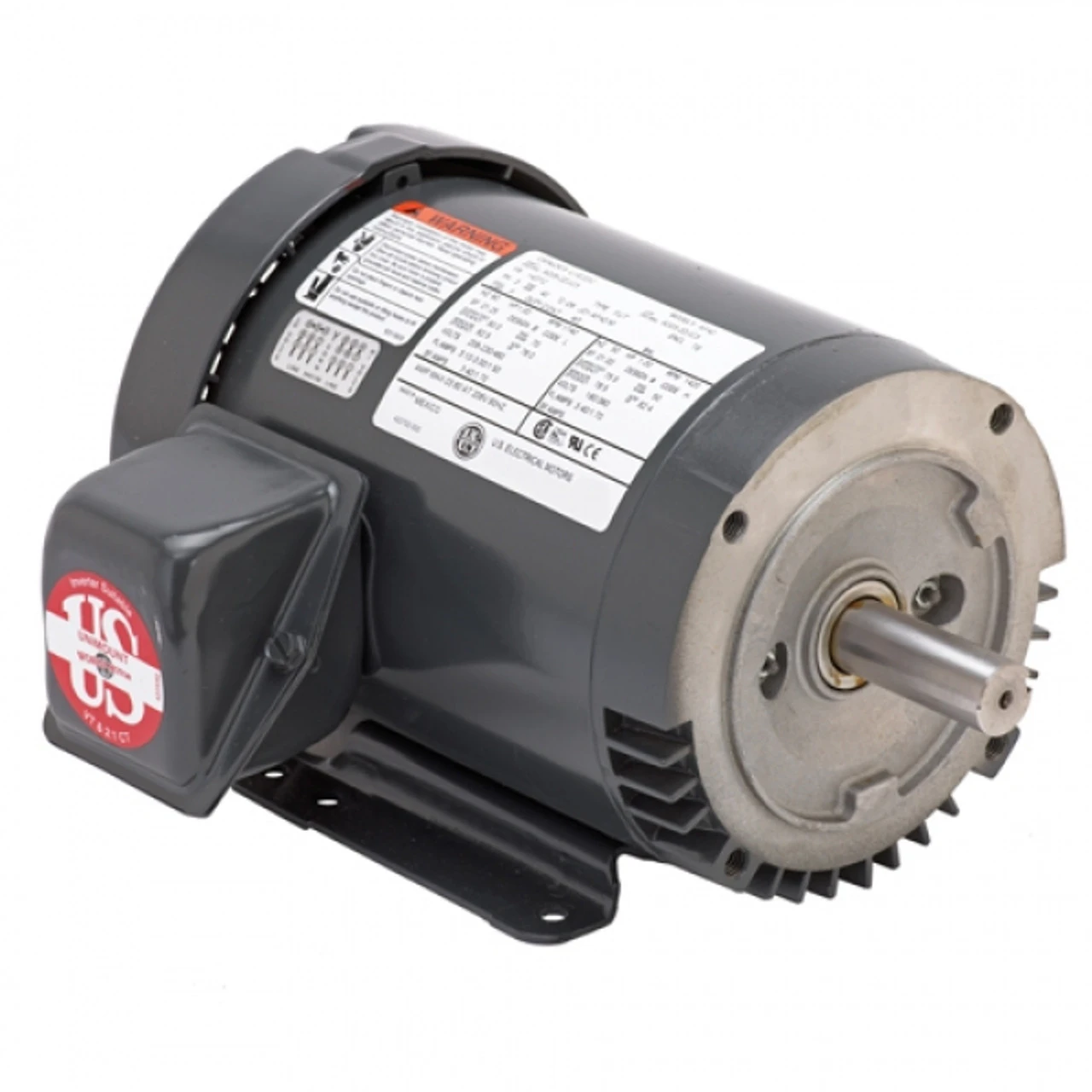

UN1V2AFC Nidec 1 Hp 1800 RPM 56C (Rigid Base) 208-230/460V TENV Inverter-Duty 3-Phase Motor
Original price was: $370.64.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 hp 1800 RPM, 3.5-3.4/1.7 amps 208-230/460 Volts 60 Hz Three Phase Motor

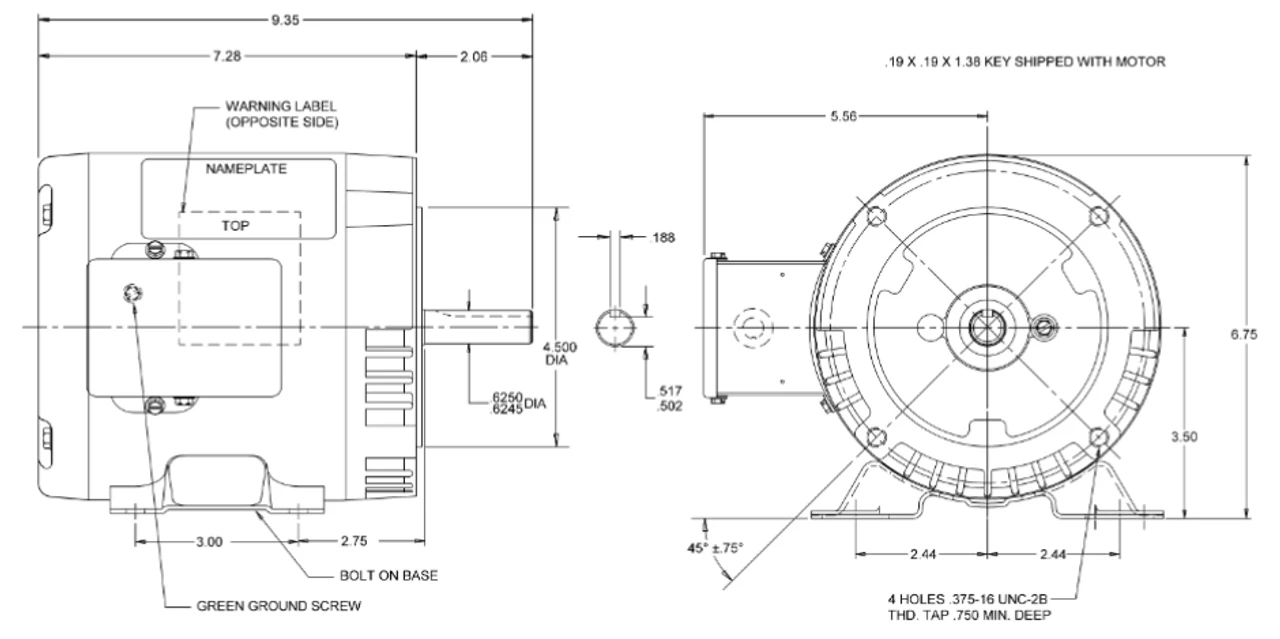

- NEMA 56C Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Speed controllable C-Face motor for material handling, cranes and machine tools. 5:1 speed range at constant torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. J063BGL0137015B
