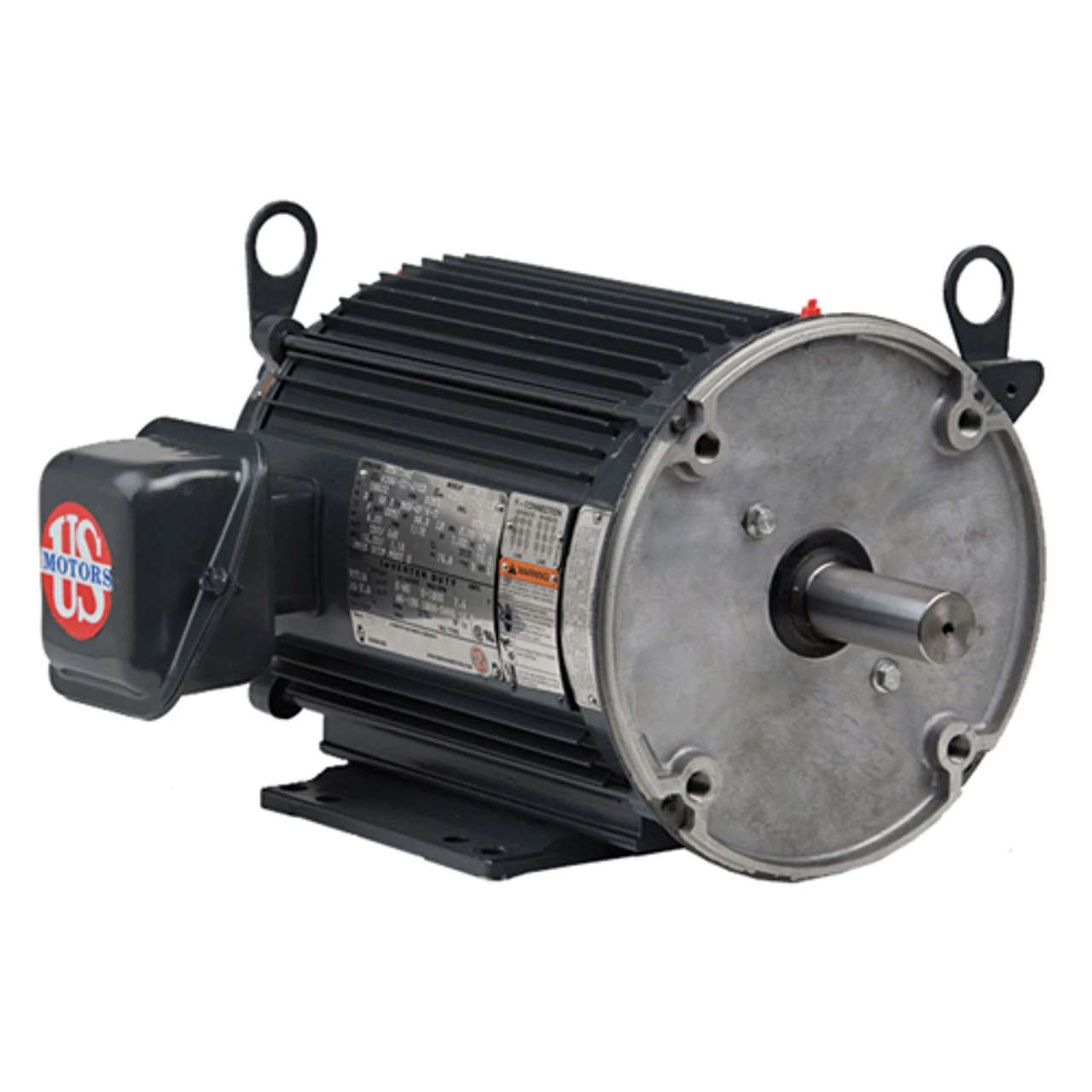

UN1T2BC Nidec 1 Hp 1800 RPM 145TC (Rigid Base) 230/460V TENV Vector-Duty 3-Phase Motor
Original price was: $338.00.$99.99Current price is: $99.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 hp 1800 RPM, 3.2/1.6 amps 230/460 Volts 60 Hz Three Phase Motor
- NEMA 145TC Rolled Steel Frame, Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.0 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Speed controllable C-Face motor for material handling, cranes and machine tools. 5000:1 constant torque from 0 to nominal motor rpm. NEMA design A. Encoder and brake provisions. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. FD93
