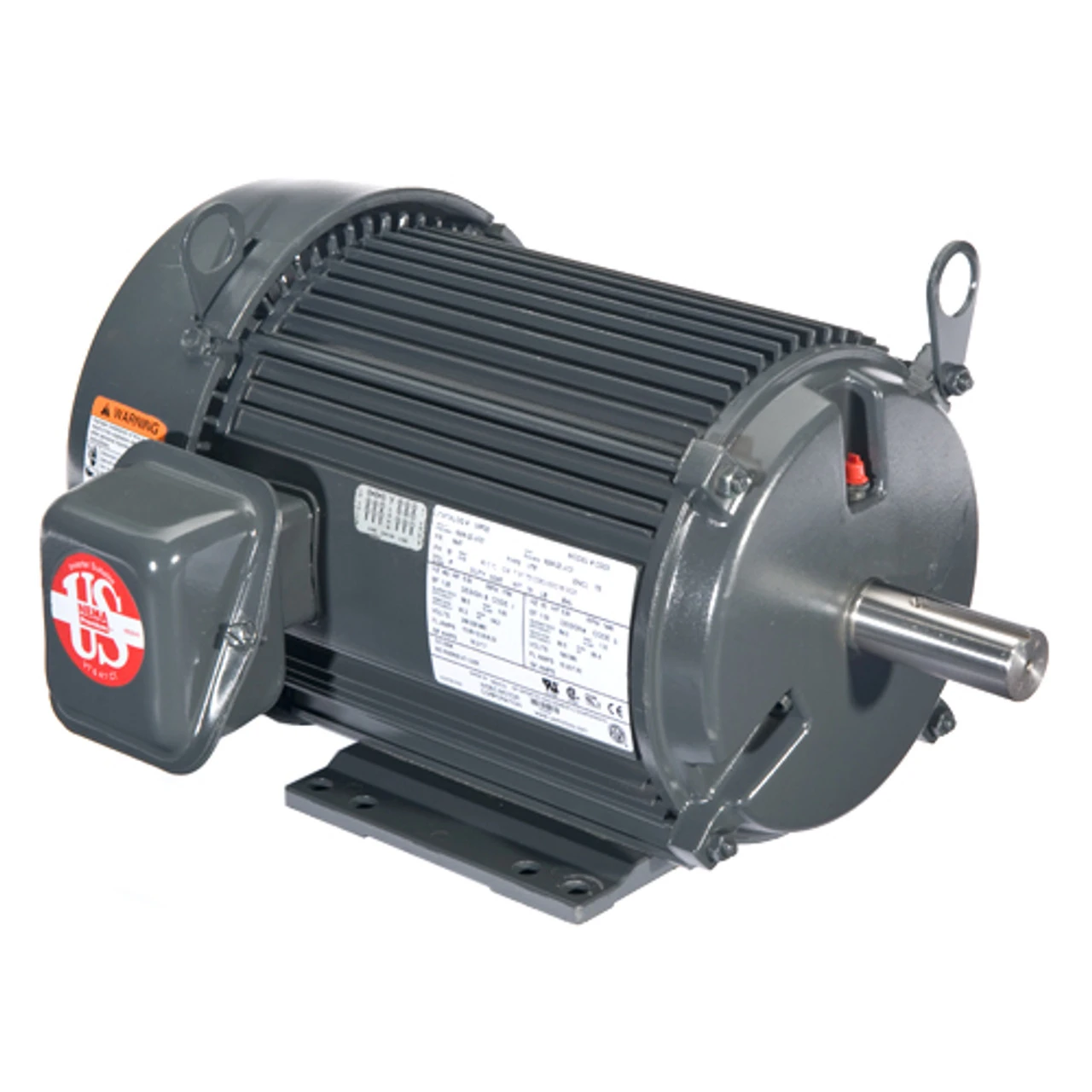

U7V1B Nidec 7 1/2 Hp 3600 RPM 213T (Rigid Base) 230/460V TEFC Inverter-Duty 3-Phase Motor
Original price was: $372.00.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 7 1/2 hp 3600 RPM, 17.9/9.0 amps 230/460 Volts 60 Hz Three Phase Motor

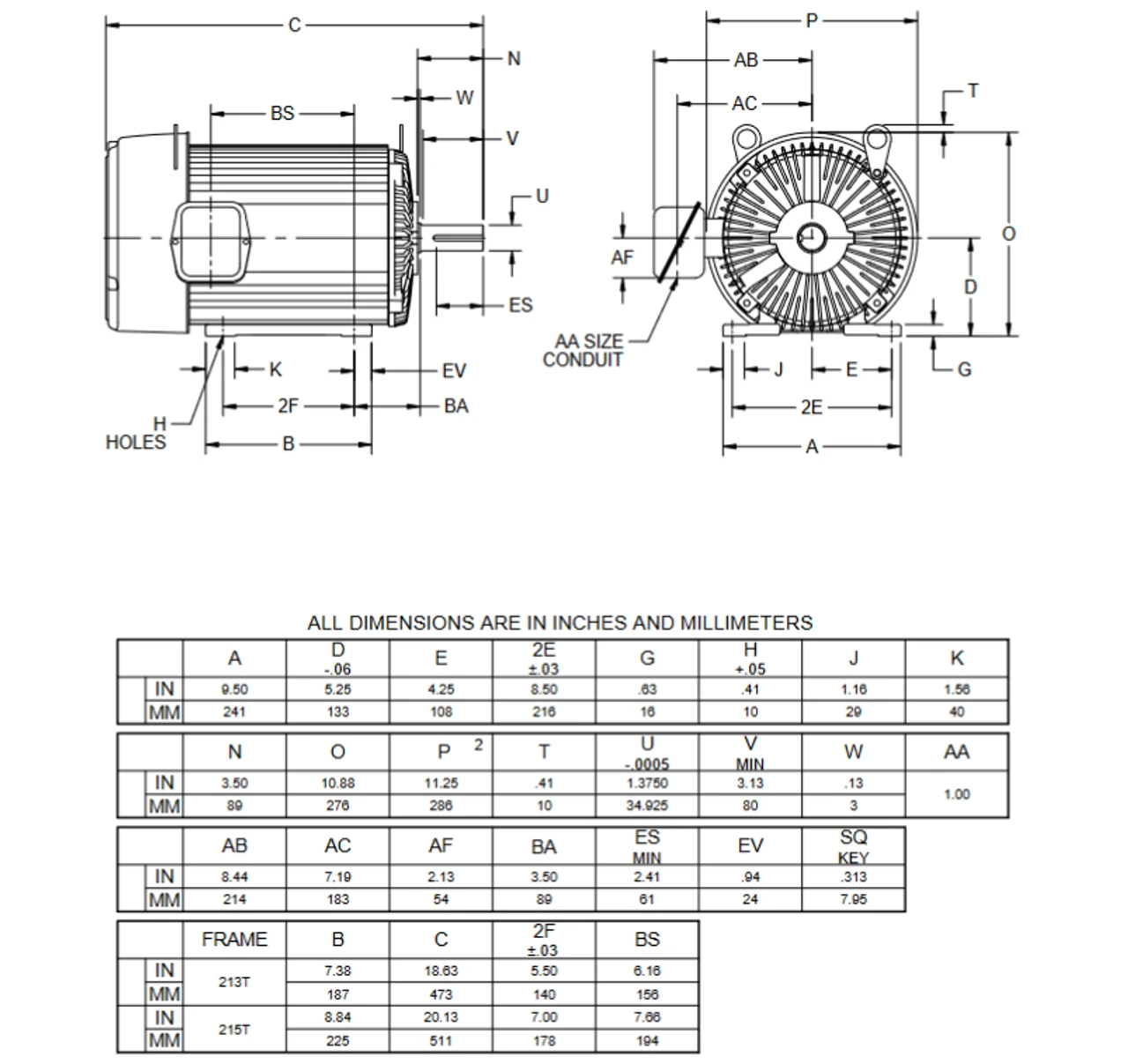

- NEMA 213T Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 3/8″ Diameter x 3 3/8″
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Speed controllable motor for material handling, cranes and machine tools. 5:1 speed range at constant torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. HA48
