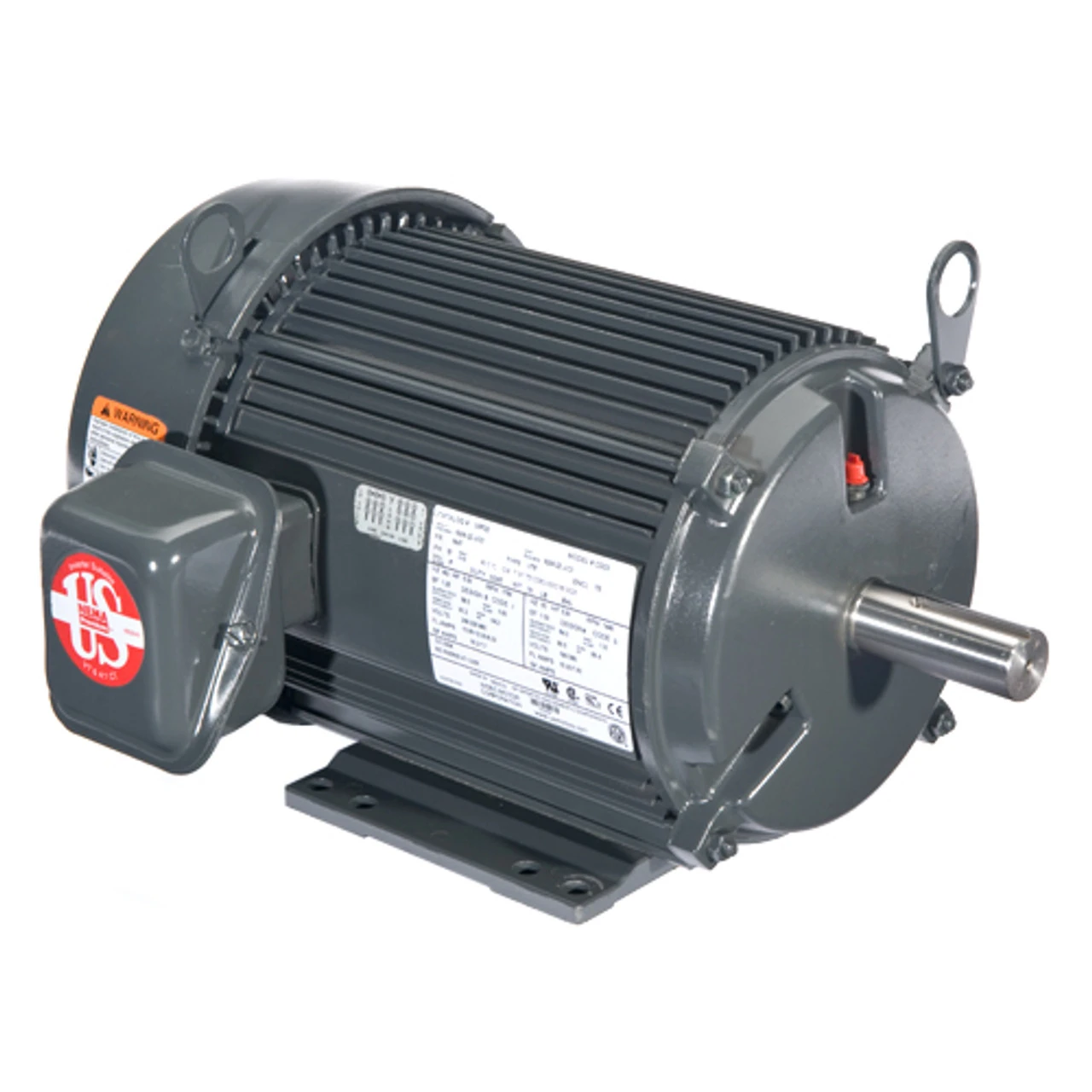

U5D10C Nidec 5 Hp 1800/900 RPM (2 Speed) 215T Frame 460V TEFC Constant-Torque 3-Phase Electric Motor
Original price was: $324.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 5 hp 1800/900 RPM (2 speed), 6.7 amps 460 Volts 60 Hz Constant Torque Three Phase Motor

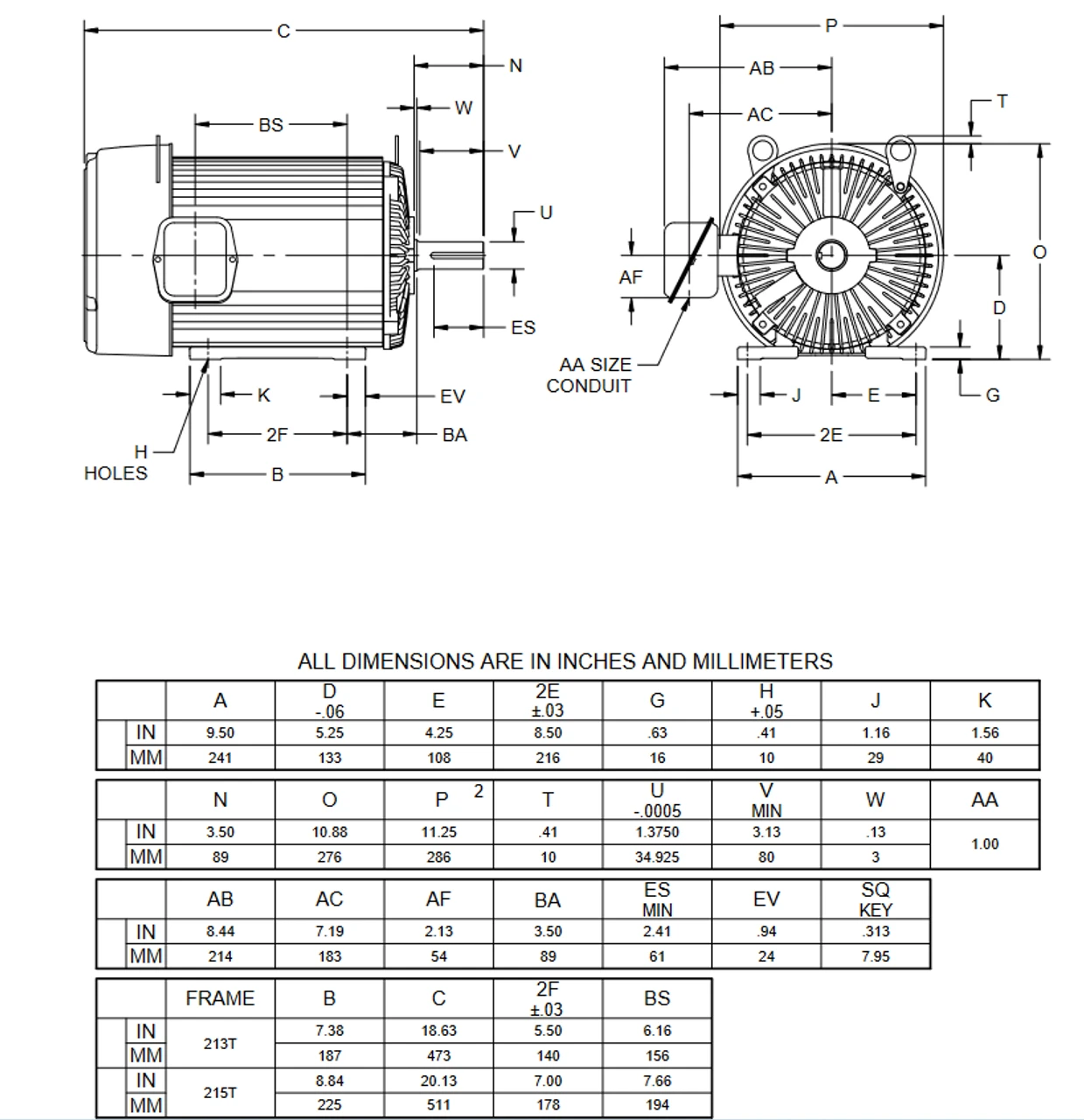

- NEMA 215T frame Keyed Shaft 1 3/8″ Diameter x 3 3/8″
- Service Factor: 1.25, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
This 3-phase, two winding motor is designed for use in 2-speed applications requiring constant shaft torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. C734
