U3P1GF Nidec 3 Hp 3600 RPM 145T Frame 575V TEFC 3-Phase Electric Motor
Original price was: $309.00.$95.99Current price is: $95.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 3 hp 3600 RPM, 2.9 amps 575 Volts 50/60 Hz Three Phase Motor

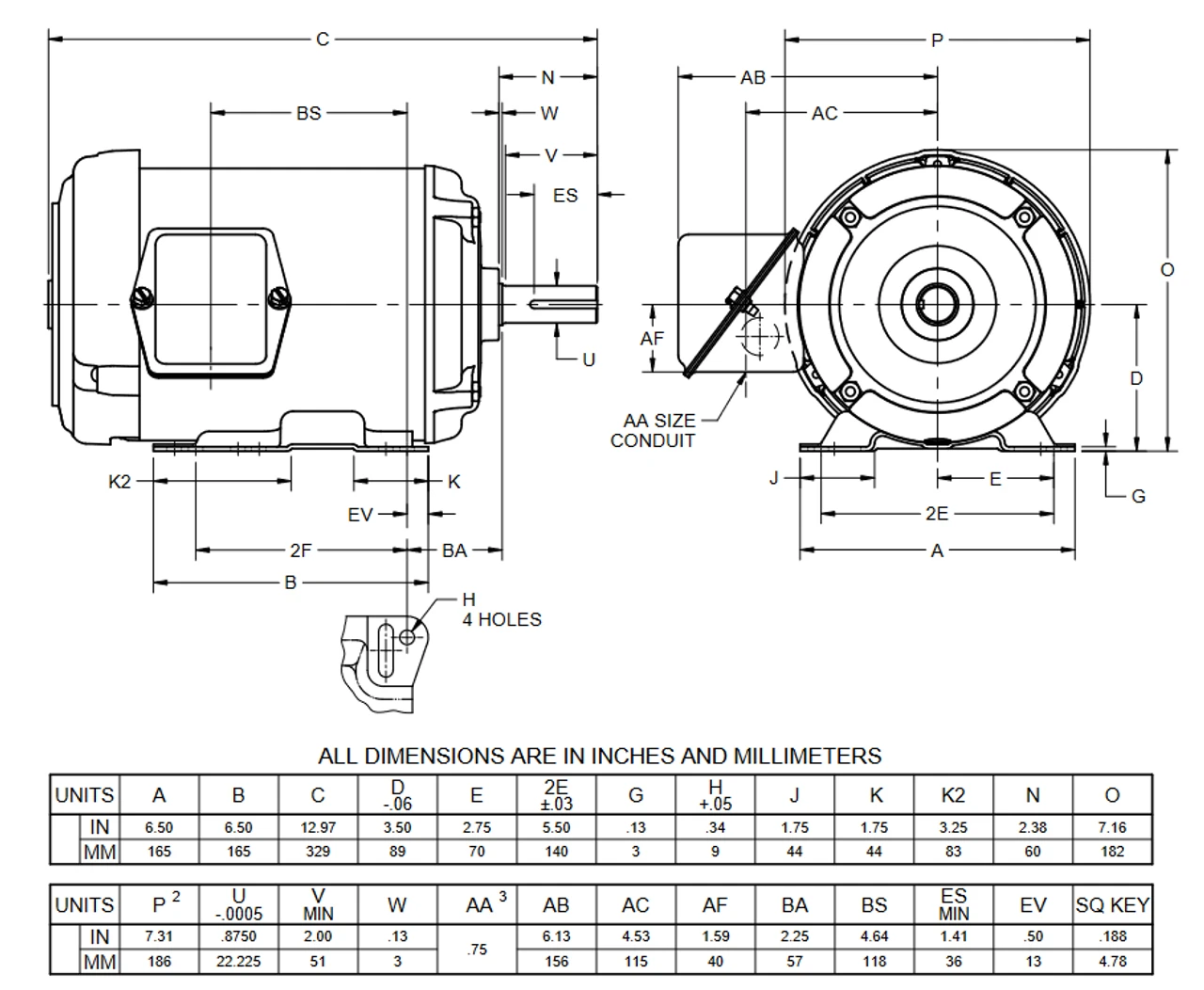

- NEMA 145T frame Keyed Shaft 7/8″ Diameter x 2 1/4″
- Service Factor: 1.25, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. FD77
