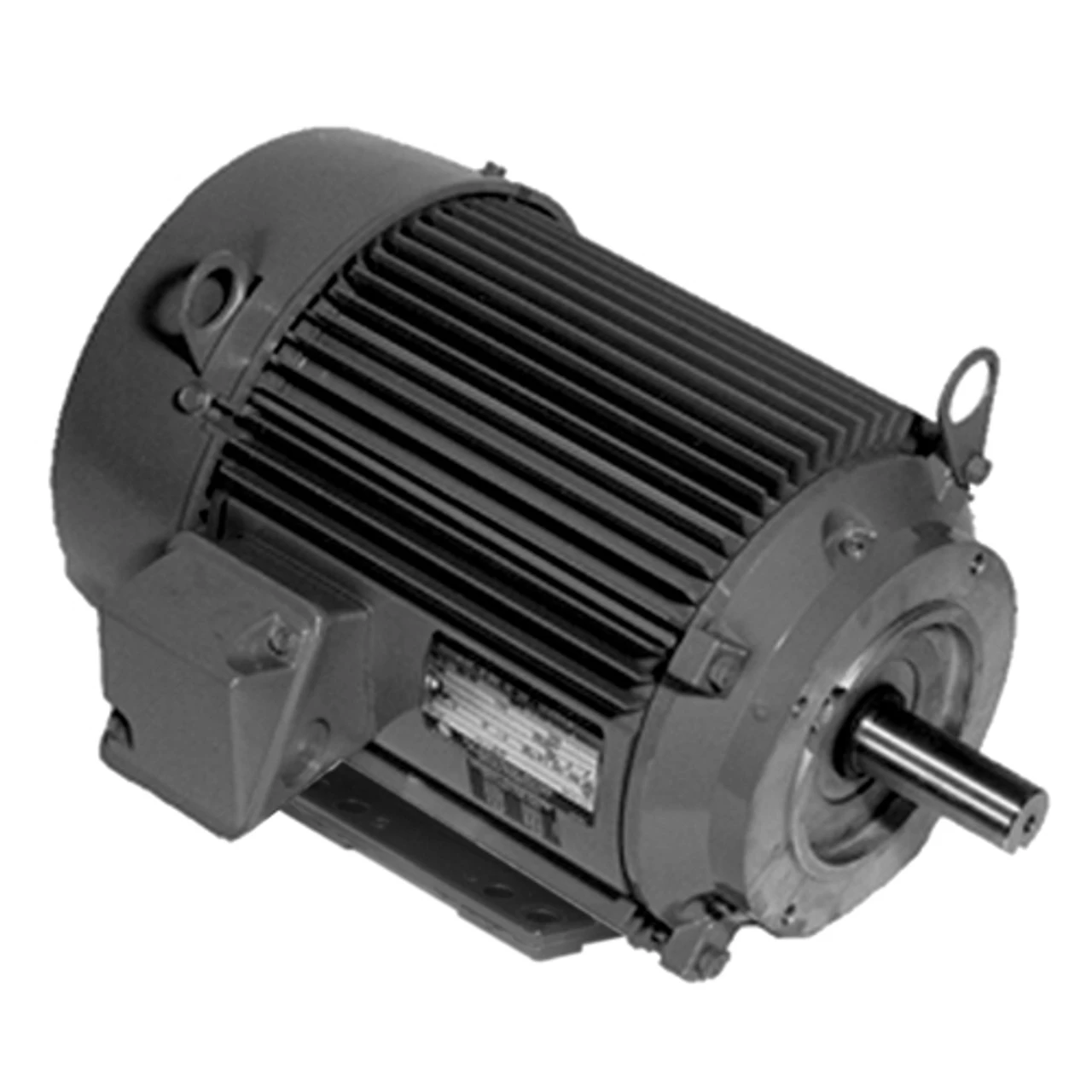

U32P3GC Nidec 1 1/2 Hp 1200 RPM 182TC Frame 575V TEFC 3-Phase Electric Motor
Original price was: $379.00.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 1/2 hp 1200 RPM, 1.8 amps 575 Volts 60 Hz Three Phase Motor

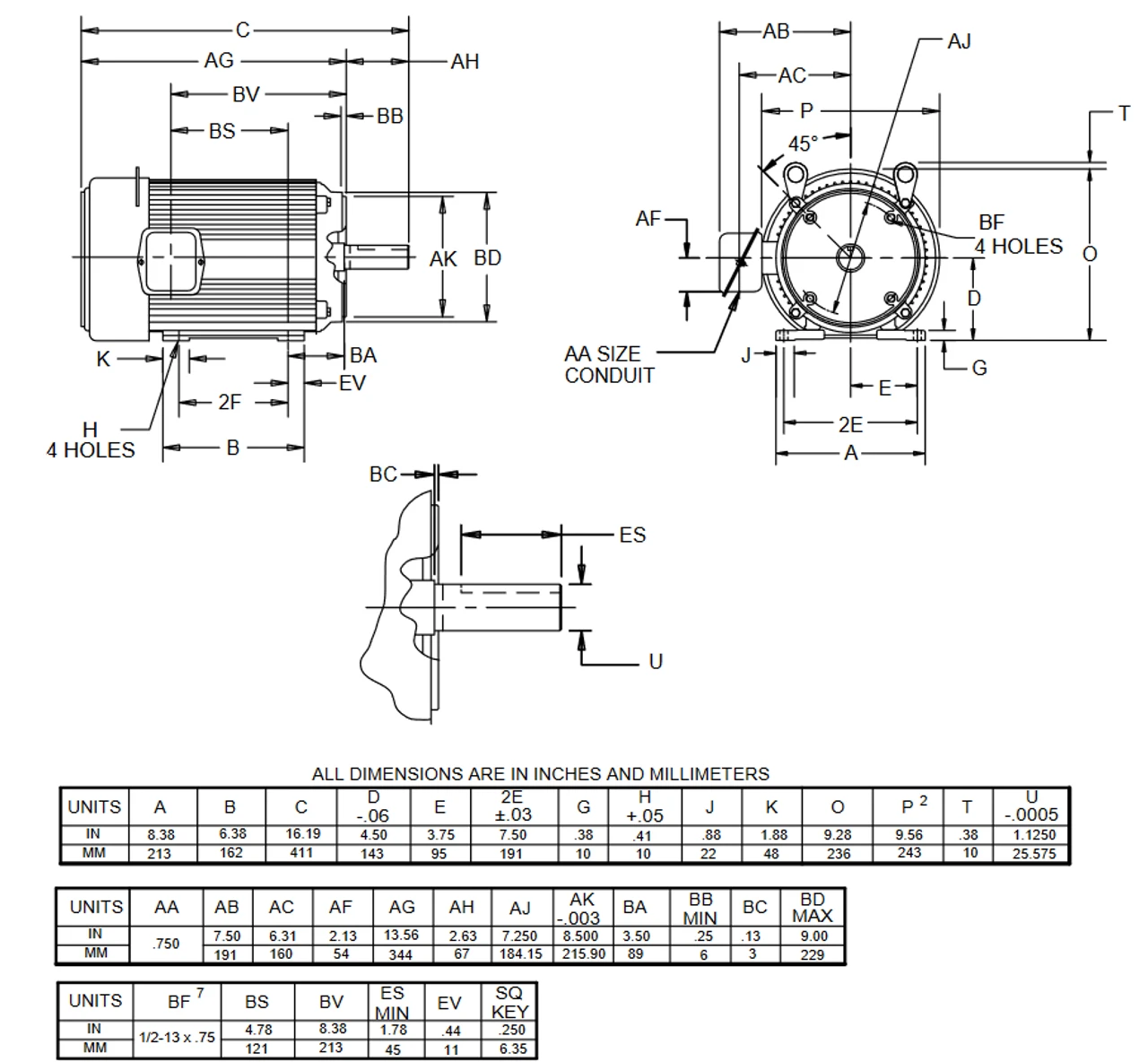

- NEMA 182TC frame Keyed Shaft 1 1/8″ Diameter x 2 1/4″
- Service Factor: 1.25, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose C- Face motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. CJ76
