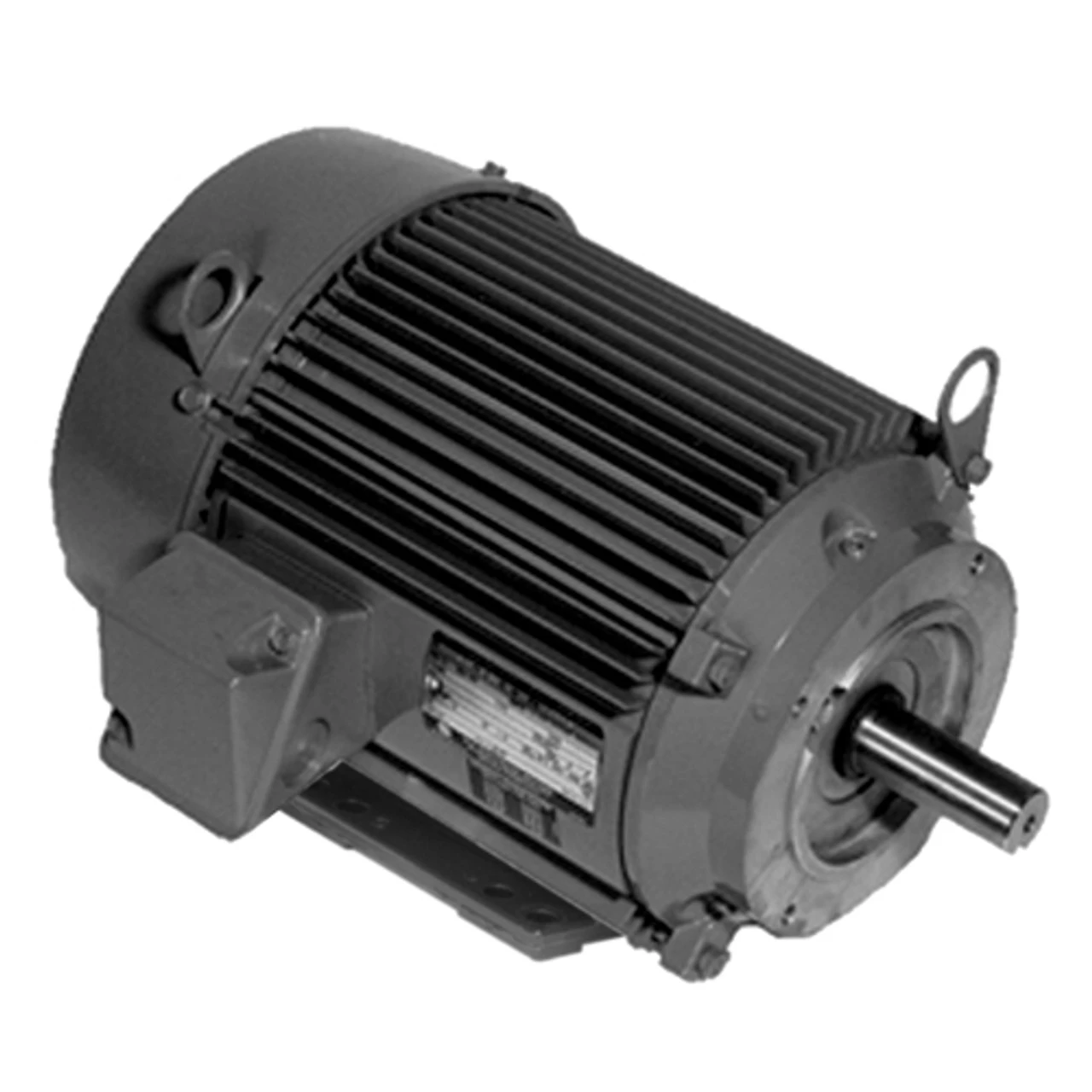

U20P1DCR Nidec 20 Hp 3600 RPM 256TC Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor
Original price was: $374.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 20 hp 3600 RPM, 53.0-46.0/23.1 amps 208-230/460 Volts 50/60 Hz Three Phase Motor

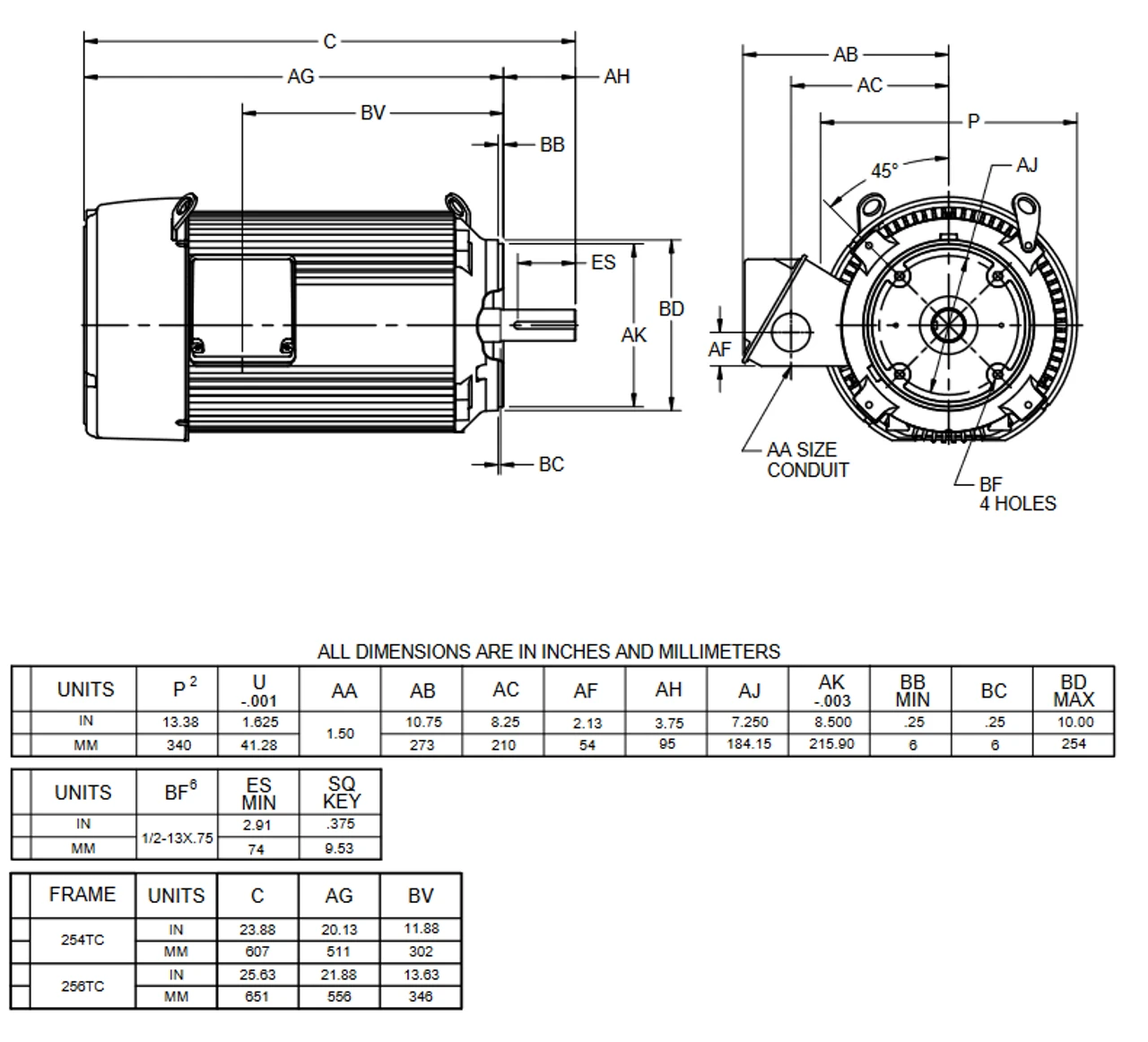

- NEMA 256TC frame Keyed Shaft 1 3/8″ Diameter x 3 1/8″
- Service Factor: 1.25, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose C- Face motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DX58
