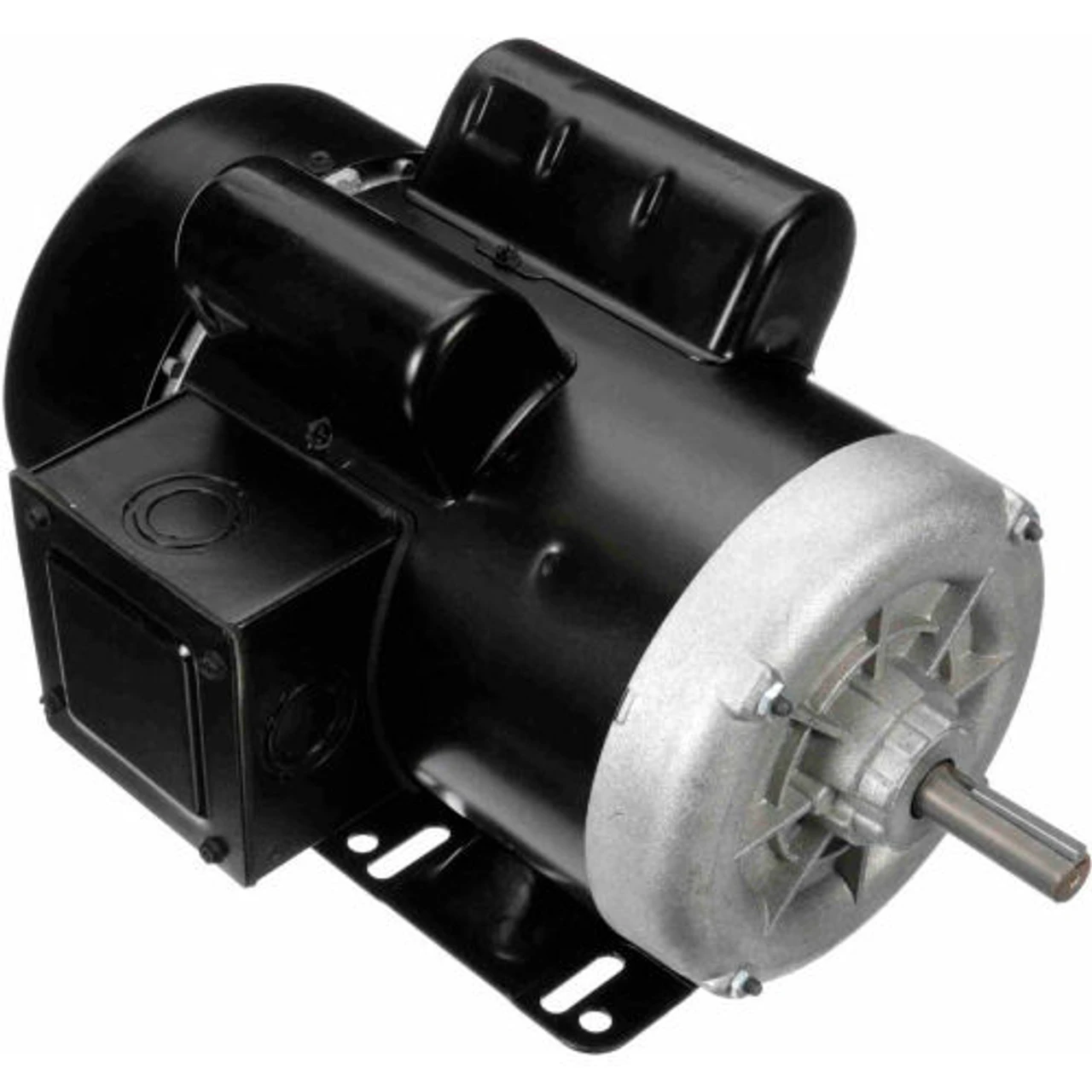

T34C2Z Nidec 3/4 Hp 1800 RPM 100-120/200-240V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor

T34C2Z Nidec 3/4 Hp 1800 RPM 100-120/200-240V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor - Image 2

T34C2Z Nidec 3/4 Hp 1800 RPM 100-120/200-240V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor

Original price was: $364.00.Current price is: $95.99.

SKU: ZWXLY 1698658386 Category: Electric Motors Tag: Nidec

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

3/4 hp 1800 RPM, 9.2-8.4/4.6-4.2 amps 100-120/200-240 Volts 60 Hz Capacitor Start/Run Motor
NEMA 56 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.25 Overload protection = None
Rigid Mount, Ball Bearings, Class B Insulation, Reversible
1 Year Manufacture Warranty

For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. T063CHR1900015B
