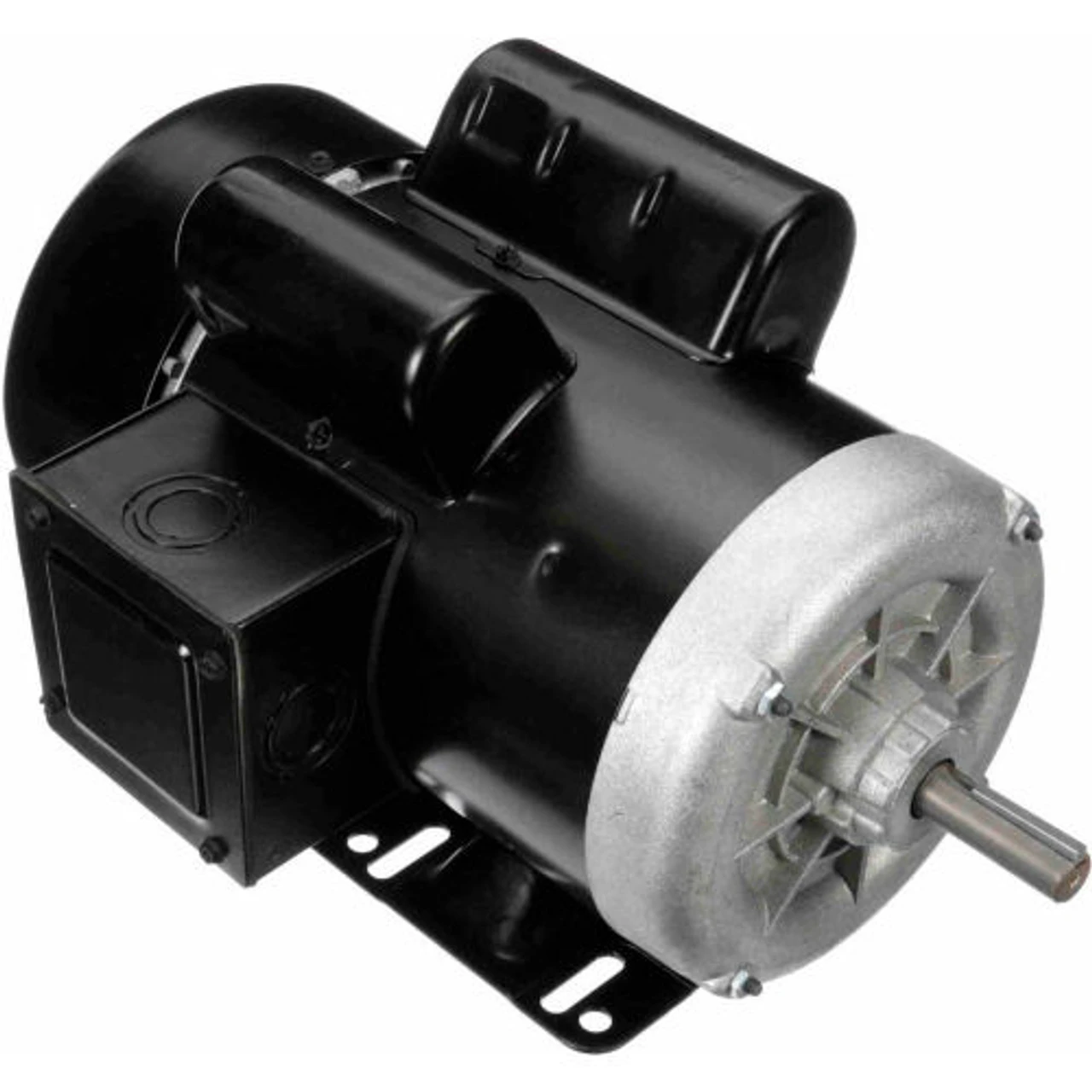

T32C1J14 Nidec 1 1/2 Hp 3600 RPM 115/208-230V 143T Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor
Original price was: $315.00.$95.99Current price is: $95.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 1/2 hp 3600 RPM, 14.6/8.1-8.5 amps 115/208-230V Volts 60 Hz Capacitor Start/Run Motor
- NEMA 143T Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 7/8″ Diameter x 2 1/4″
- Service Factor: 1.15 Overload protection = None
- Rigid Mount, Ball Bearings, Class B Insulation, Reversible
- 1 Year Manufacture Warranty

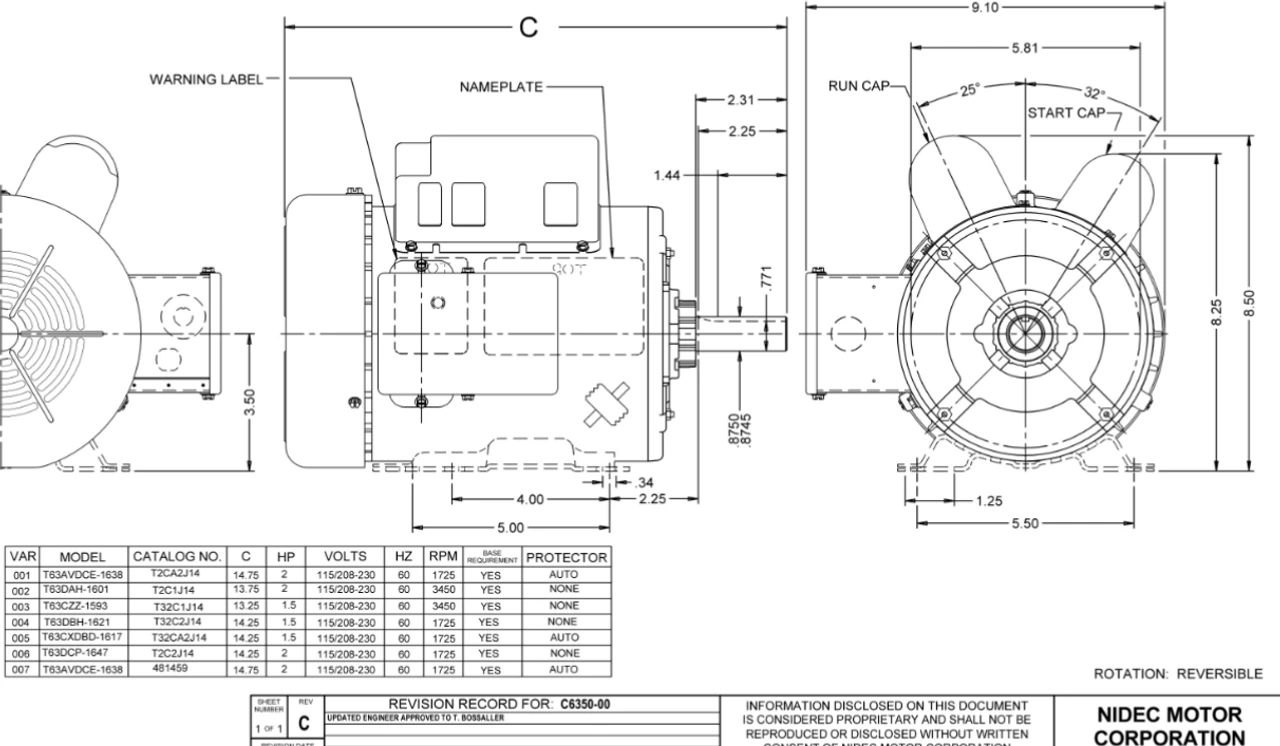

For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. T063CZZ1593015B
