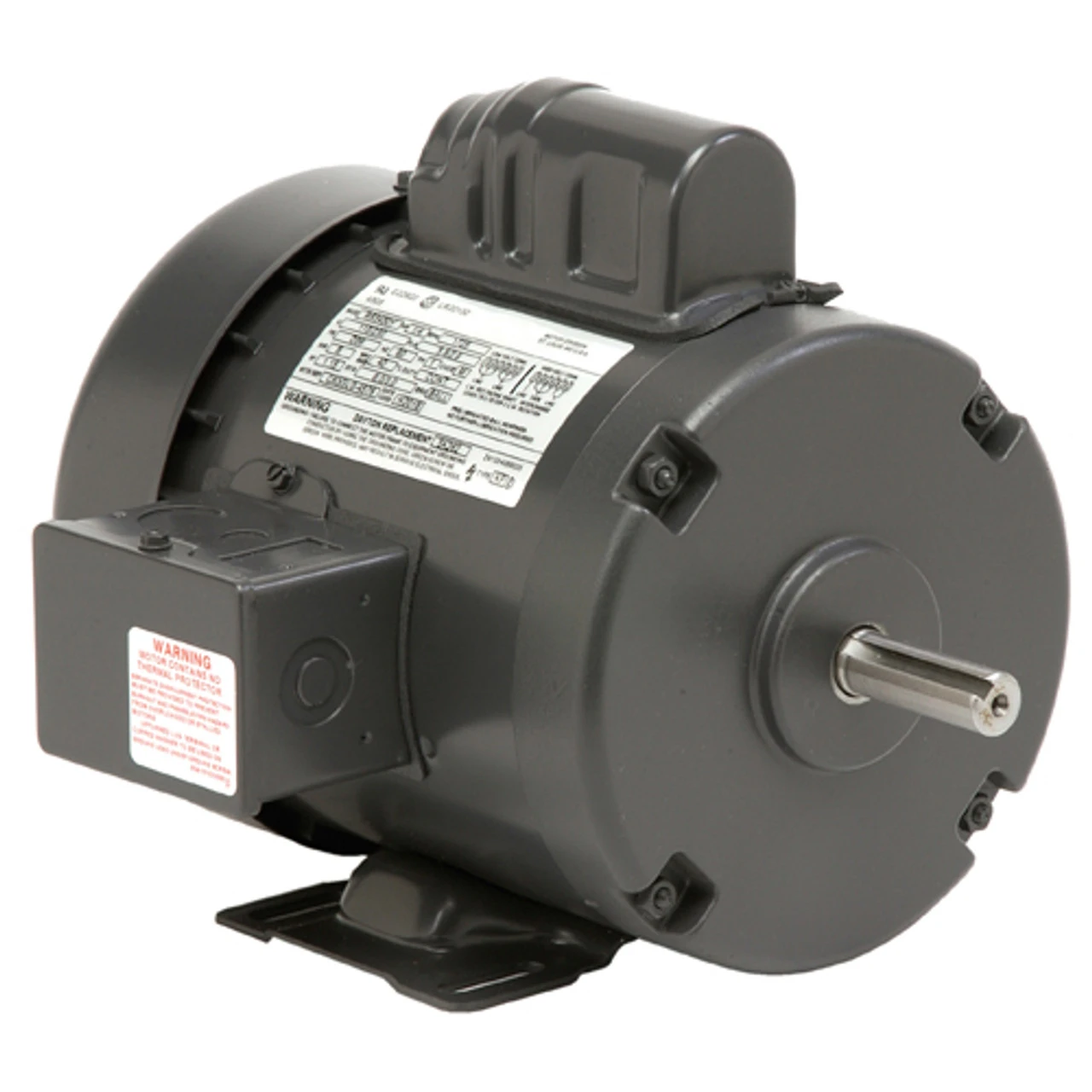

1 hp 1800 RPM, 13.8/6.9 amps 115/230V Volts 60 Hz Capacitor Start Motor

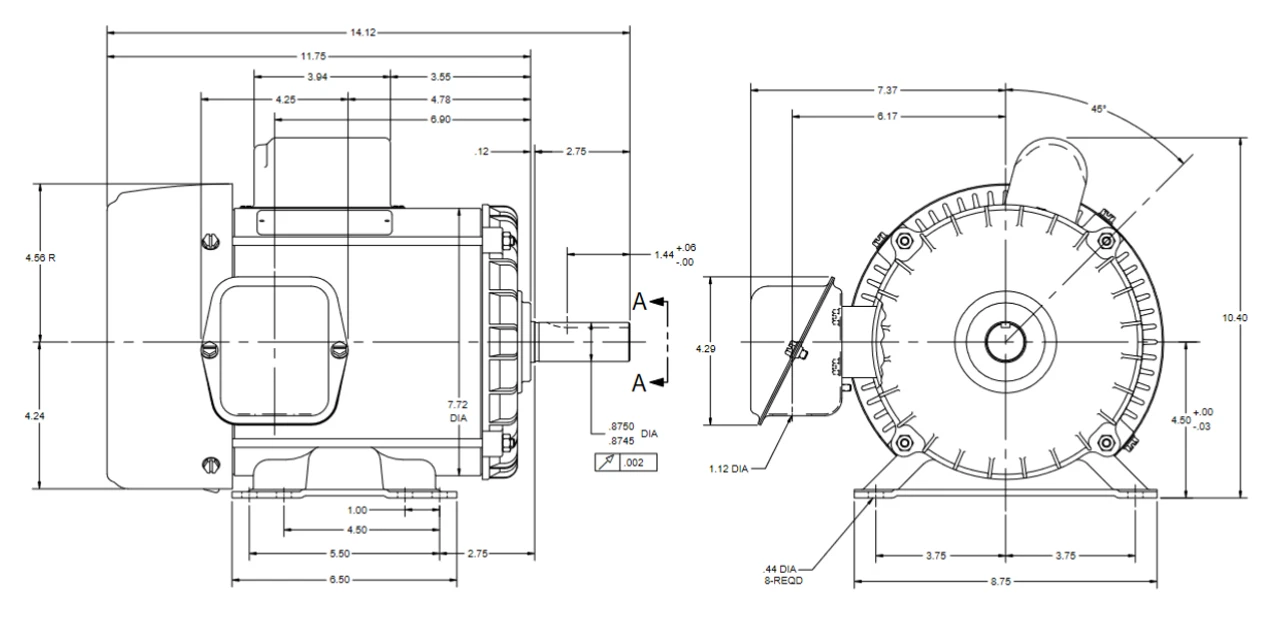

   NEMA 182 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 7/8″ Diameter x 2 3/4″
   Service Factor: 1.0 Overload protection = None
   Rigid Mount, Ball Bearings, Class F Insulation, Reversible
   1 Year Manufacture Warranty
For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. AF72
