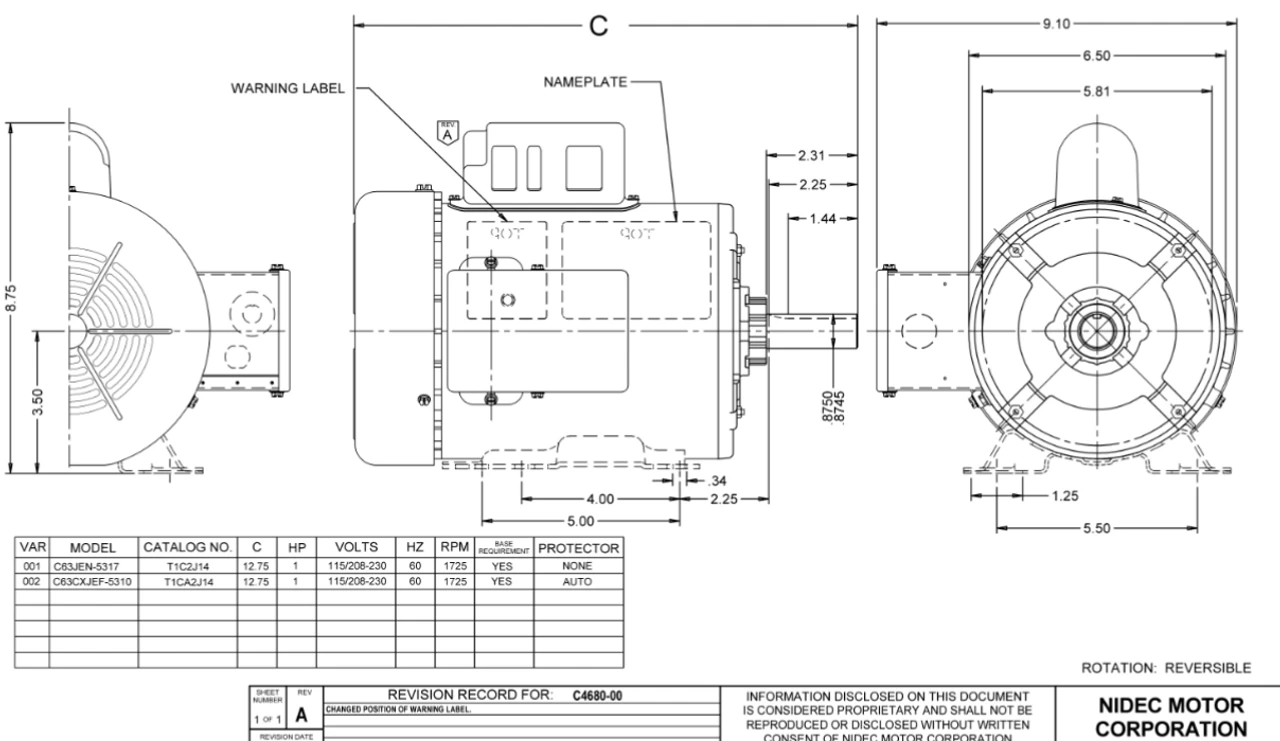

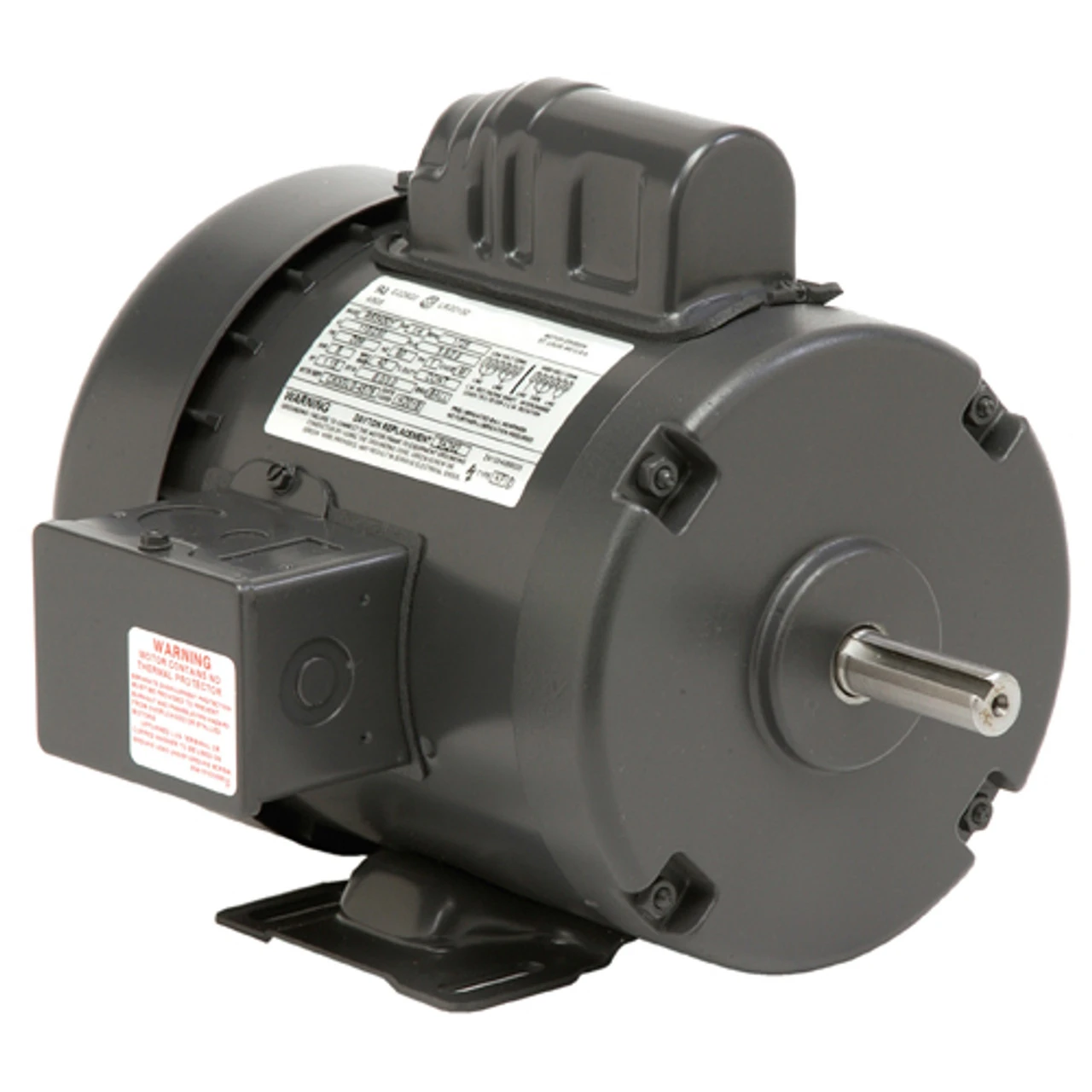

T1C2J14 Nidec 1 Hp 1800 RPM 115/208-230V 143T Frame (Rigid Base) 1-Speed TEFC Cap Start Motor
Original price was: $360.00.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 hp 1800 RPM, 14.0/6.9-7.0 amps 115/208-230V Volts 60 Hz Capacitor Start Motor
- NEMA 56 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 7/8″ Diameter x 2 1/4″
- Service Factor: 1.15 Overload protection = None
- Rigid Mount, Ball Bearings, Class B Insulation, Reversible
- 1 Year Manufacture Warranty
For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. C063JEN5317015B
