Replacement For Dayton 1TDP7 Blower – Direct Interchange (1TDP7A)

✅ Replacement Blower for Dayton 1TDP7, 1TDP7A
✅ Direct OEM Aftermarket Replacement
✅ EASY TO INSTALL | Made to exactly fit top name brand (Dayton)
✅ PREMIUM QUALITY | This motor is made from high quality materials, has been thoroughly tested by the manufacturer to meet OEM standards

Fits many different indoor and outdoor wood stoves, boilers and fireplaces

• Max Airflow 146 CFM
• 3100 RPM, .75 amps, 115 Volts 60/50hz.
• Mounting: All Position
• Ball Bearings

• Max Inlet Temp. 104F

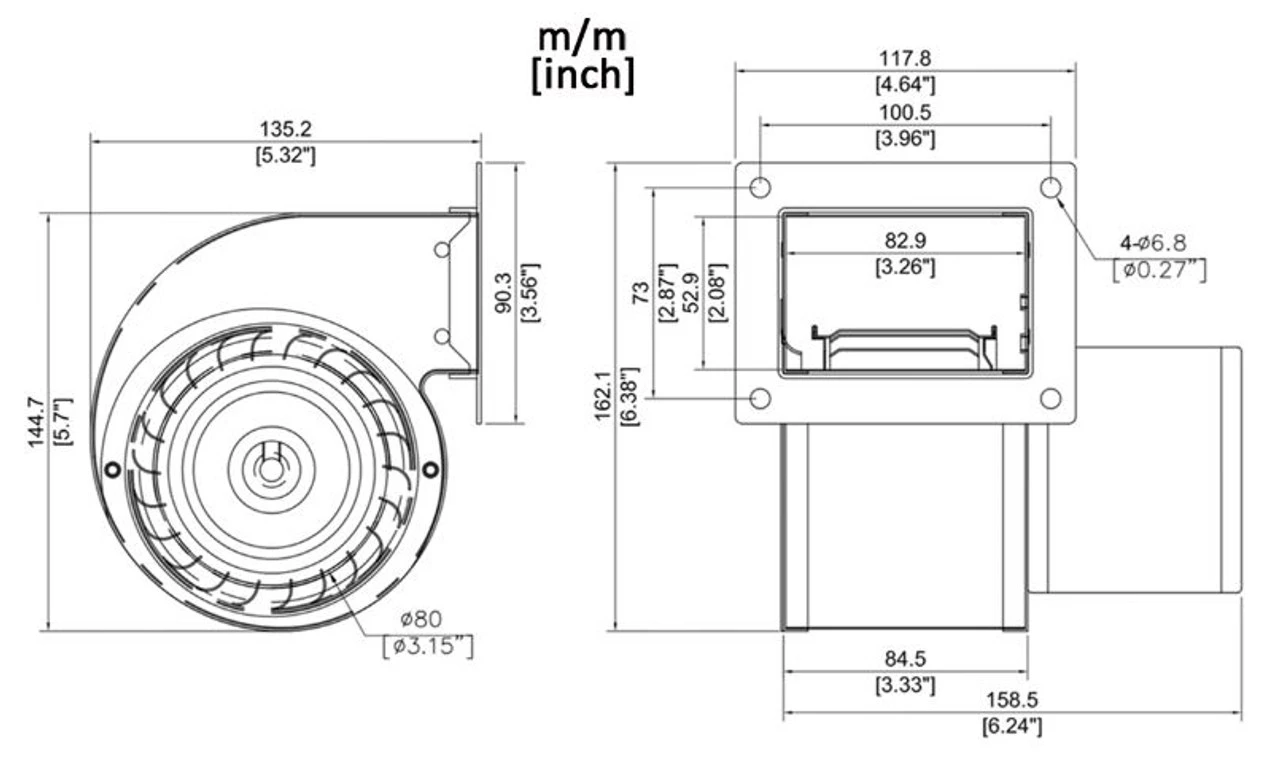

• Outlet Flange Bolt Hole Dimension: 4″ x 2-7/8″
• Automatic Overload Protection
• cULus Approved
• Housing Material: Painted Steel
• Insulation Class B
• PSC Motor Type
• Includes Conduit Box

• Non Reversible
• Not recommended for speed control
• Blower has no power cord or on/off switch
• One Year Manufacture Warranty

Suggested Replacement for the following models:
Dayton Model 4C446 is discontinued – the PTDP7 blower is the direct replacement
This will replace the Fasco A166 as an exact replacement
Replaces 4C005, 4C446, 1TDP7A
Fasco Model 7021-3469
This Fan is used on the Wood Doctor all Models, WoodMaster 4400 & 5500, Taylor T-750, Heatmor 200 CSS and 400 CSS, HeatSource Model 1000 & Johnson John Jr.

Our replacement products are model or part number specific. Please before purchasing, make sure this product fits your application.

We always recommend a certified trained technician to help with installation. Always turn off the power before attempting to replace any electrical product.

The brand names and logos are the registered trademarks of their respective owners. Any use of the brand name or model designation for this product is made solely for purposes of demonstrating compatibility.
