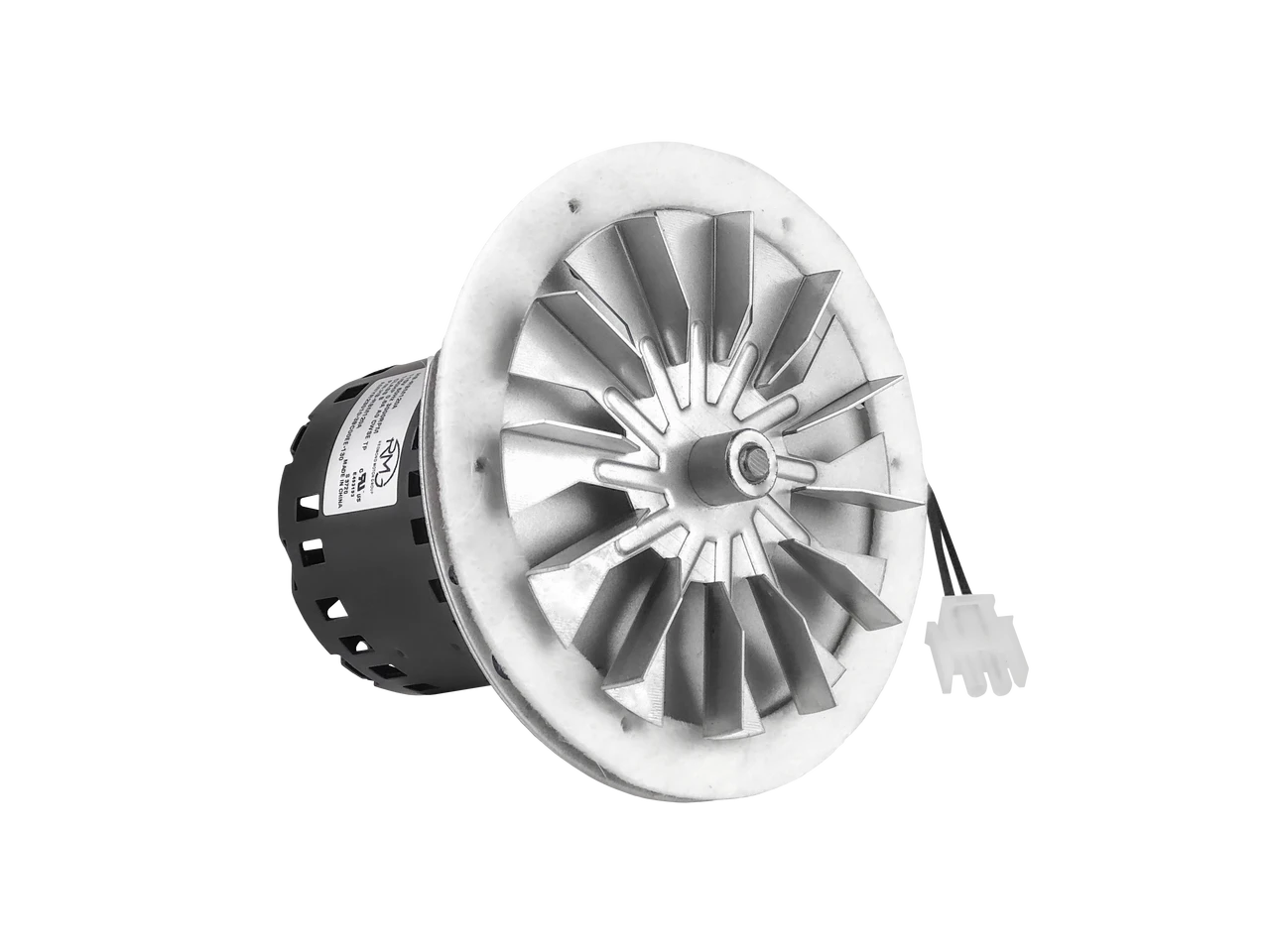

Pellet Stove Blower Motor, 1/50 Hp, 3000 RPM, 0.6 Amps. 115V

Pellet Stove Blower Motor – HB-RBM120

• 1/50 hp 3000 RPM 0.6 amps, 115 Volt 60hz
• Fan: 4.75″ Diameter
• Mounting Plate: 5.8″, Bolt Hole Centers: 5 3/8″
• Blower motor with mounting plate only, not complete housing
  Plate has 6 oblong mounting holes for # 8 or # 10 screws
• shaft: 5/16″ x 1 7/8″
• Rotation = CW facing shaft
• Sleeve Bearings
• 3.3″ Diameter Motor

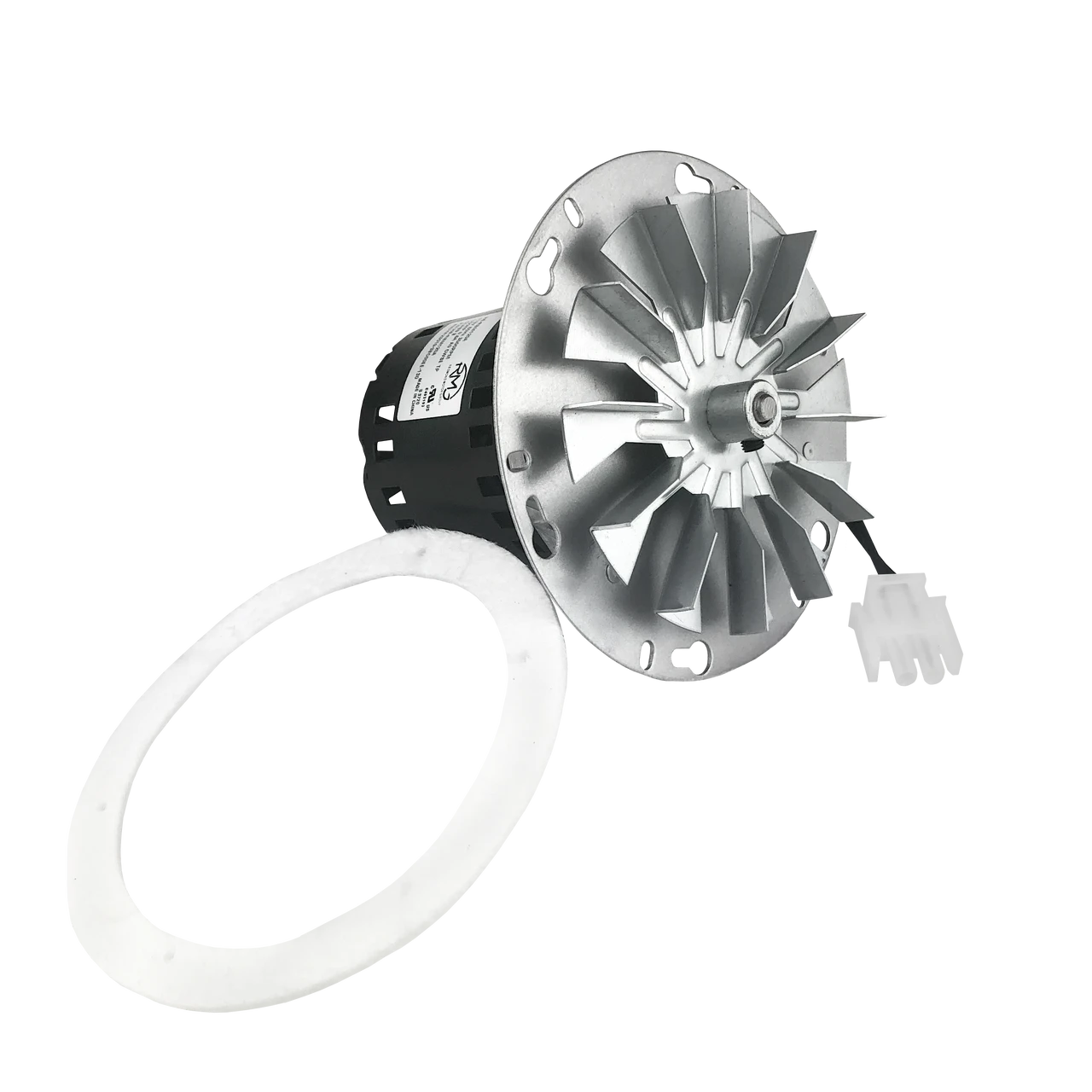

• Includes gasket, fan blade & plug
• Motor Case Length 3.0″
• One Year Warranty

Suggested replacement reference for: Whitfield – Quest 12026011, 13656011, 10-1111 G, Breckwell, Travis (Avalon & Lopi); Quadra-Fire, Fasco 7021-9667, 7121-7001, J238-150-15130, J238-112-11226, 702111469, 7021-11469, 7021-8786, 7021-9778, 70581520, 7058-1520, 7021-8978, 7021-9129, J238-150-1518, J238-112-1226, J238-087-8242, J238-150-15288, 119289-00, 10-1114, 076002B, 812-4400, 12156009, 80473, 12050011, 12026011, A-E-027

This is an aftermarket replacement-not original equipment. Be sure to compare the dimensions listed, to your unit, to be sure it will fit. These are “contractor kits” with no installation instructions. Intended to be installed by a qualified technician.
