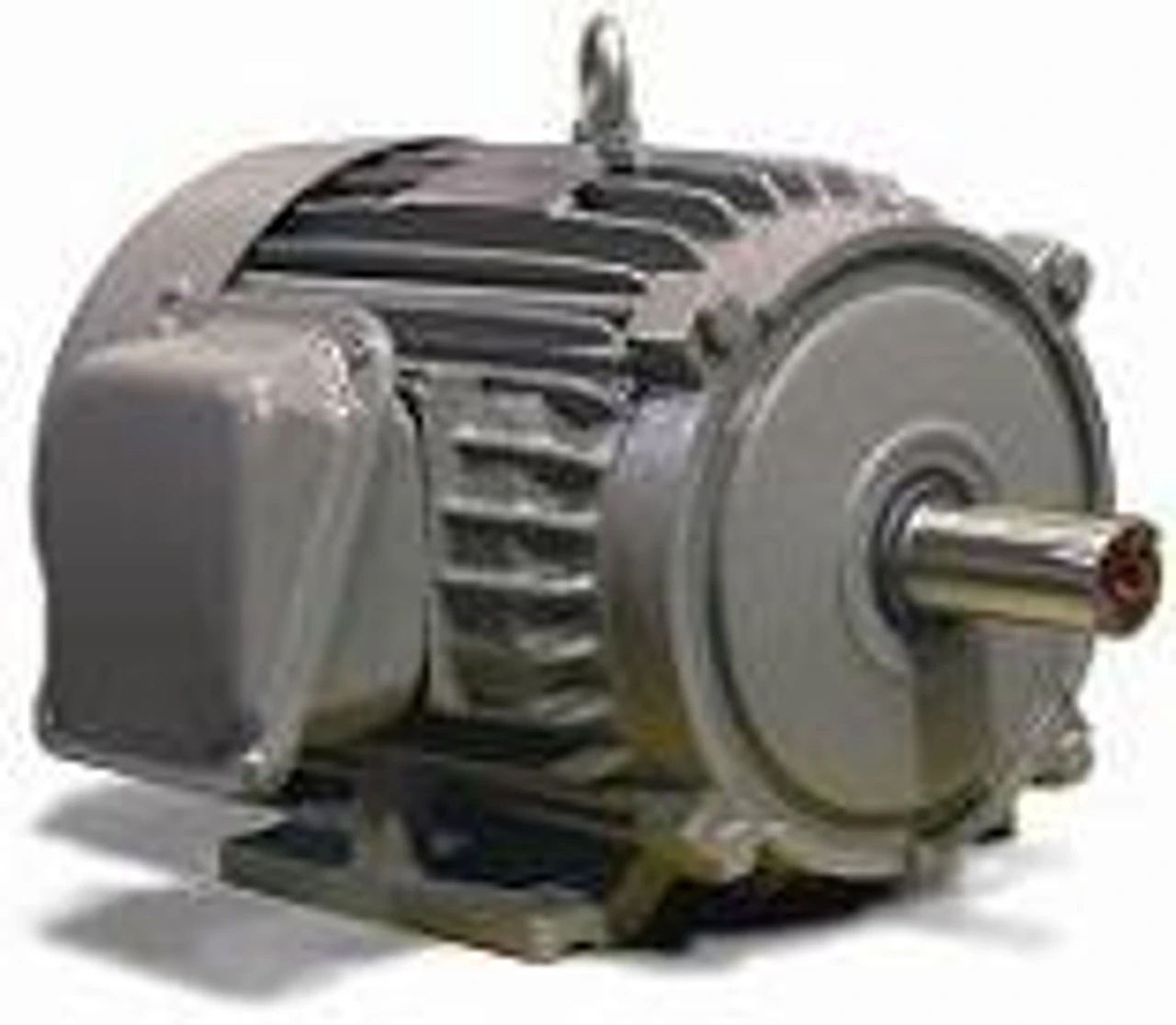

NP0052 TECO Westinghouse 5 Hp 3600 RPM 182T Frame 230/460V TEFC 3-Phase Motor

TECO WESTINGHOUSE MAX-PE, NEMA PREMIUM ELECTRIC MOTOR
SEVERE DUTY RATED

• 5 hp 3600 RPM, 11.4/5.72 amps 230/460 Volts 60hz. Three Phase
• NEMA 184T Frame, Keyed Shaft 1 1/8″ Diameter x 2 3/4″
• Cast Iron Construction, Enclosure: Totally Enclosed Fan Cooled (IP54)
• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty

Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
