KBWC-15 | KB Electronics Solid State Variable Speed AC Electric Motor Control 5.0 Max Amps 115V
Original price was: $15.50.$10.85Current price is: $10.85.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period

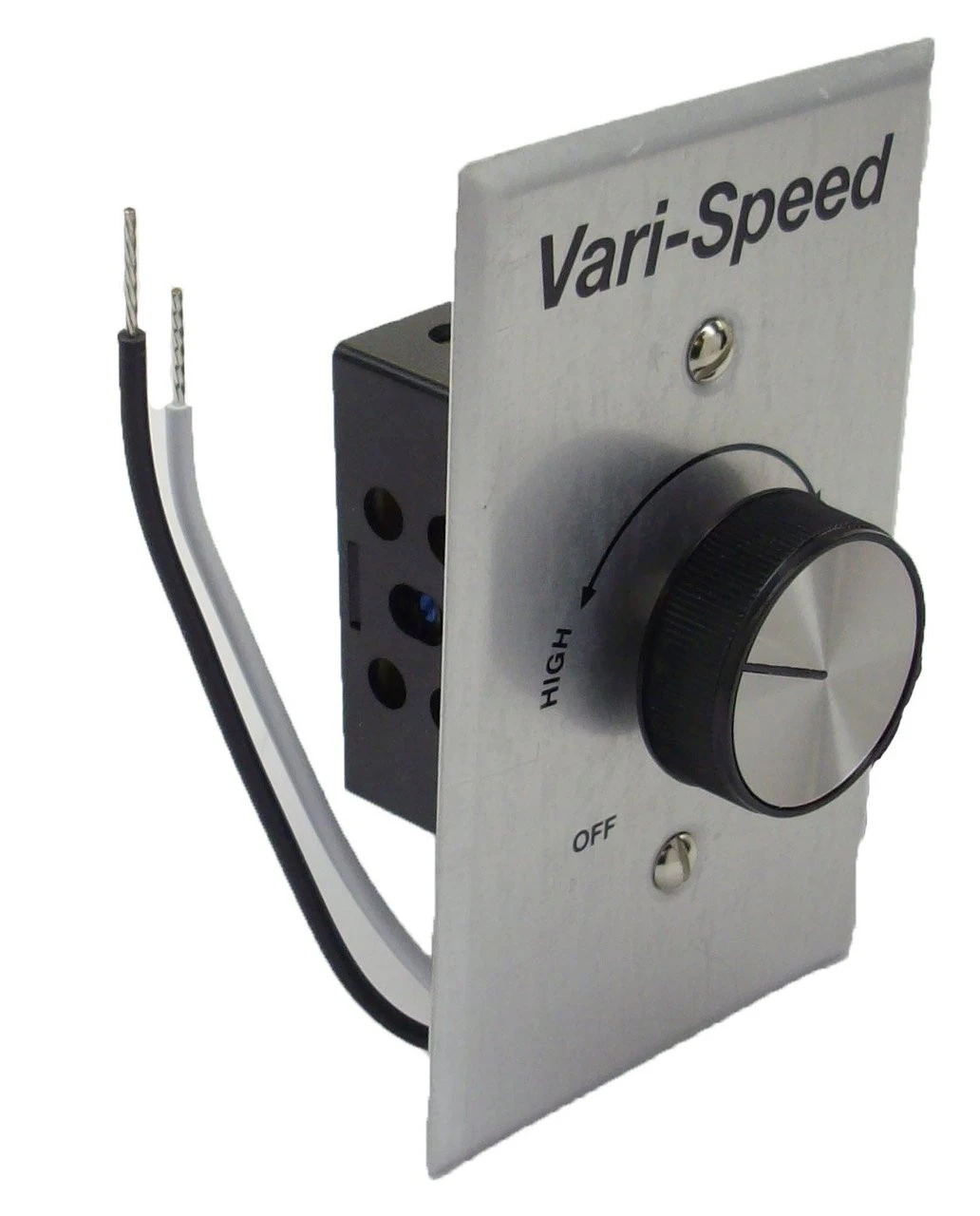

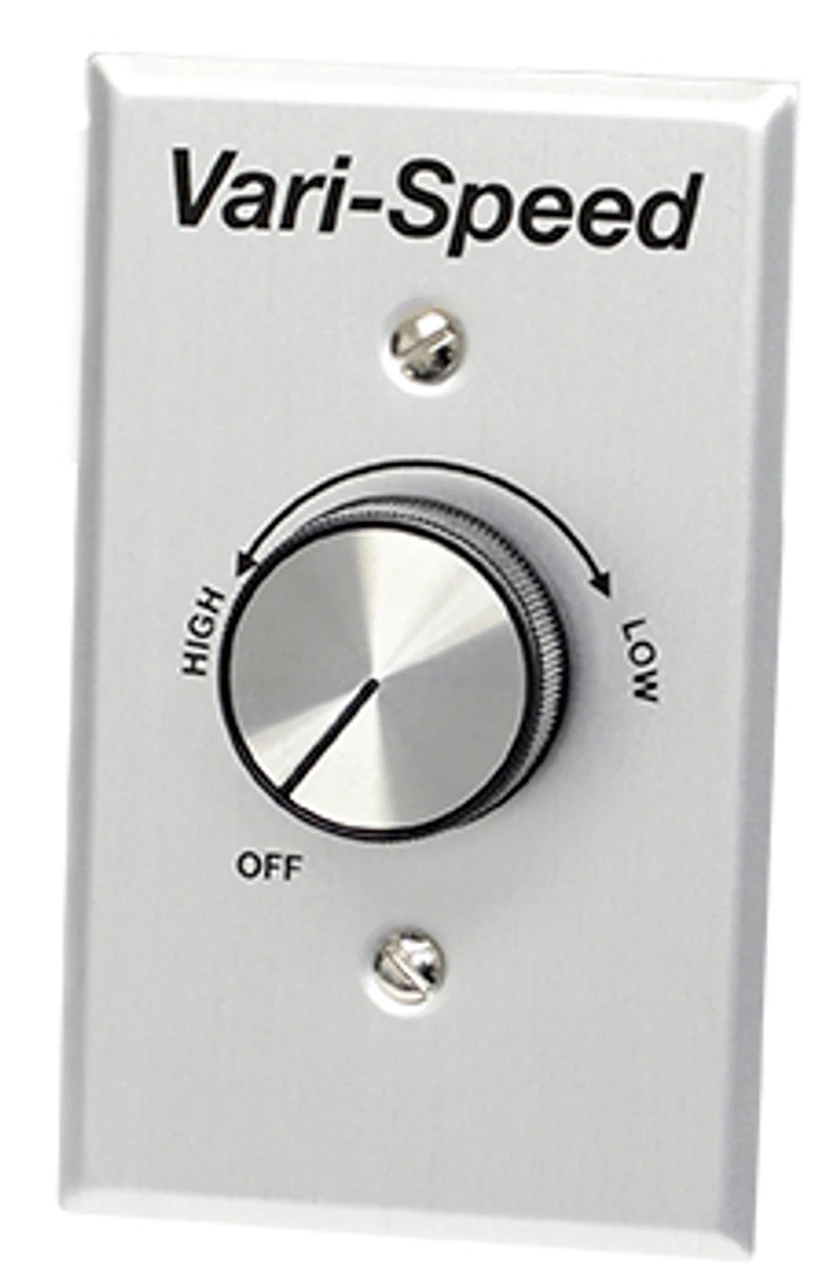

KBWC-15 KB ELECTRONICS SPEED CONTROL
Applications: Fans, Blowers, Fireplace Blowers, Attic Fans, Humidifiers, Ventilators
- Designed for Standard 2″ x 4″ Electrical Wall Box
- 5.0 Max amps 115 Volts
- Ambient Temperature (40ÂşC )
- UL & CSA Approved
- Not to be used with Capacitor Start or Capacitor Run Motors

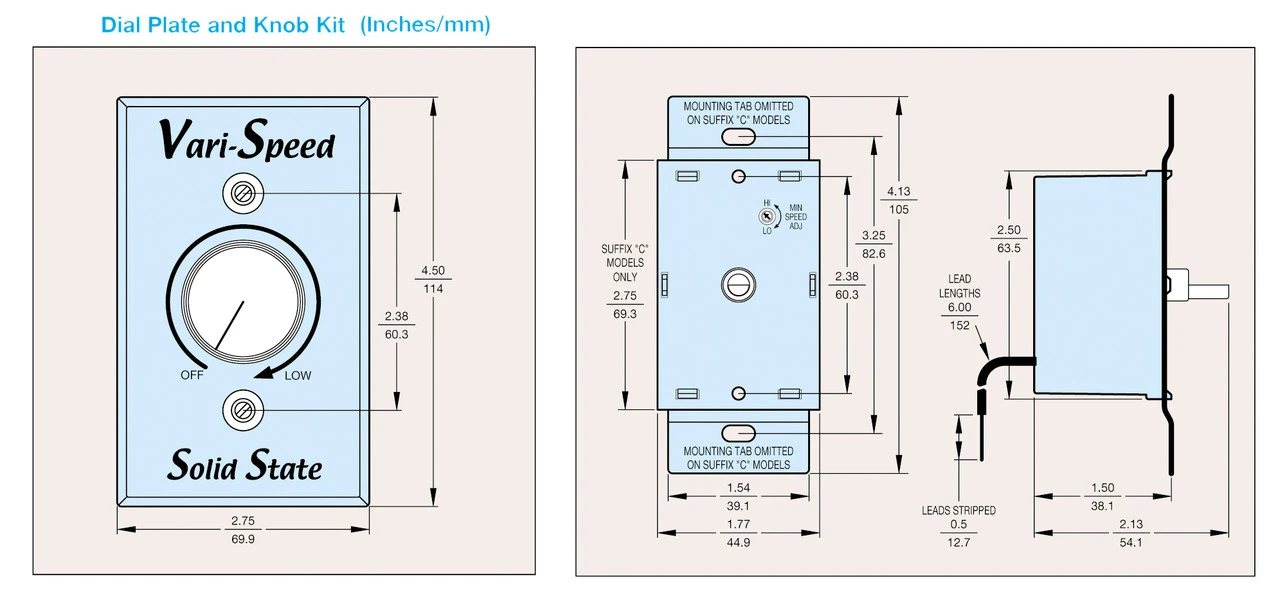

- Mounting kit that includes dial plate, knob, mounting screws, wire connectors and instructions
Model No. KBWC-15, KBWC-15K
Control provides infinite variable speed for shaded pole and PSC motors. Max amps means that the rated motor name plate amperage can not exceed this rating or you will damage the control and motor. Motor must be run with sufficient torque to prevent stalling. A motor not turning will burn up. Not to be used with gear motors. Controls that have been installed are not returnable
