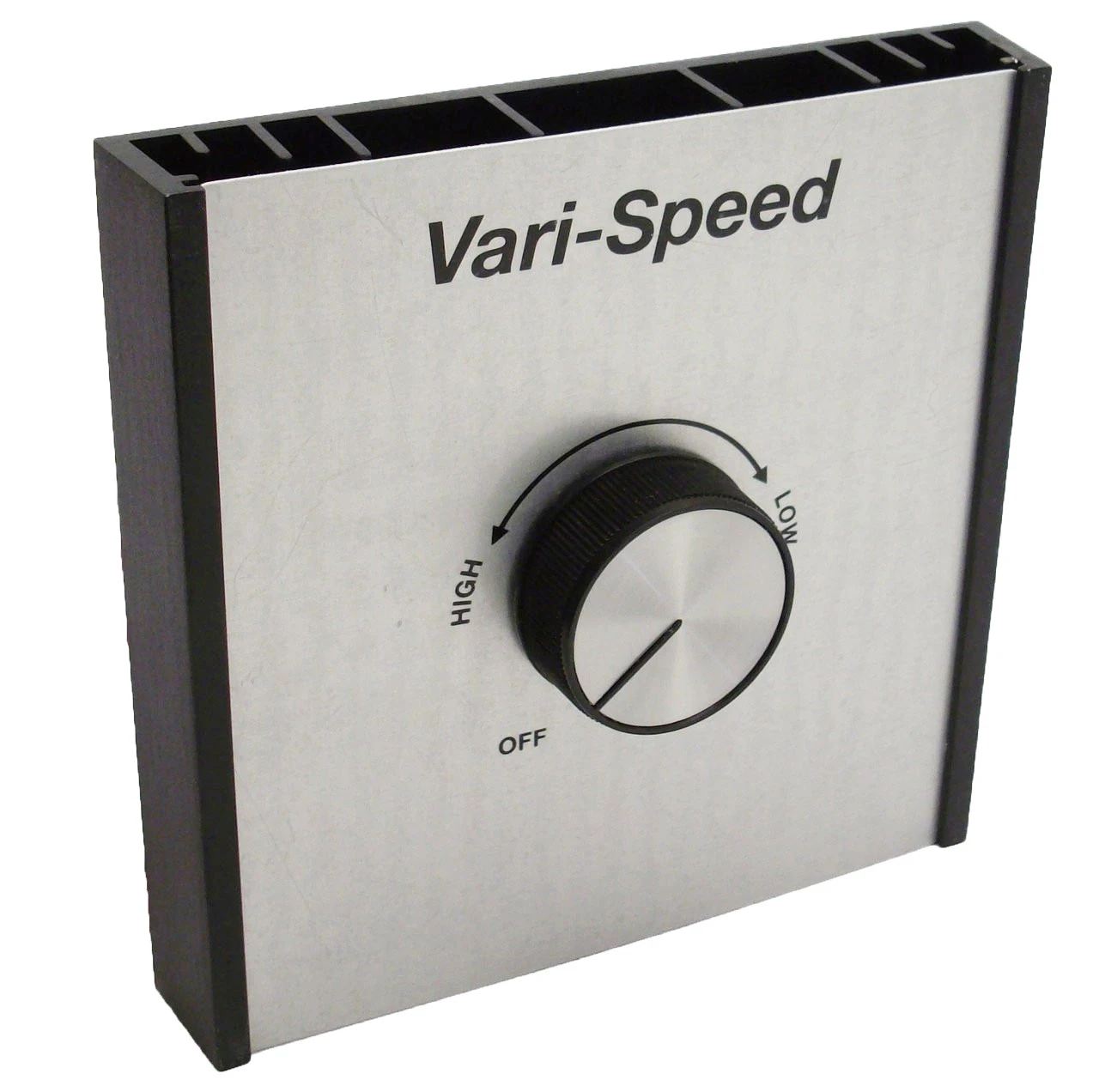

KBWC-115 | KB Electronics Solid State Variable Speed AC Electric Motor Control 15.0 Max Amps 120V

KBWC-115 KB ELECTRONICS SPEED CONTROL
Applications: Fans, Blowers, Fireplace Blowers, Attic Fans, Humidifiers, Ventilators

• Designed for Standard 2″ x 4″ Electrical Wall Box
  This switch has a built in heat sink, when mounted to the wall box the heat sink will be mounted on the outside of the box and flat against the wall.

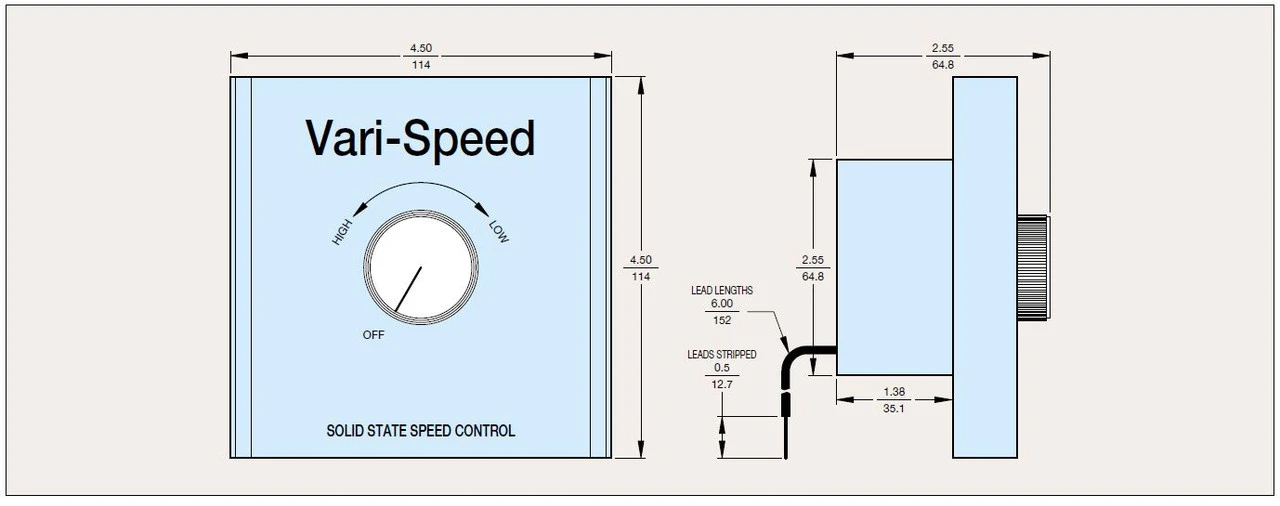

  Heat sink measures 4.5 x 4.5 x .75 (inches)
• 15.0 Max amps 120 Volts
• Ambient Temperature (40ºC )
• UL & CSA Approved
• Not to be used with Capacitor Start or Capacitor Run Motors
• Mounting kit that includes dial plate, knob, mounting screws, wire connectors and instructions

Model No. KBWC-115, KBWC-115K

Control provides infinite variable speed for shaded pole and PSC motors. Max amps means that the rated motor name plate amperage can not exceed this rating or you will damage the control and motor. Motor must be run with sufficient torque to prevent stalling. A motor not turning will burn up. Not to be used with gear motors. Controls that have been installed are not returnable
