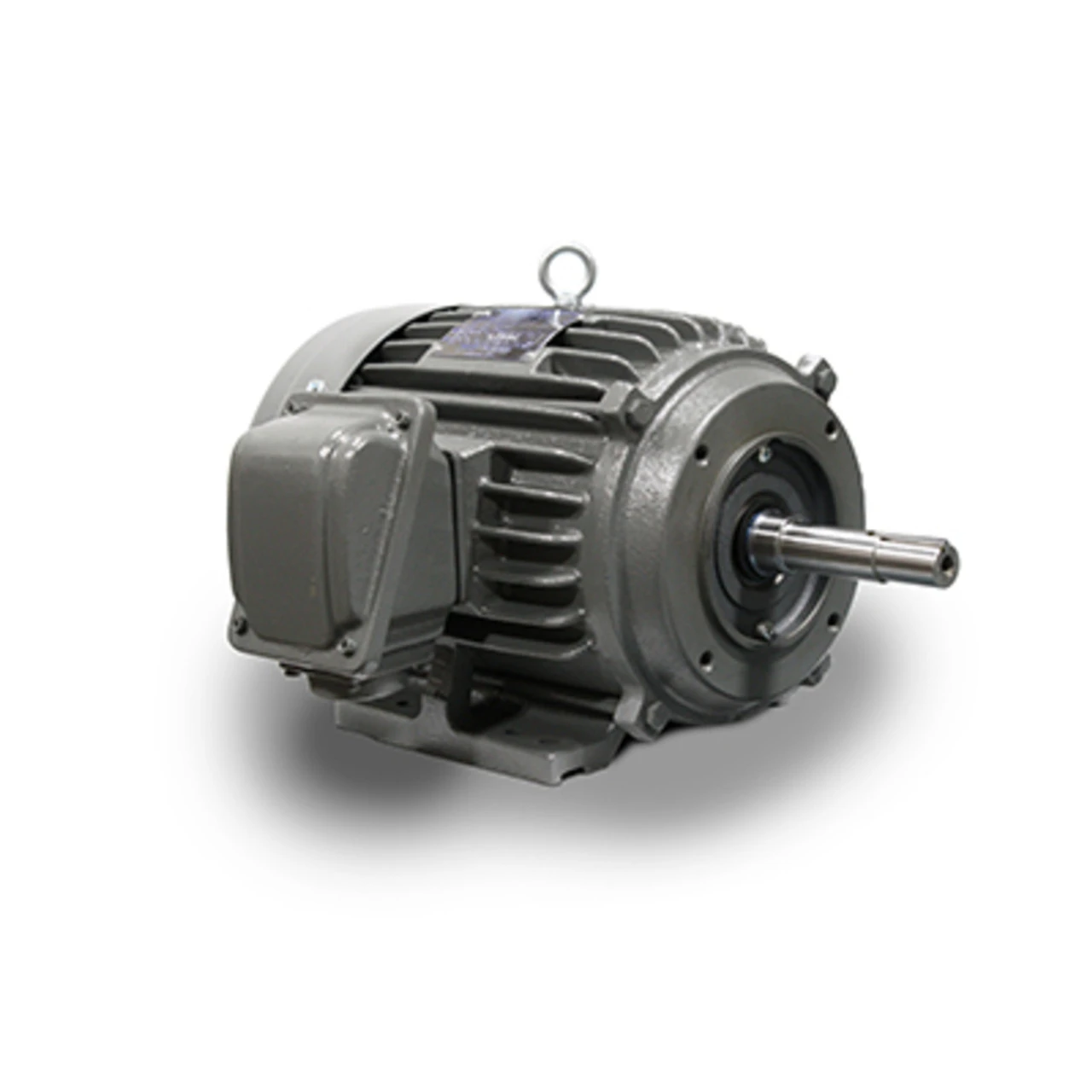

JPP0204 TECO Westinghouse 20 Hp 1800 RPM 256JP Cast Iron 230/460V TEFC Close-Coupled 3-Phase Moto

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 20 hp 1800 RPM, 46.0/23.0 amps 230/460 Volts 60Hz. Three Phase

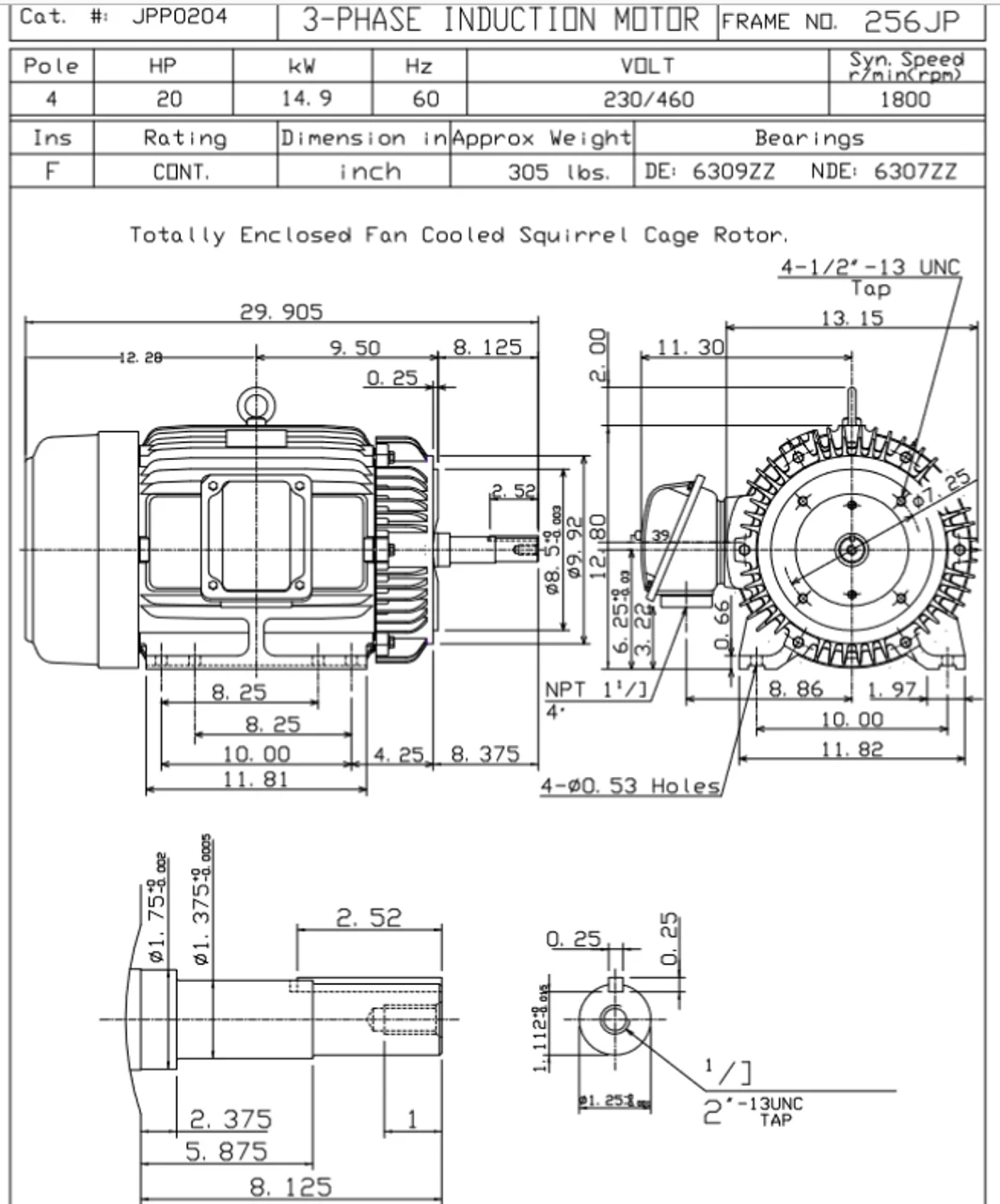

• NEMA 256JP Frame, Special Shaft

• Cast Iron Frame, Enclosure: Totally Enclosed Fan Cooled (IP54)
• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 10:1 Variable Torque, 5:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty


Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
