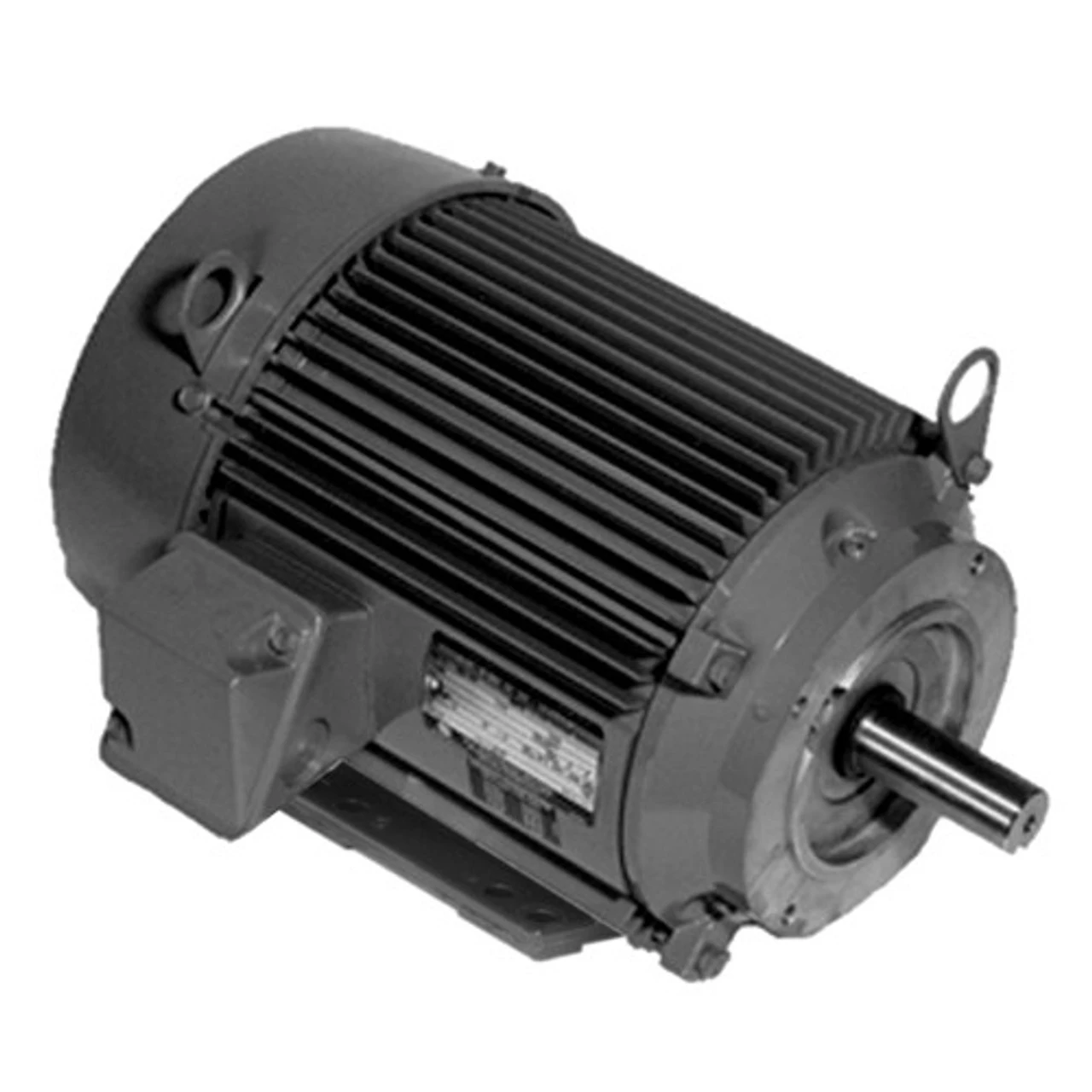

HN5T2BC Nidec 5 Hp 1800 RPM 213TC (Rigid Base) 230/460V TENV Vector-Duty 3-Phase Motor
Original price was: $379.00.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 5 hp 1800 RPM, 15.4/7.7 amps 230/460 Volts 60 Hz Three Phase Motor

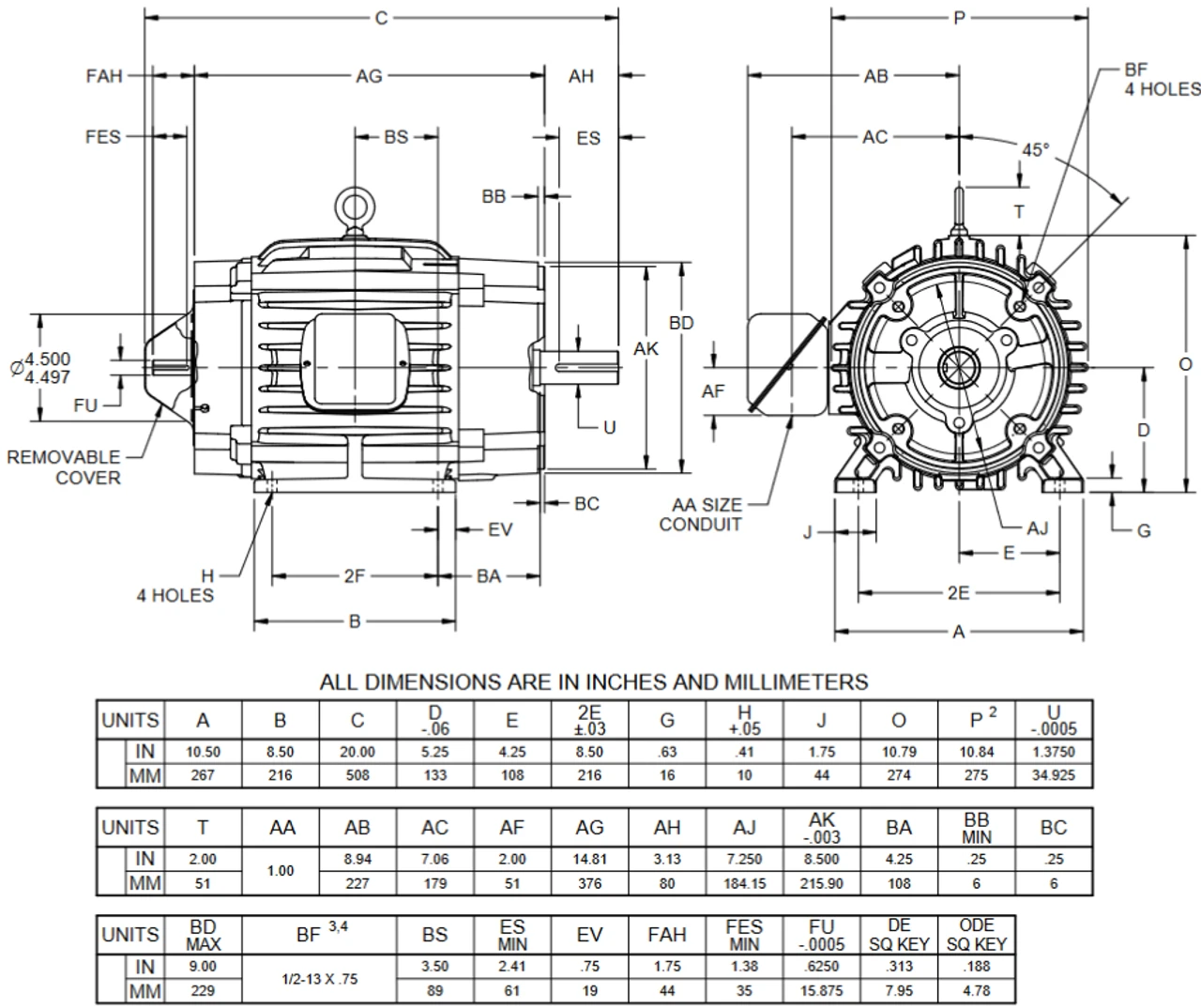

- NEMA 213TC Cast Iron Frame, Keyed Shaft 1 3/8″ Diameter x 3 3/8″
- Service Factor: 1.0 Overload protection = None
- C-Face Mount, Ball Bearings, Class H Insulation, Reversible
- 1 Year Manufacture Warranty
Speed controllable C-Face motor for material handling, cranes and machine tools located in demanding, corrosive environments. 5000:1 constant torque from 0 to nominal motor rpm. NEMA design A. Encoder and brake provisions. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. FV86
