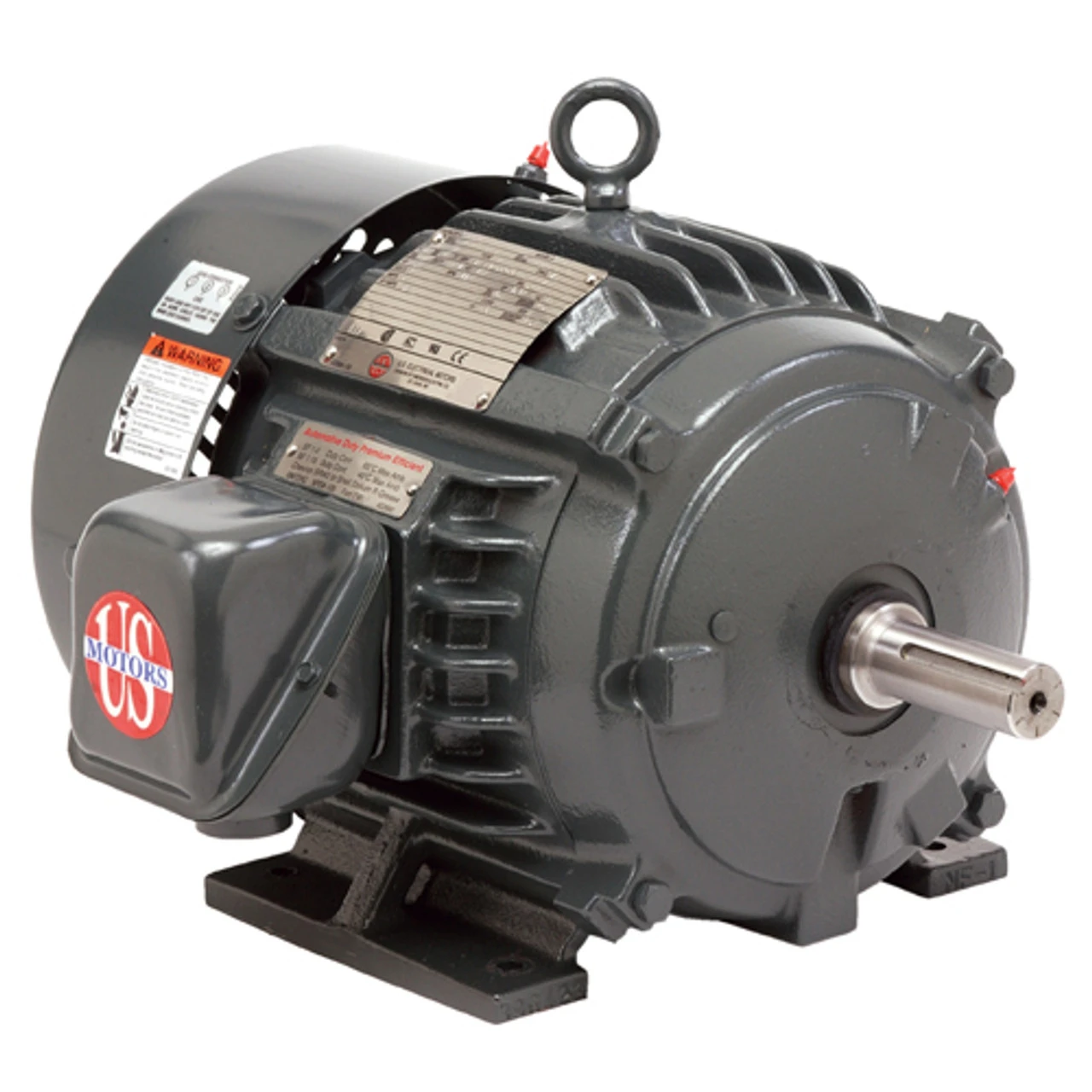

HD7V2B Nidec 7 1/2 Hp 1800 RPM 213T (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor
Original price was: $380.00.$95.99Current price is: $95.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 7 1/2 hp 1800 RPM, 19.1/9.6 amps 230/460 Volts 60 Hz Three Phase Motor

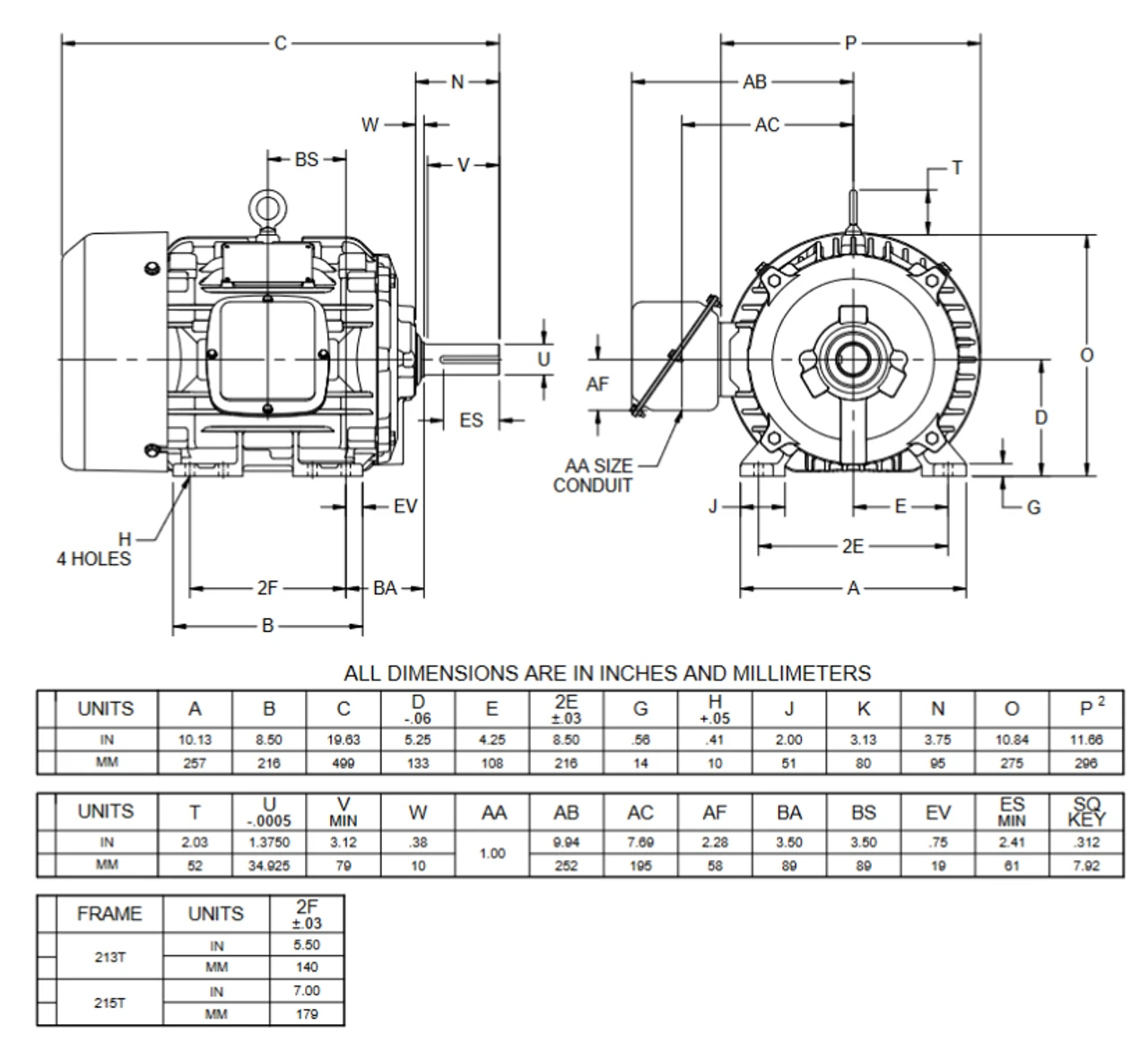

- NEMA 213T Cast Iron Frame, Keyed Shaft 1 3/8″ Diameter x 3 3/8″
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Speed controllable C-Face motor for material handling, cranes and machine tools in hostile environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. GE57
