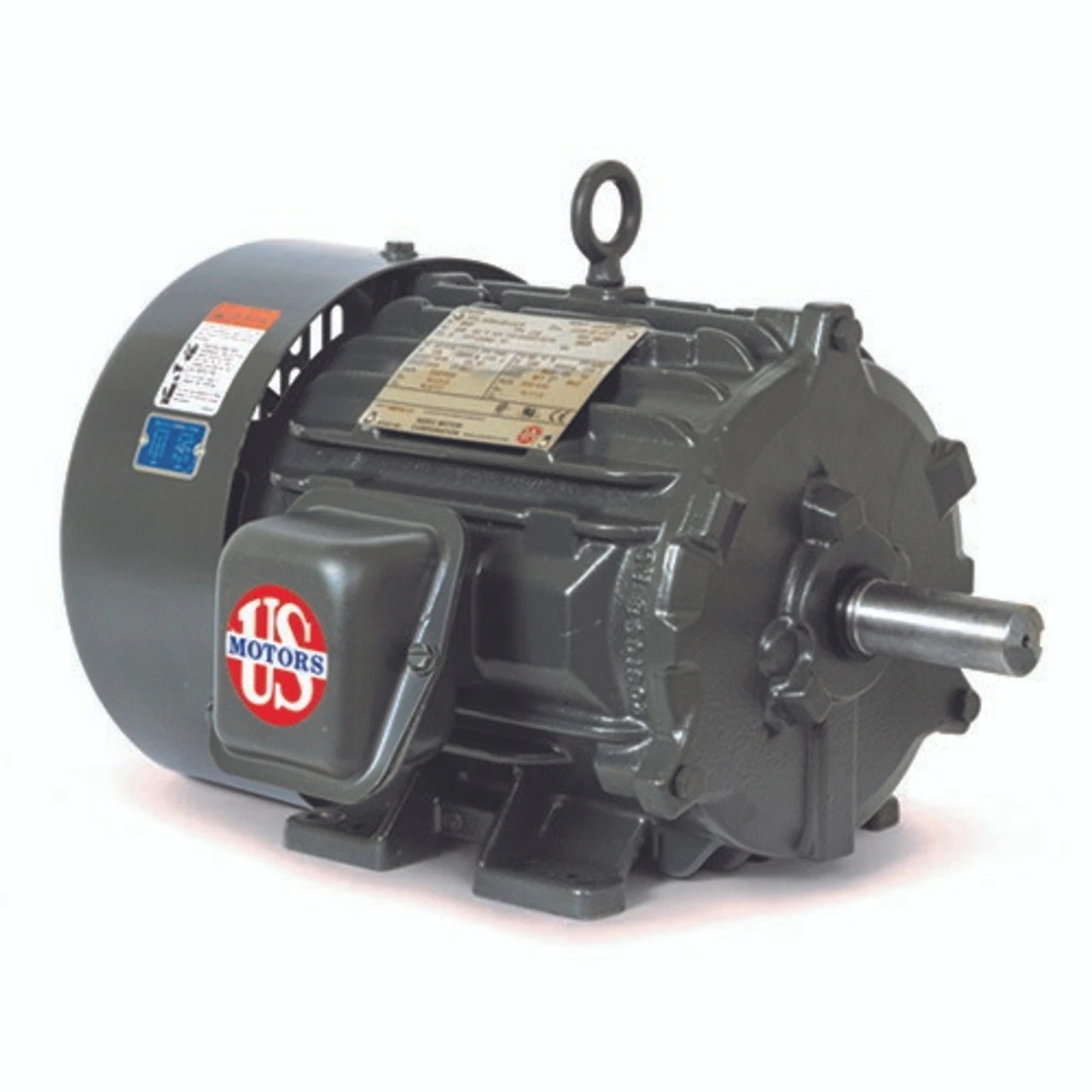

HD7P2H Nidec 7 1/2 Hp 1800 RPM 215T Frame (Rigid Base) 200-208V TEFC 3-Phase Electric Motor
Original price was: $376.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 7 1/2 hp 1800 RPM, 22.0-21.6 amps 208-230 Volts 60 Hz Three Phase Motor

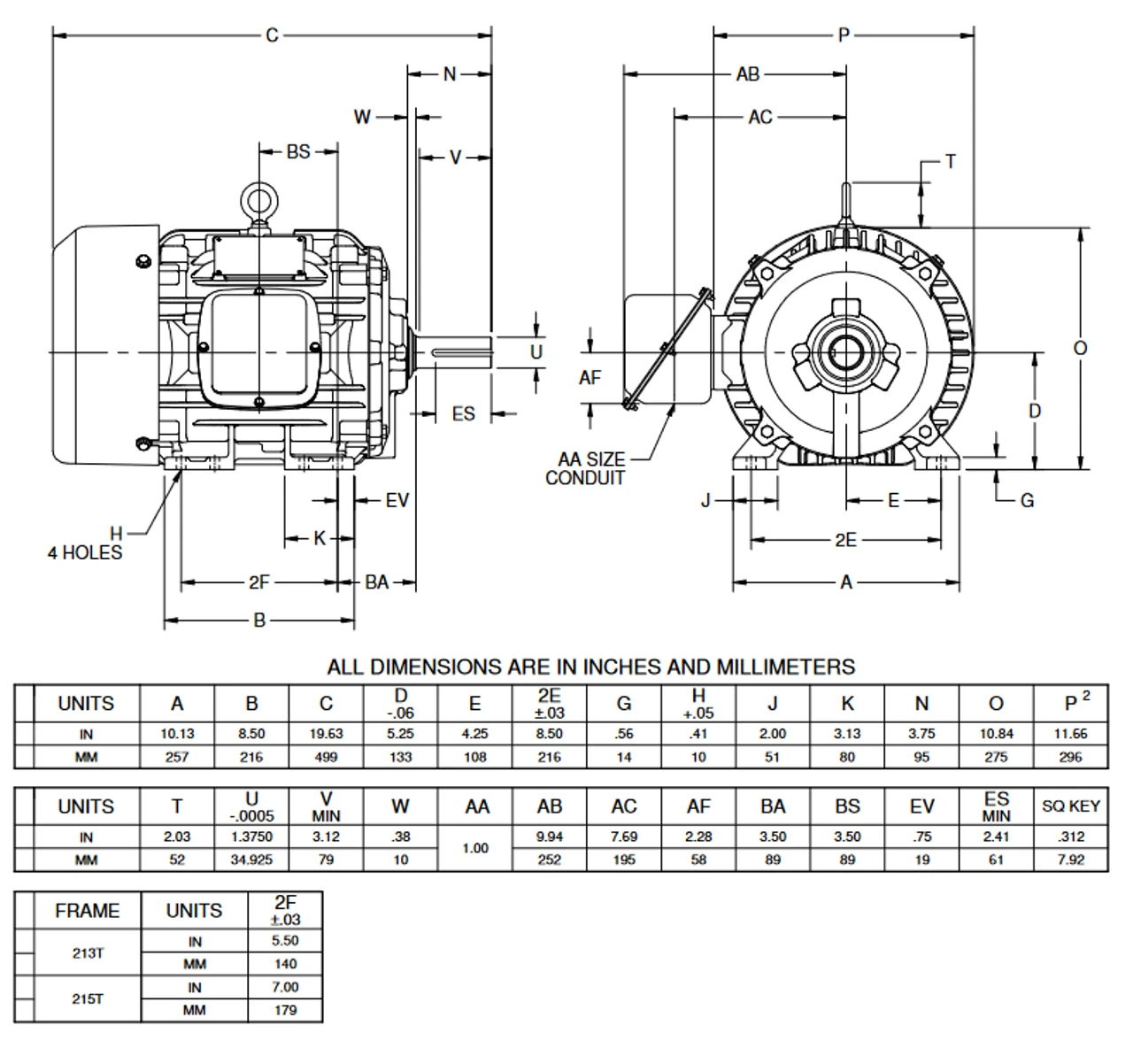

- NEMA 215T Cast Iron frame Keyed Shaft 1 3/8″ Diameter x 3 3/8″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Hostile duty motor can be used for many applications requiring a three phase electric motor. Inverter Duty. Self-certified Class 1, Division 2, Groups A, B, C, D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GE09
