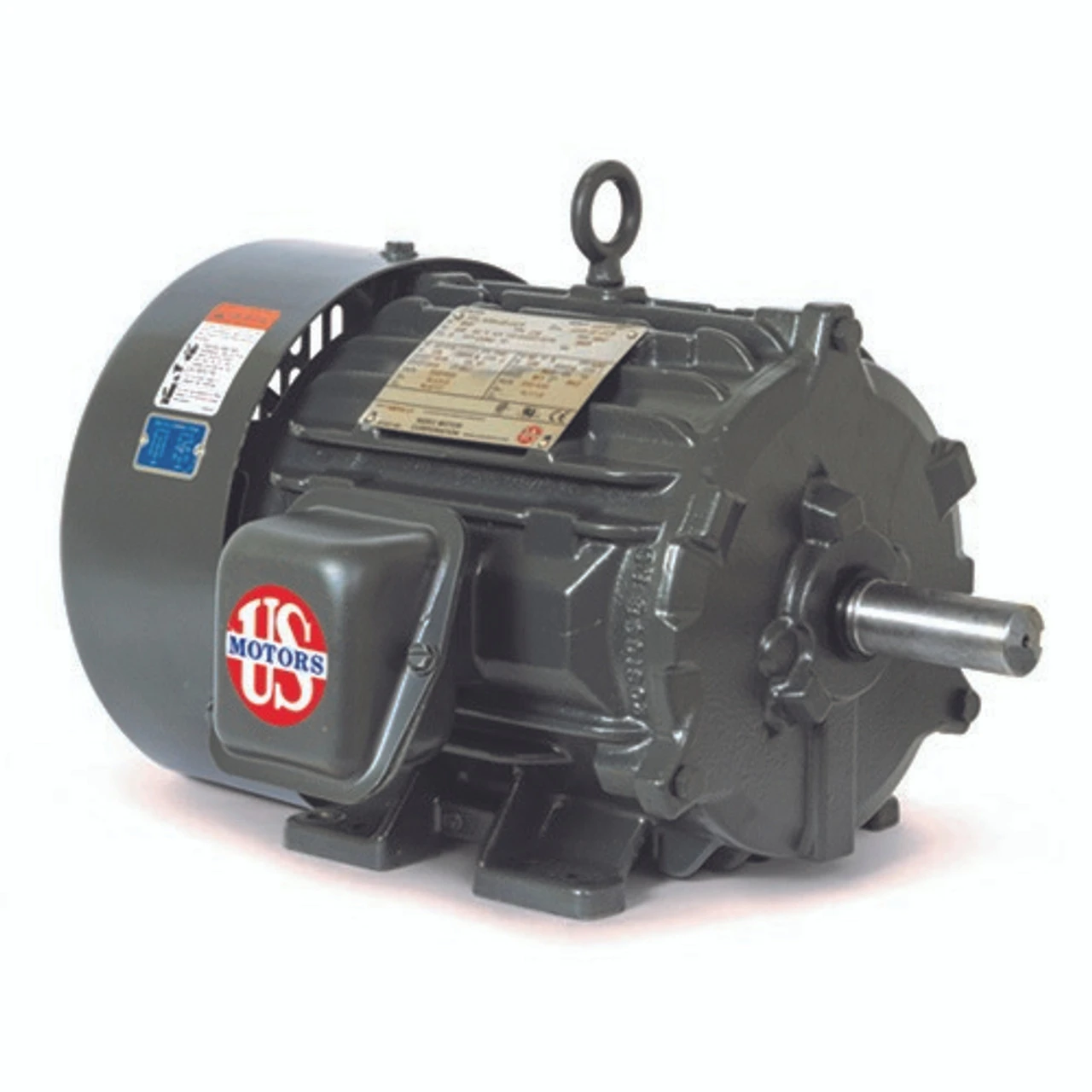

HD1P2H Nidec 1 Hp 1800 RPM 143T Frame (Rigid Base) 208-230V TEFC 3-Phase Electric Motor
Original price was: $317.64.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 hp 1800 RPM, 3.4-3.4 amps 200-208 Volts 60 Hz Three Phase Motor
- NEMA 143T Cast Iron frame Keyed Shaft 7/8″ Diameter x 2 1/8″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Hostile duty motor can be used for many applications requiring a three phase electric motor. Inverter Duty. Self-certified Class 1, Division 2, Groups A, B, C, D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GG09
