HB0036 TECO-Westinghouse 3 Hp 1200 RPM 213T 460V TEFC Severe Duty Petro-Chem 3-Ph Motor
Original price was: $350.00.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period

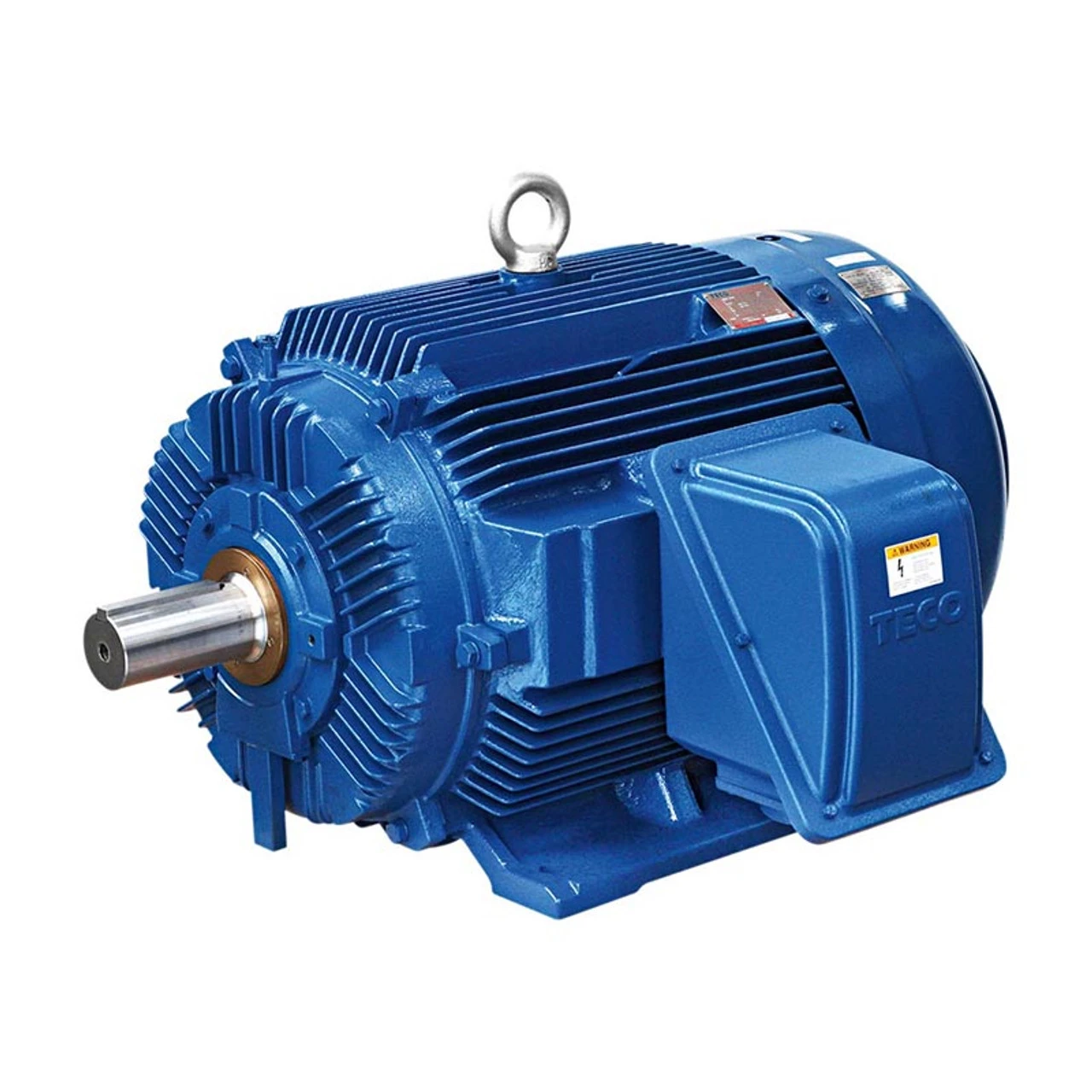

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 3 hp 1200 RPM, 4.02 amps 460 Volts 60 Hz Three Phase

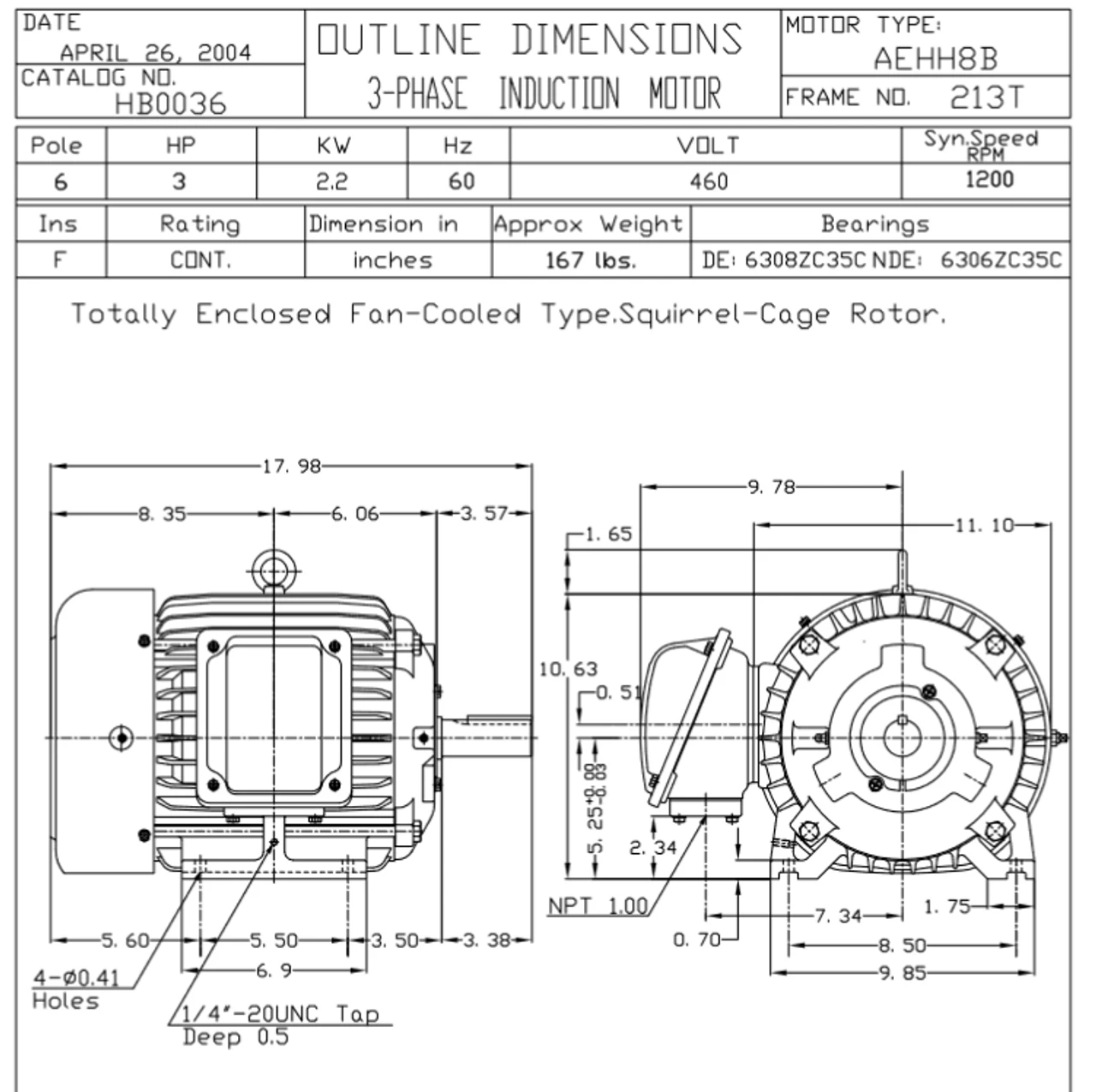

- NEMA 213T Frame, 3 3/8 x 1 3/8″ Dia. Keyed Shaft
- Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Part of the E2-E841 family of motors. For use in Severe Duty Petro-Chemical Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D
