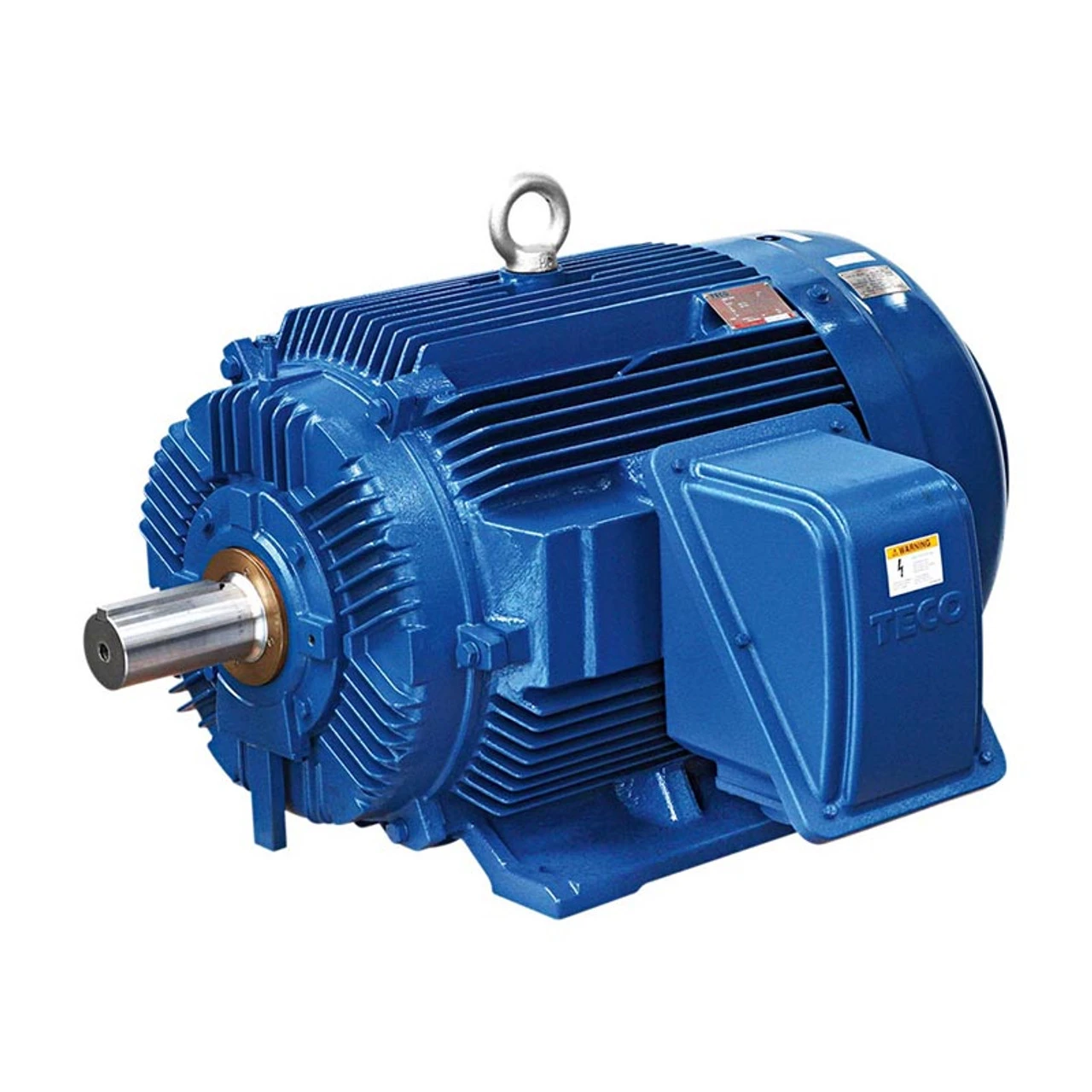

HB0034 TECO-Westinghouse 3 Hp 1800 RPM 182T 460V TEFC Severe Duty Petro-Chem 3-Ph Motor
Original price was: $379.00.$99.99Current price is: $99.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 3 hp 1800 RPM, 3.85 amps 460 Volts 60 Hz Three Phase
- NEMA 182T Frame, 2 3/4 x 1 1/8″ Dia. Keyed Shaft
- Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Part of the E2-E841 family of motors. For use in Severe Duty Petro-Chemical Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D
