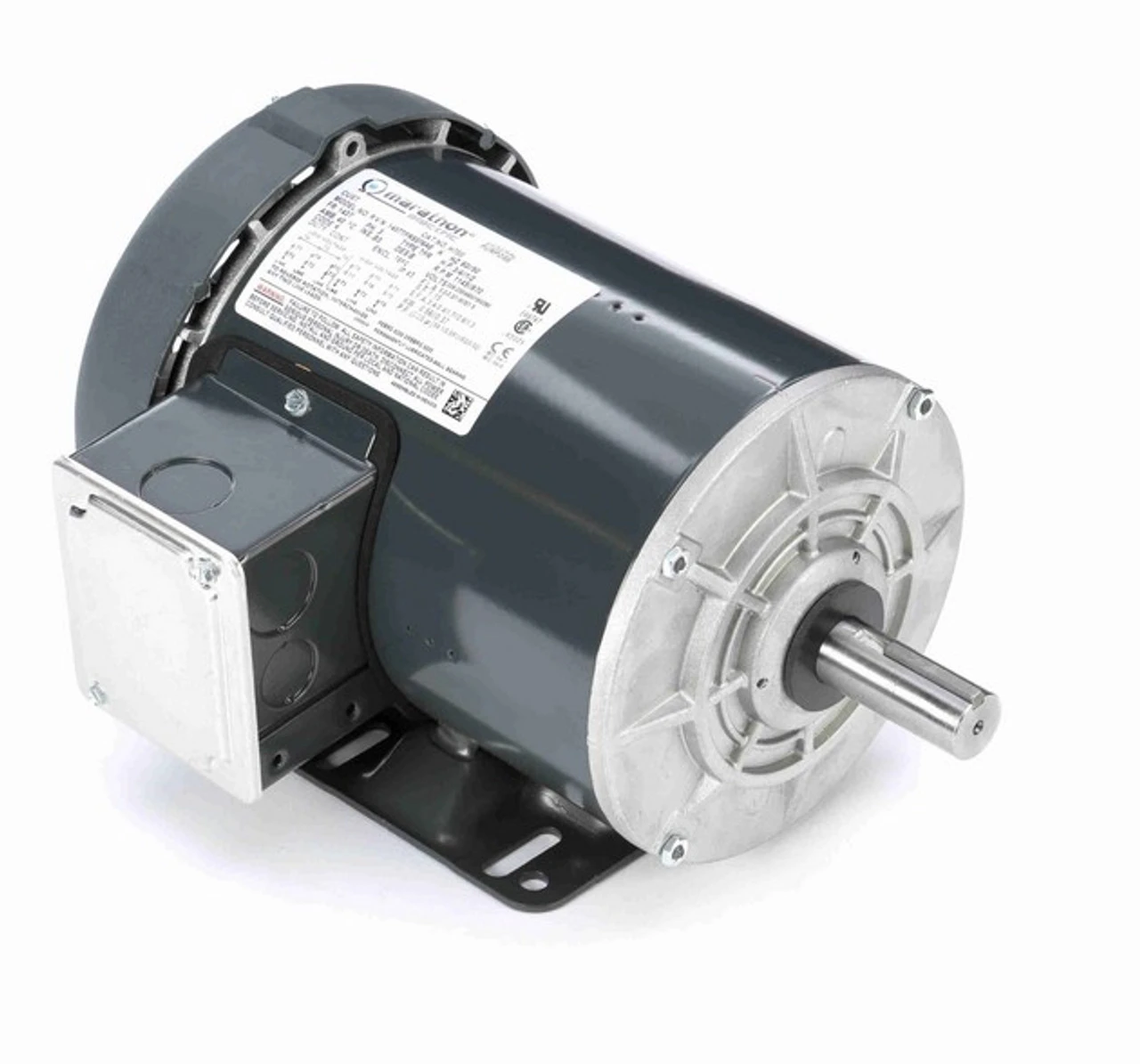

H700 Marathon 3/4 Hp 208-230/460V 1200 RPM 3-Phase 143T Frame TEFC (rigid Base) Motor

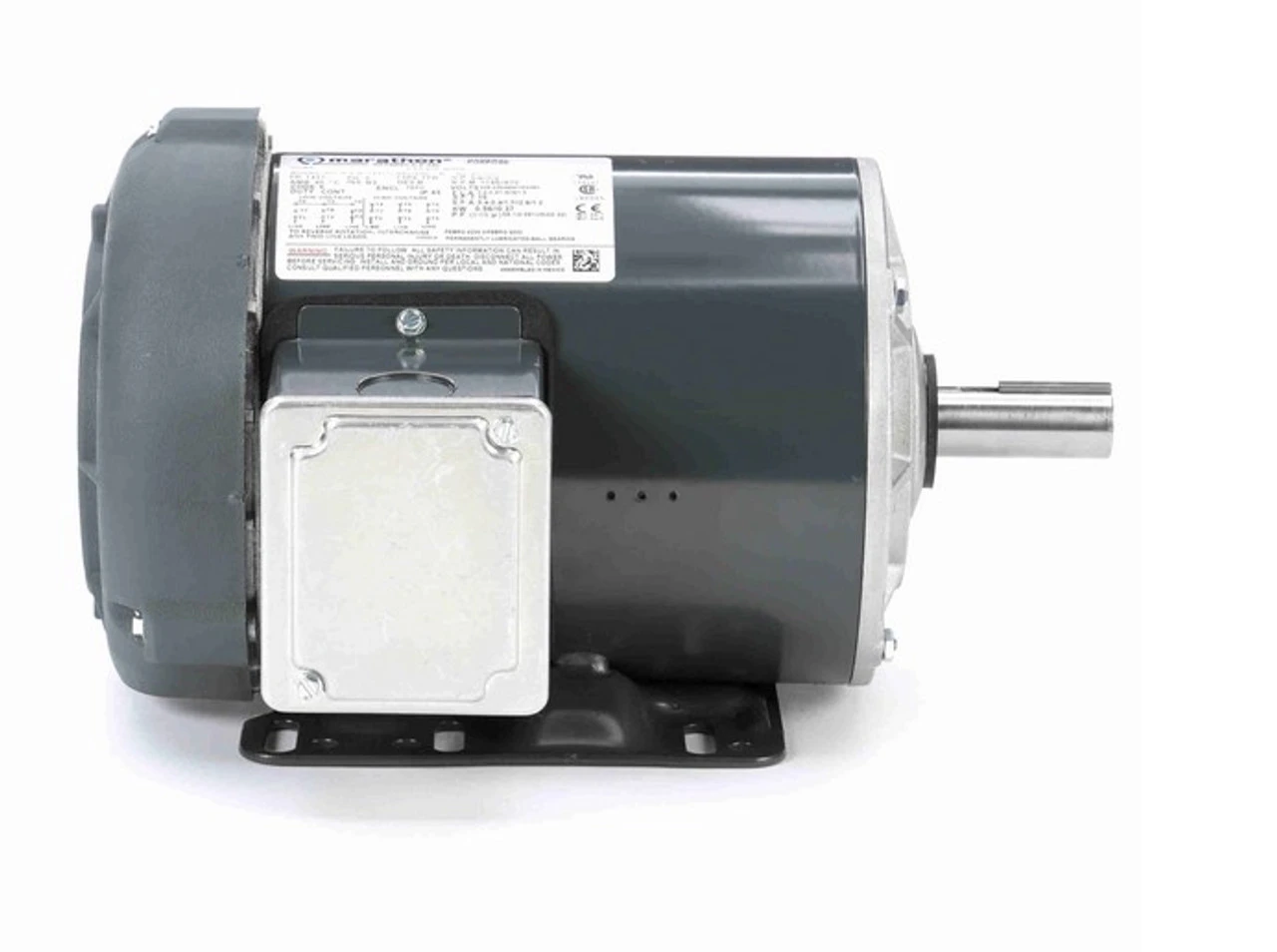

H700 Marathon 3/4 Hp 208-230/460V 1200 RPM 3-Phase 143T Frame TEFC (rigid Base) Motor - Image 2

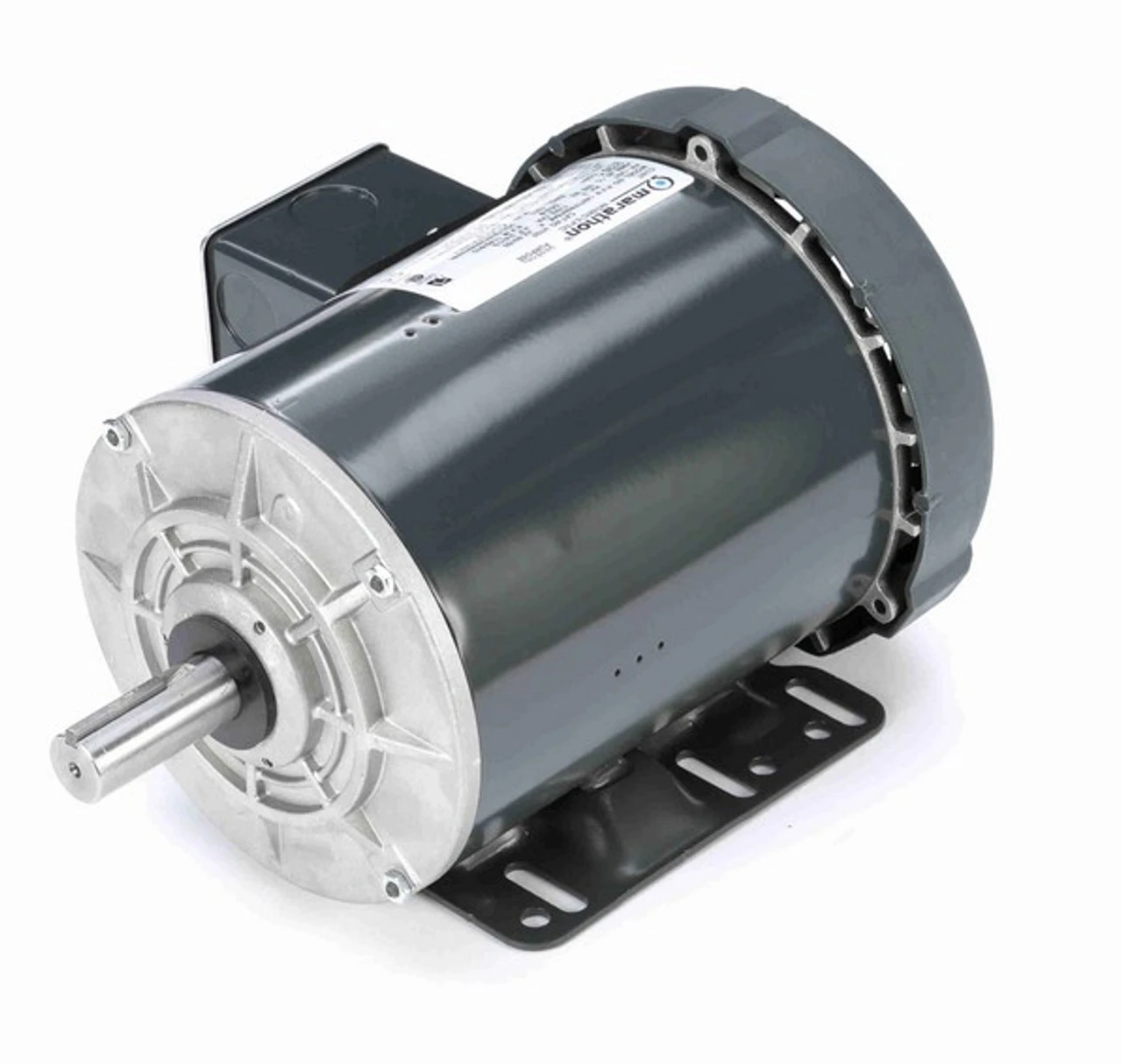

H700 Marathon 3/4 Hp 208-230/460V 1200 RPM 3-Phase 143T Frame TEFC (rigid Base) Motor - Image 3

H700 Marathon 3/4 Hp 208-230/460V 1200 RPM 3-Phase 143T Frame TEFC (rigid Base) Motor - Image 4

H700 Marathon 3/4 Hp 208-230/460V 1200 RPM 3-Phase 143T Frame TEFC (rigid Base) Motor

Original price was: $370.00.Current price is: $99.99.

SKU: ZWXLY 1698656168 Categories: Electric Motors, Leeson/Marathon Electric Motors Tag: Marathon

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

3/4 hp 1200 RPM, 3.2-3.2/1.6 amps 208-230/460 Volts 60hz. Three Phase
NEMA 143T frame, Keyed Shaft 7/8″ Diameter x 2 1/4″
Service Factor: 1.15, Thermal Overload Protection: None
Rigid Base, Reversible, Ball Bearings, Class B Insulation
1 Year Manufacture Warranty

This is a general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled

Marathon # 143TTFR5376
Replaces Leeson C143T11FB2D, 121009.00
