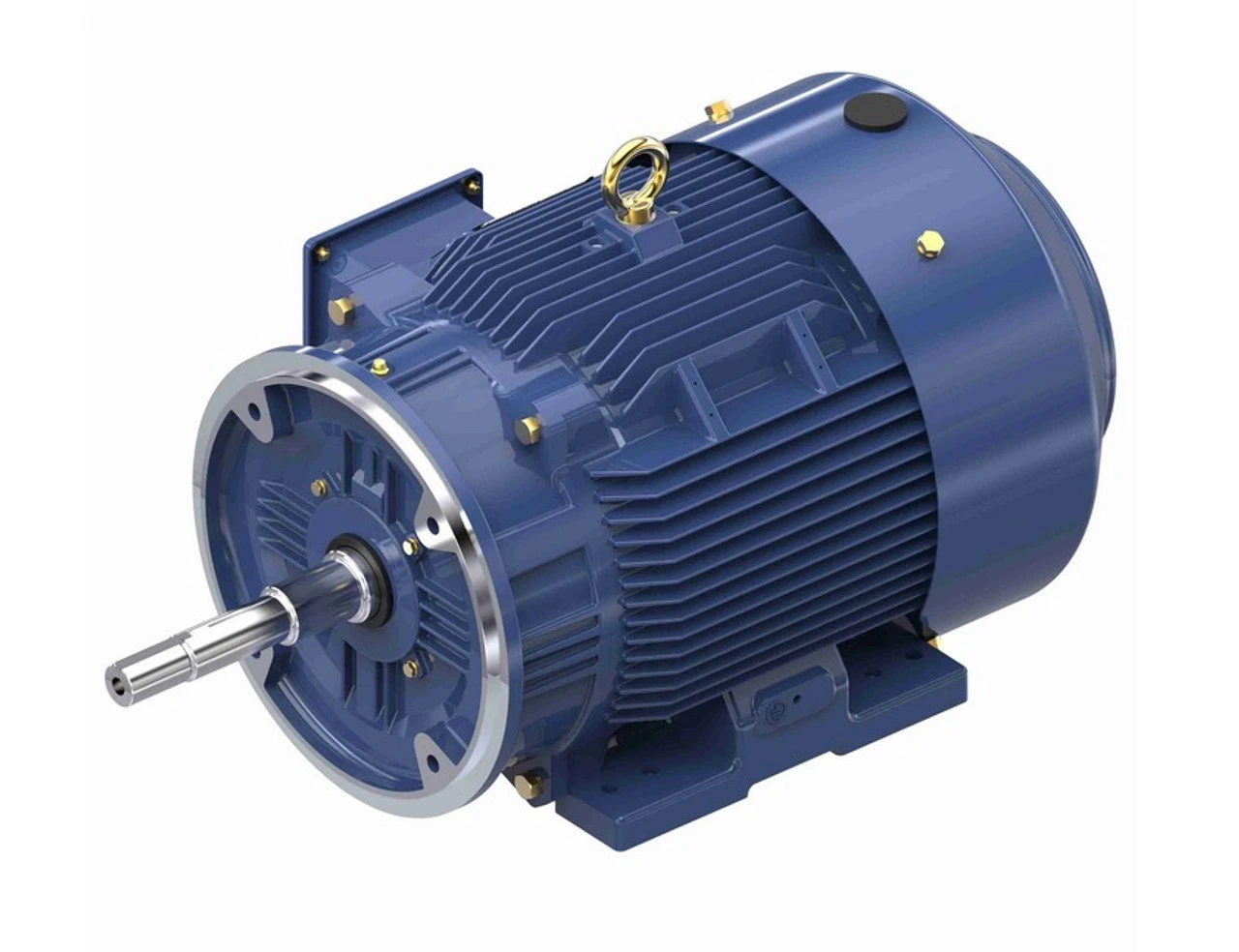

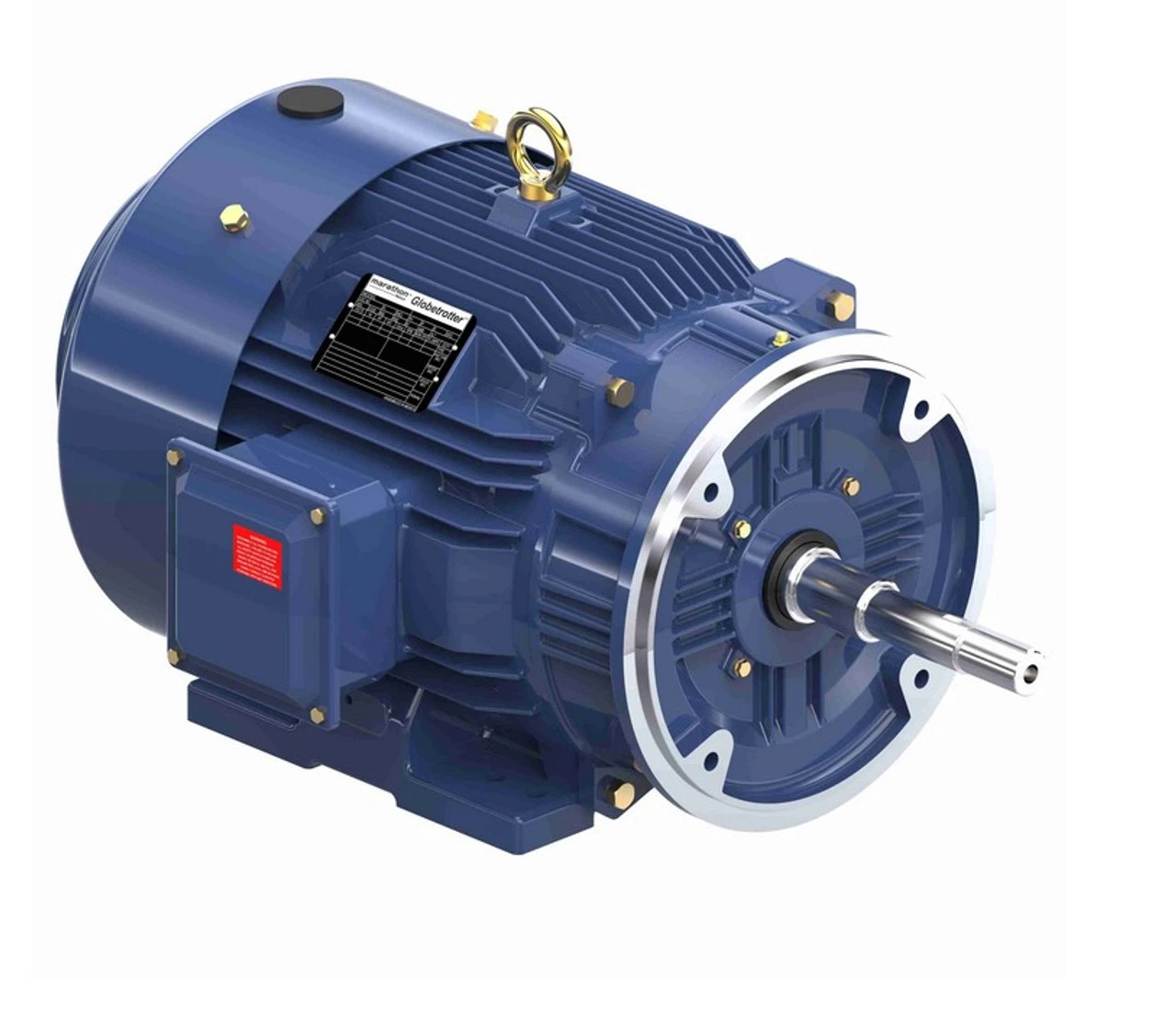

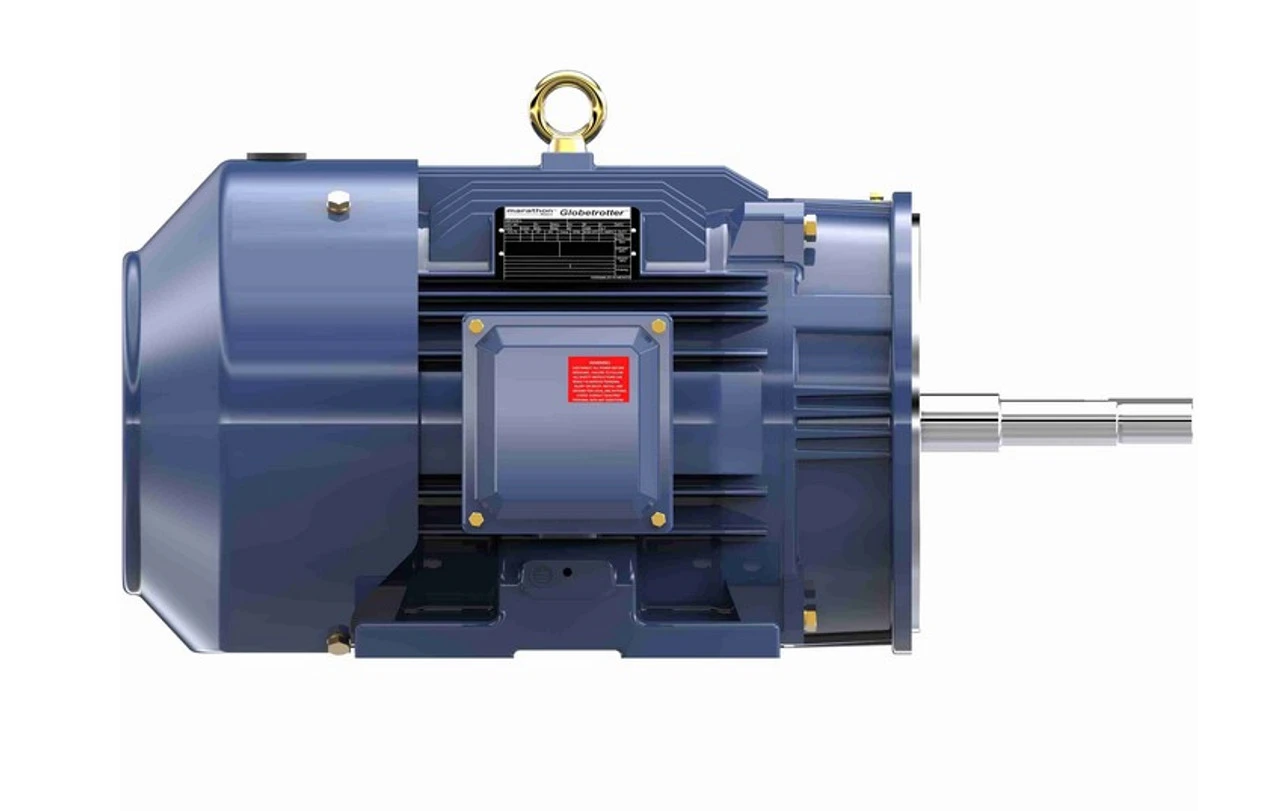

GT3527A Marathon 25 Hp 3600 RPM 575V 284JP Frame (Rigid Base) TEFC 3-Phase Close-Coupled Pump Motor
Original price was: $341.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 25 hp 3600 RPM, 24.0 amps 575 Volts 60 Hz. 3-Phase Motor
- NEMA 284JP Cast Iron Frame Special Shaft
- Service Factor: 1.15, Overload Protection = None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
Close Coupled pump motor with a C-face mount. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. GT3527A
