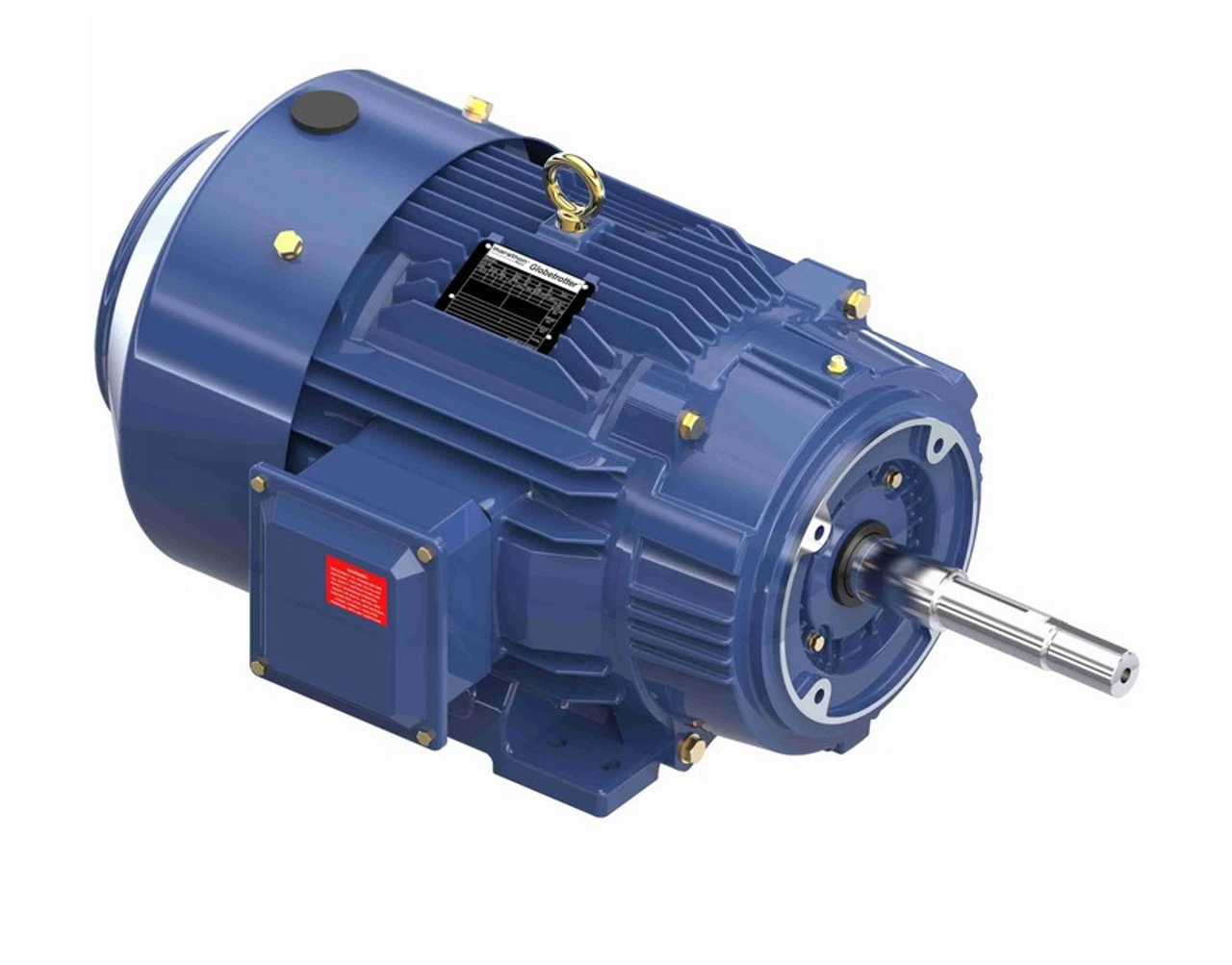

GT3522A Marathon 15 Hp 1800 RPM 575V 254JP Frame (Rigid Base) TEFC 3-Phase Close-Coupled Pump Motor

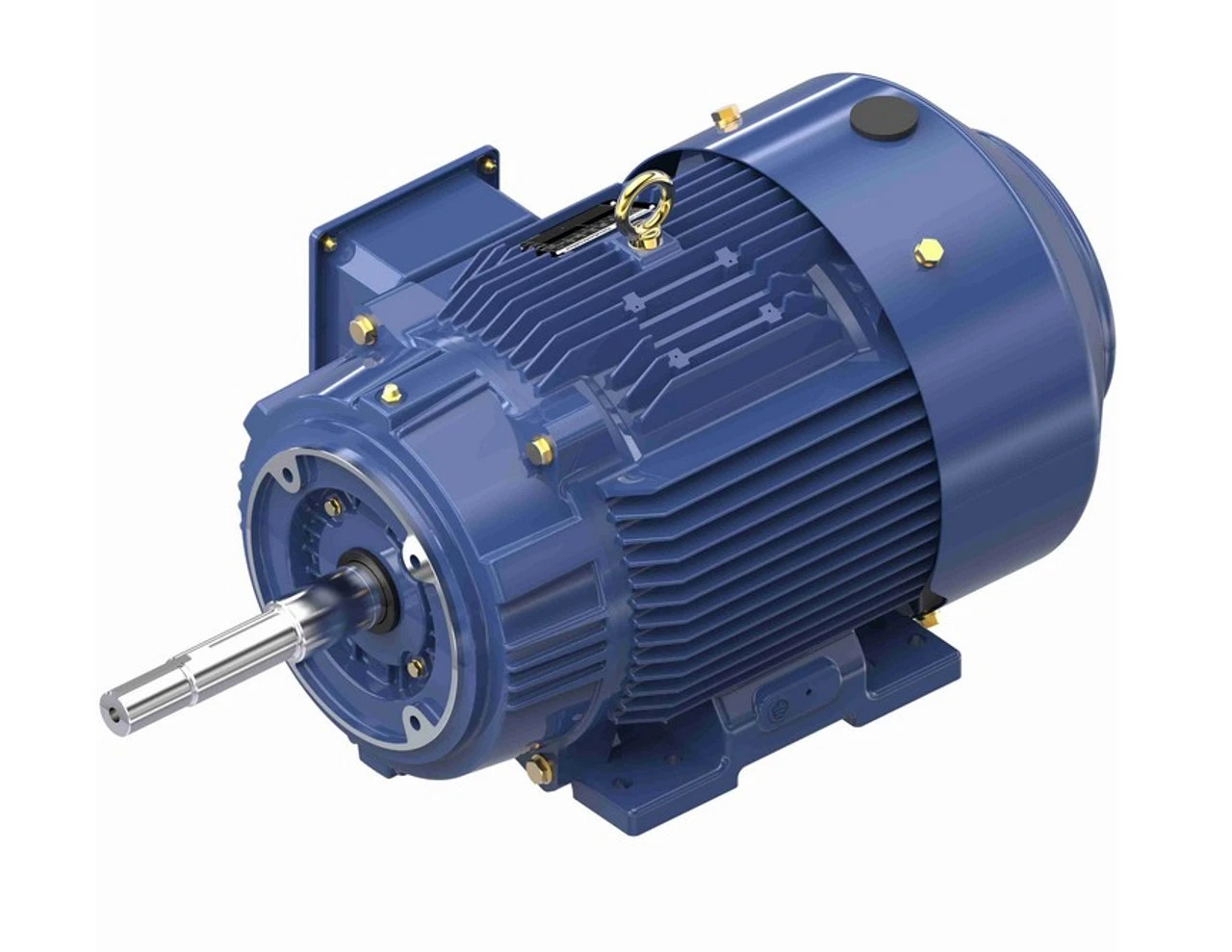

GT3522A Marathon 15 Hp 1800 RPM 575V 254JP Frame (Rigid Base) TEFC 3-Phase Close-Coupled Pump Motor - Image 2

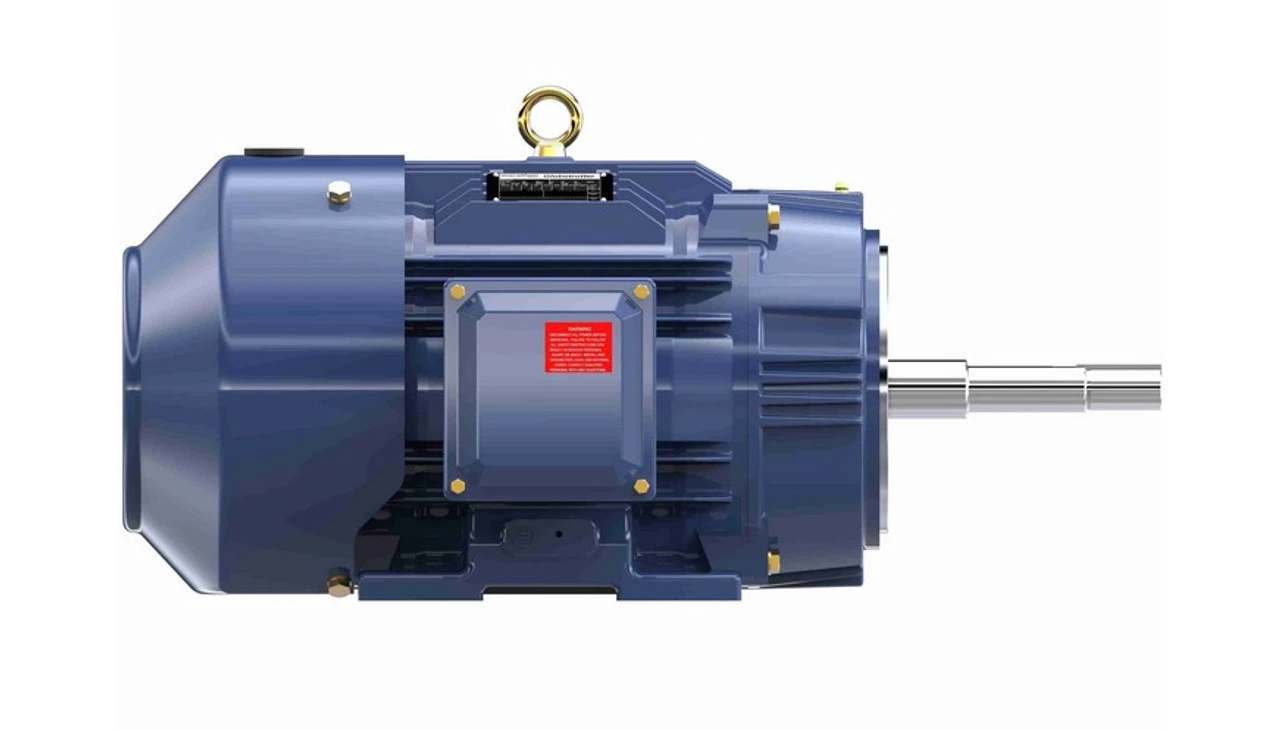

GT3522A Marathon 15 Hp 1800 RPM 575V 254JP Frame (Rigid Base) TEFC 3-Phase Close-Coupled Pump Motor - Image 3

GT3522A Marathon 15 Hp 1800 RPM 575V 254JP Frame (Rigid Base) TEFC 3-Phase Close-Coupled Pump Motor

Original price was: $344.00.Current price is: $97.99.

SKU: ZWXLY 1698655532 Categories: Electric Motors, Leeson/Marathon Electric Motors Tag: Marathon

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

15 hp 1800 RPM, 15.1 amps 575 Volts 60 Hz. 3-Phase Motor
NEMA 254JP Cast Iron Frame Special Shaft
Service Factor: 1.15, Overload Protection = None
Rigid Base, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty

Close Coupled pump motor with a C-face mount. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. GT3522A
