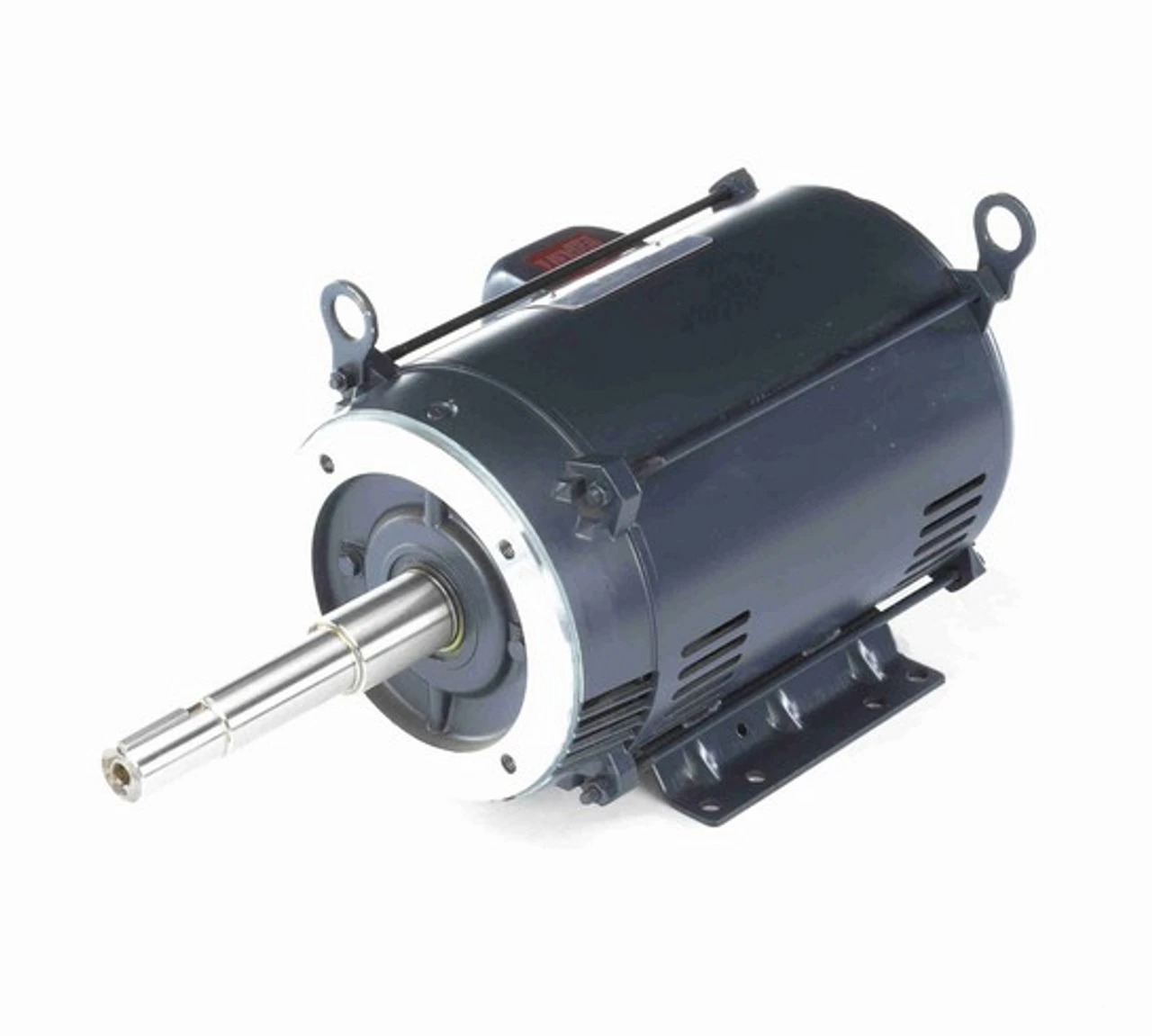

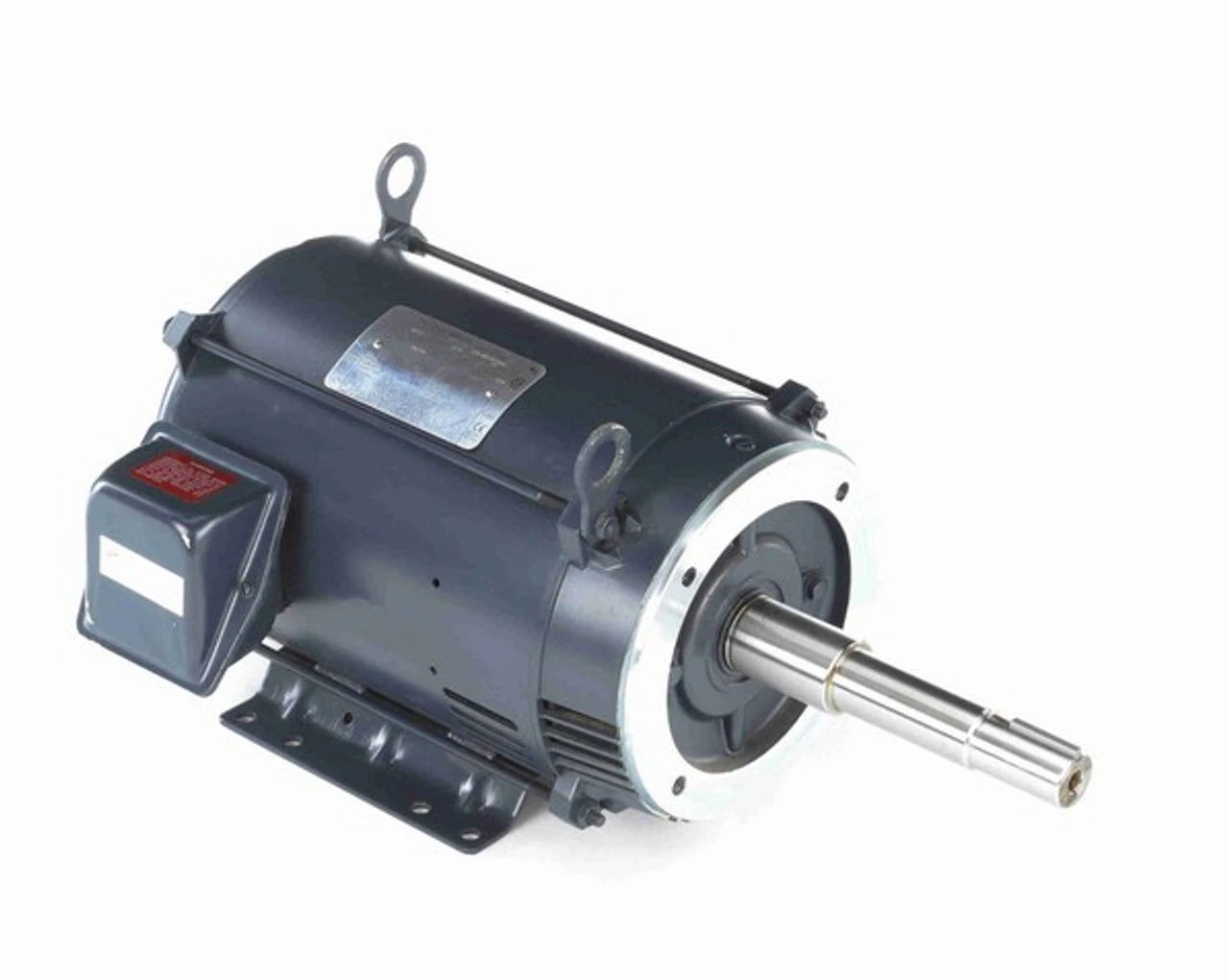

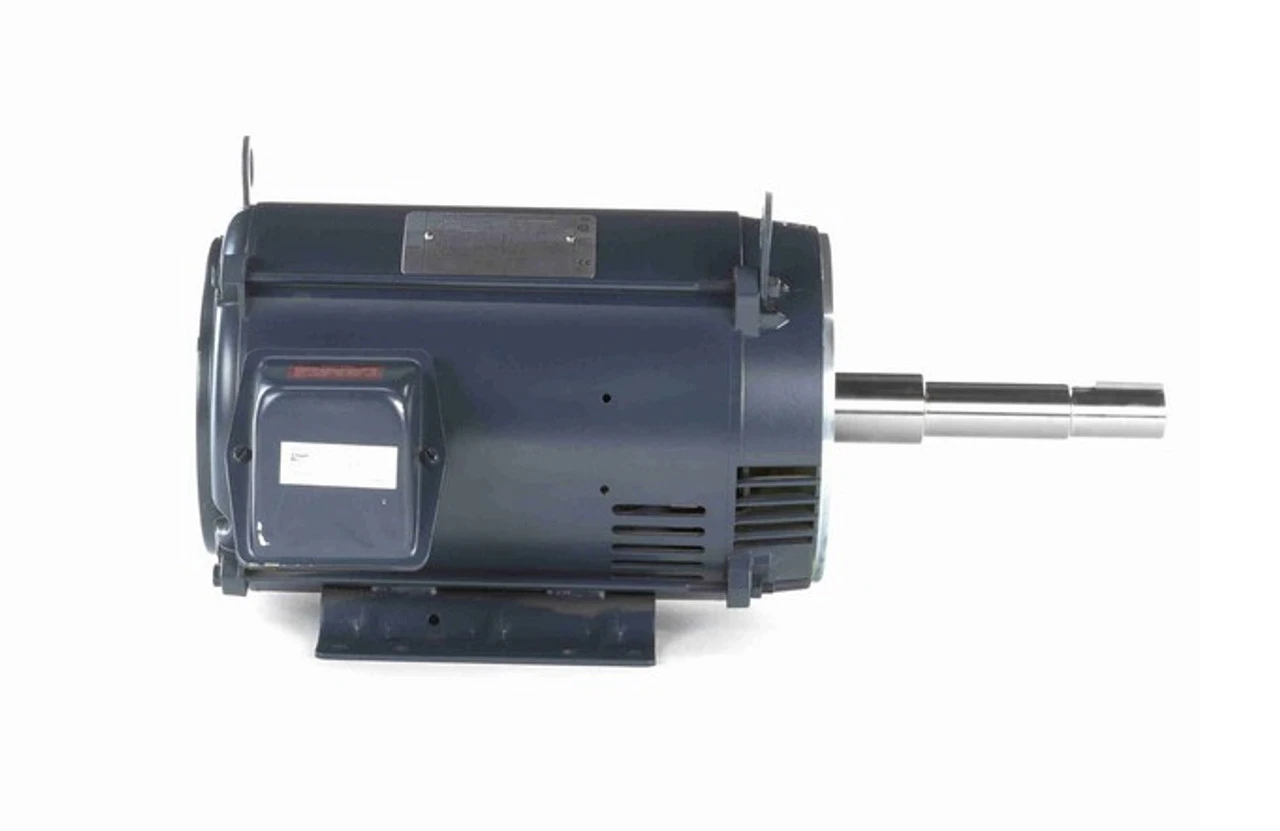

GT2516 Marathon 7 1/2 Hp 1800 RPM 575V 213JP Frame (Rigid Base) ODP 3-Phase Close-Coupled Pump Motor
Original price was: $362.00.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 7 1/2 hp 1800 RPM, 7.4 amps 575 Volts 60 Hz. 3-Phase Motor
- NEMA 213JP Frame Special Shaft
- Service Factor: 1.15, Overload Protection = None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
Close Coupled pump motor with a C-face mount. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. GT2516
