GP0036G TECO Westinghouse SGR 3 Hp 1200 RPM 213/215TC Frame 230/460V TEFC 3-Phase Motor
Original price was: $349.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period

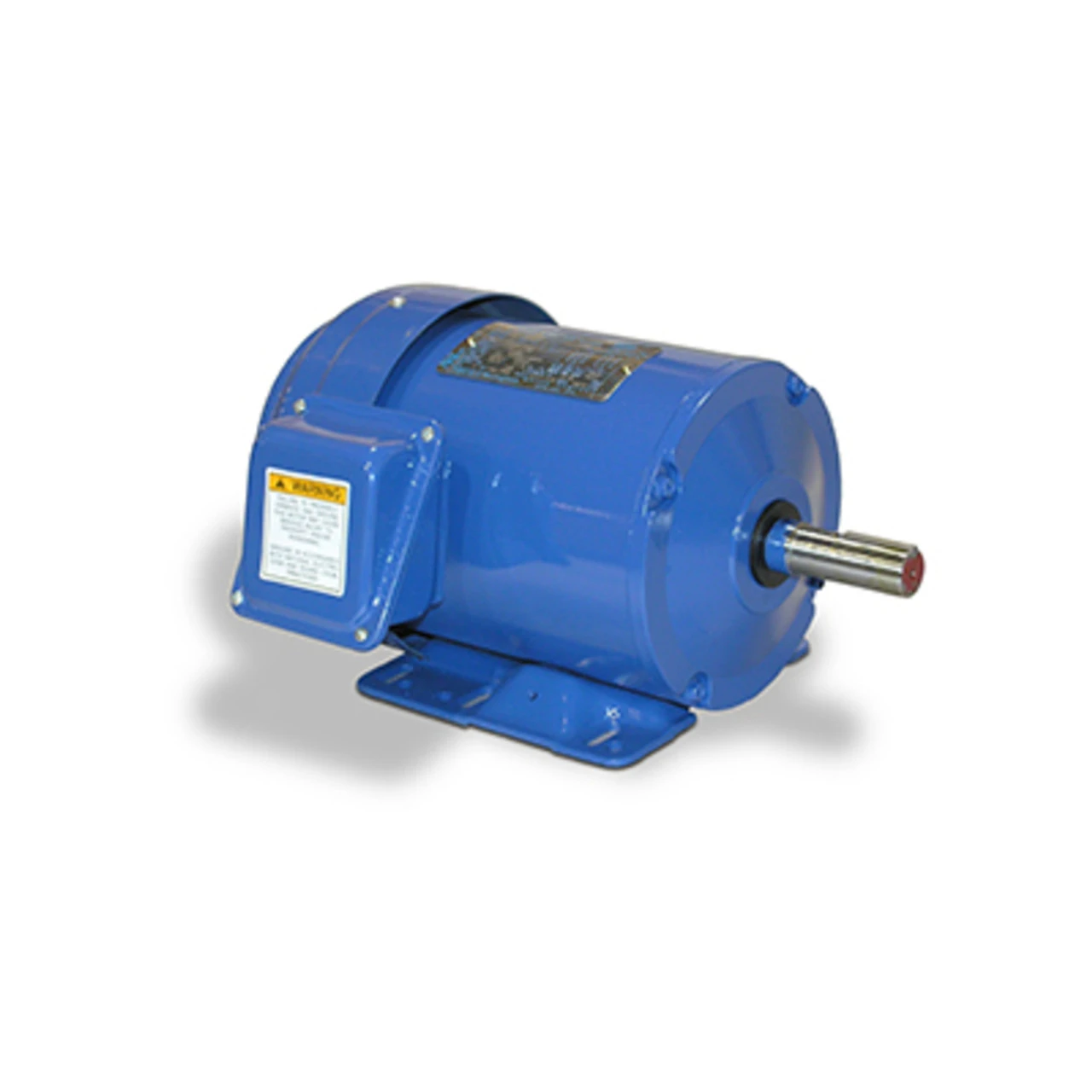

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 3 hp 1200 RPM, 9.23/4.62 amps 230/460 Volts 60 Hz. Three Phase

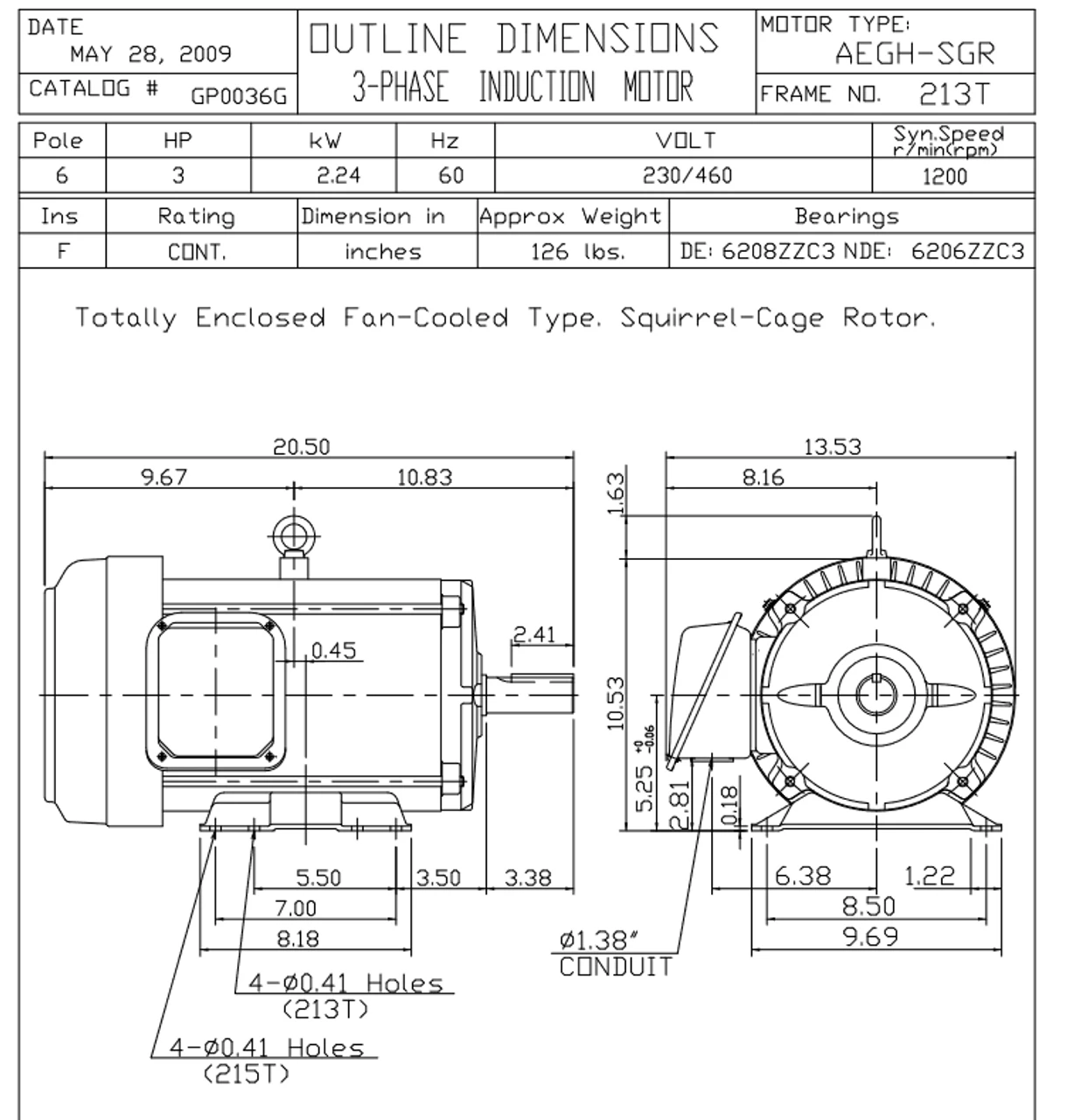

- NEMA 213/215TC Frame, Keyed Shaft 1 3/8″ Diameter x 3 3/8″
- Rolled Steel Frame, Enclosure: Totally Enclosed Fan Cooled (IP44)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Motor comes with Shaft Grounding Rings (SGR) to protect bearings from excessive currents. Applications: Fans & Blowers, Pumps, Compressors, Mixers, Conveyors, HVAC Equipment
