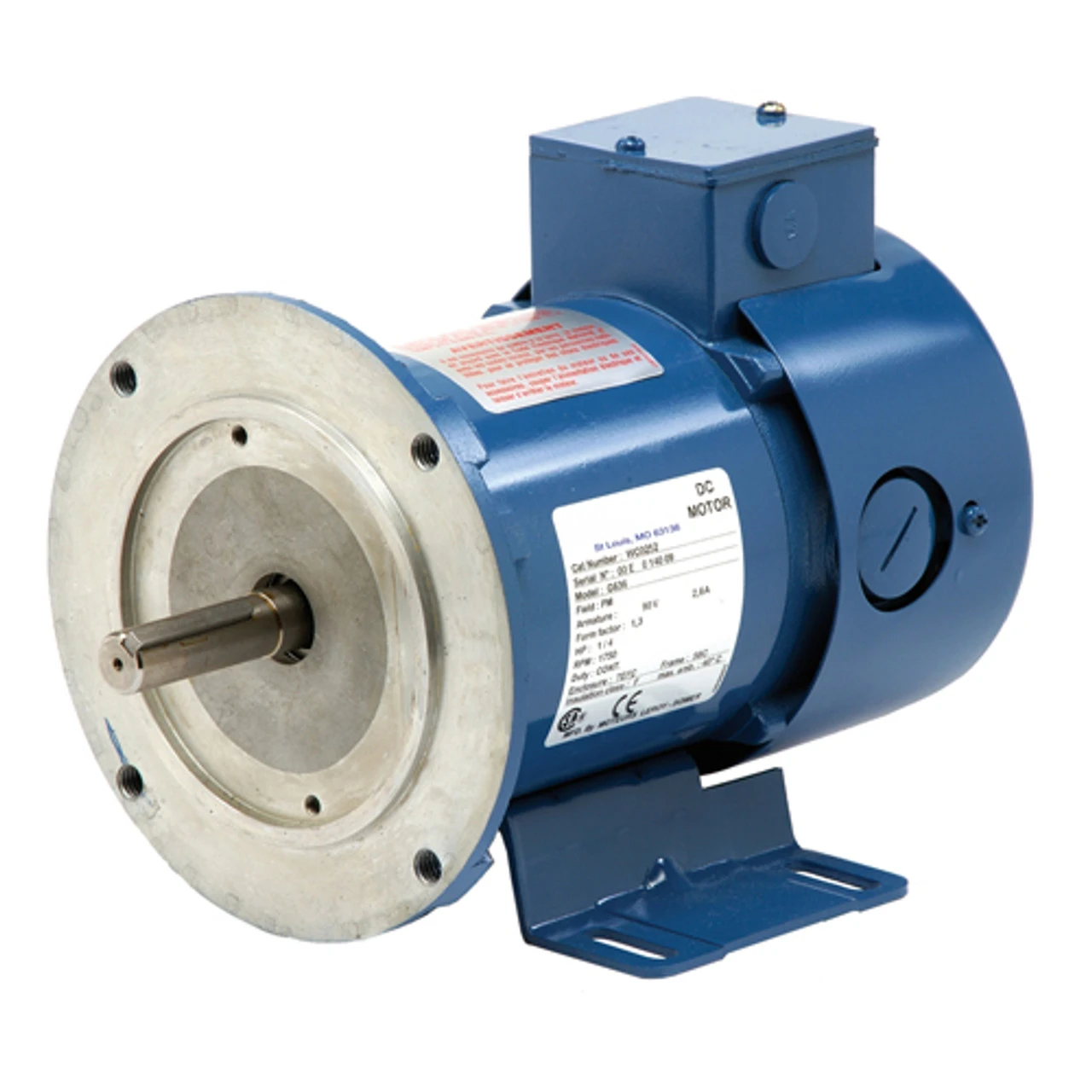

G642 Nidec 3/4 Hp 1800 RPM 56C Frame (Rigid Base) 180V TEFC DC Permanent Magnet Motor
Original price was: $375.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 3/4 hp 1800 RPM, 4.0 amps 180 Volts DC
- NEMA 56C Rolled Steel Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
- 20:1 Constant Speed Range
- Removable Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
For general on industrial equipment including fans, pumps, and compressors. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. G642
