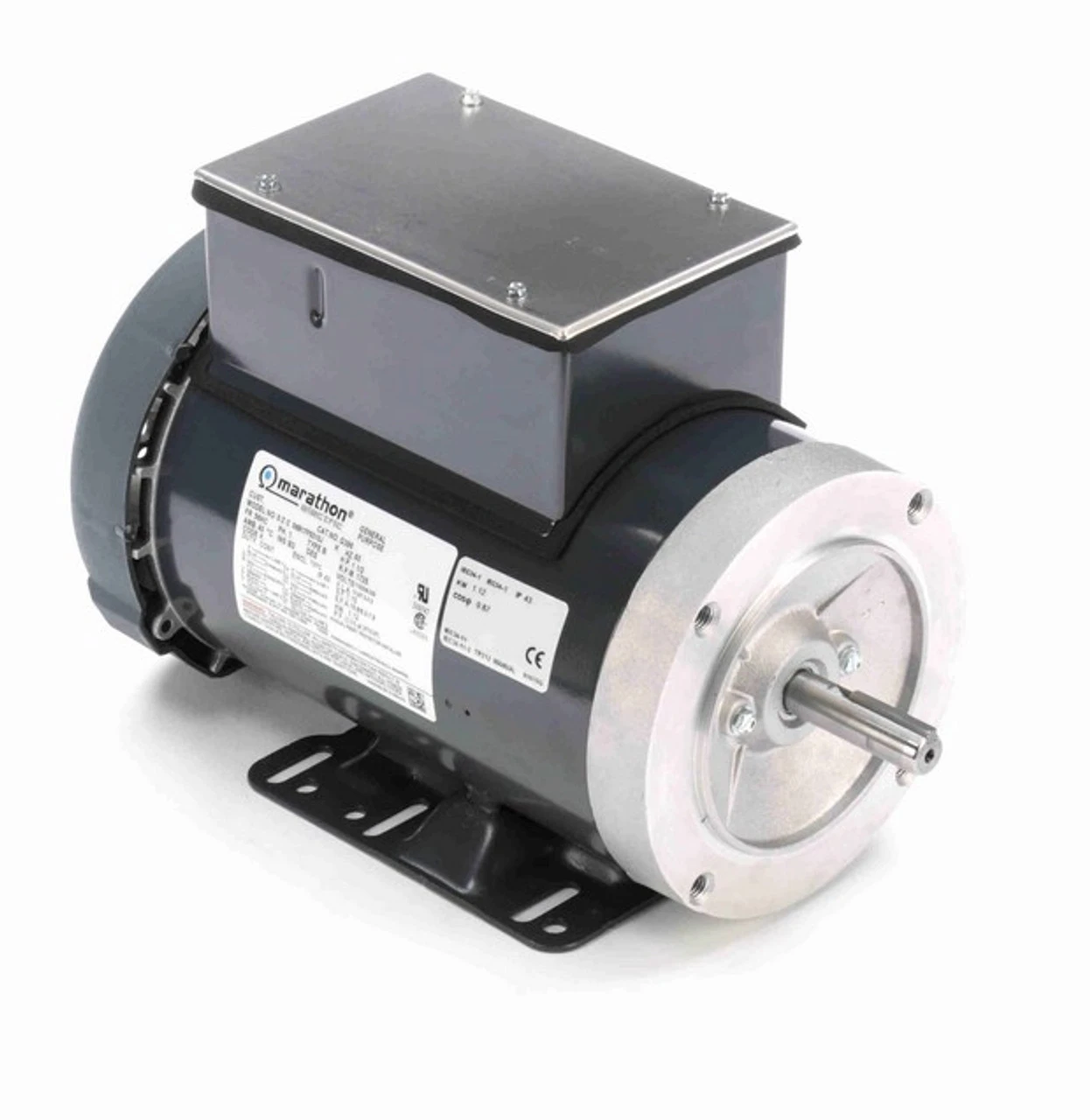

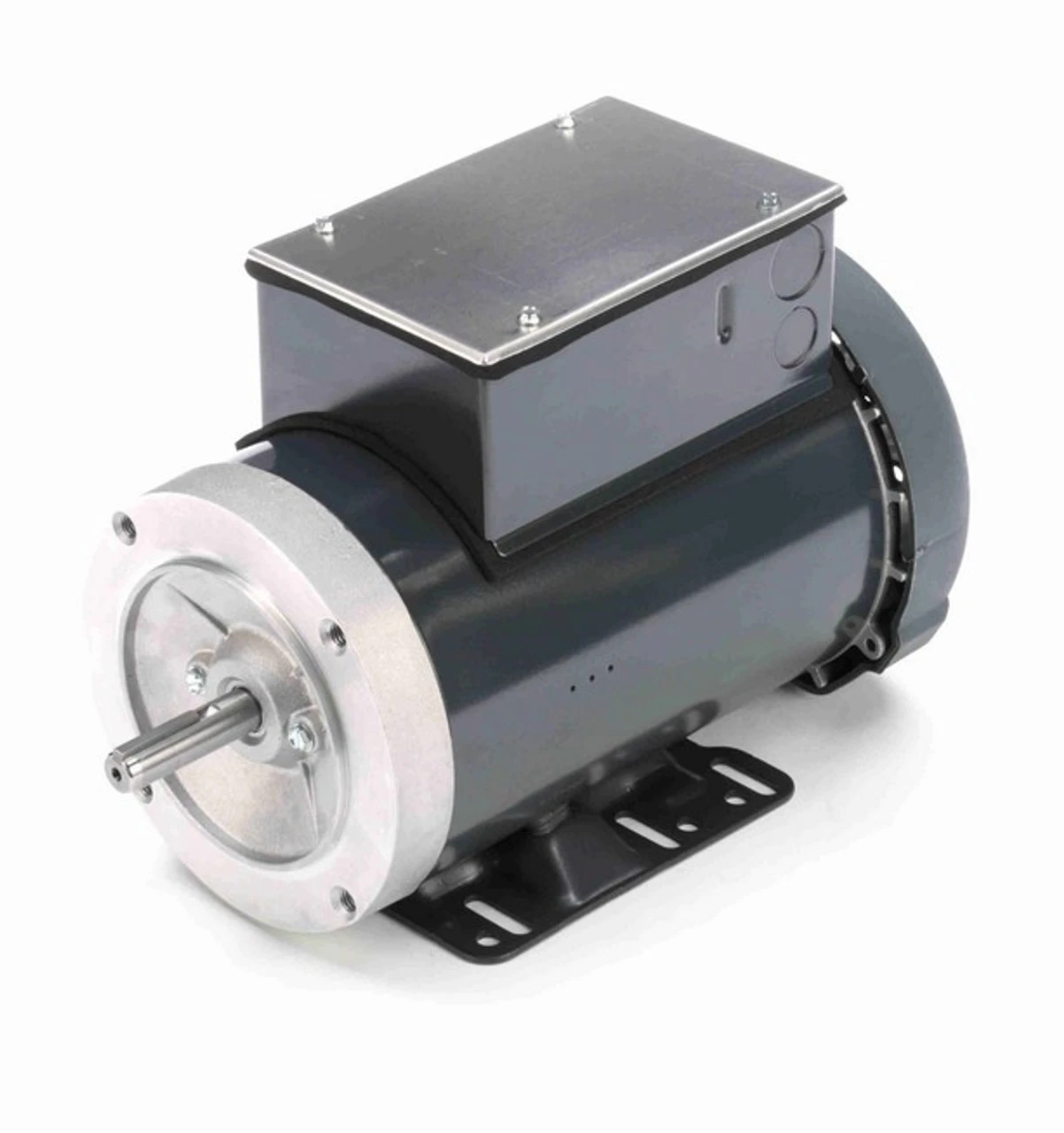

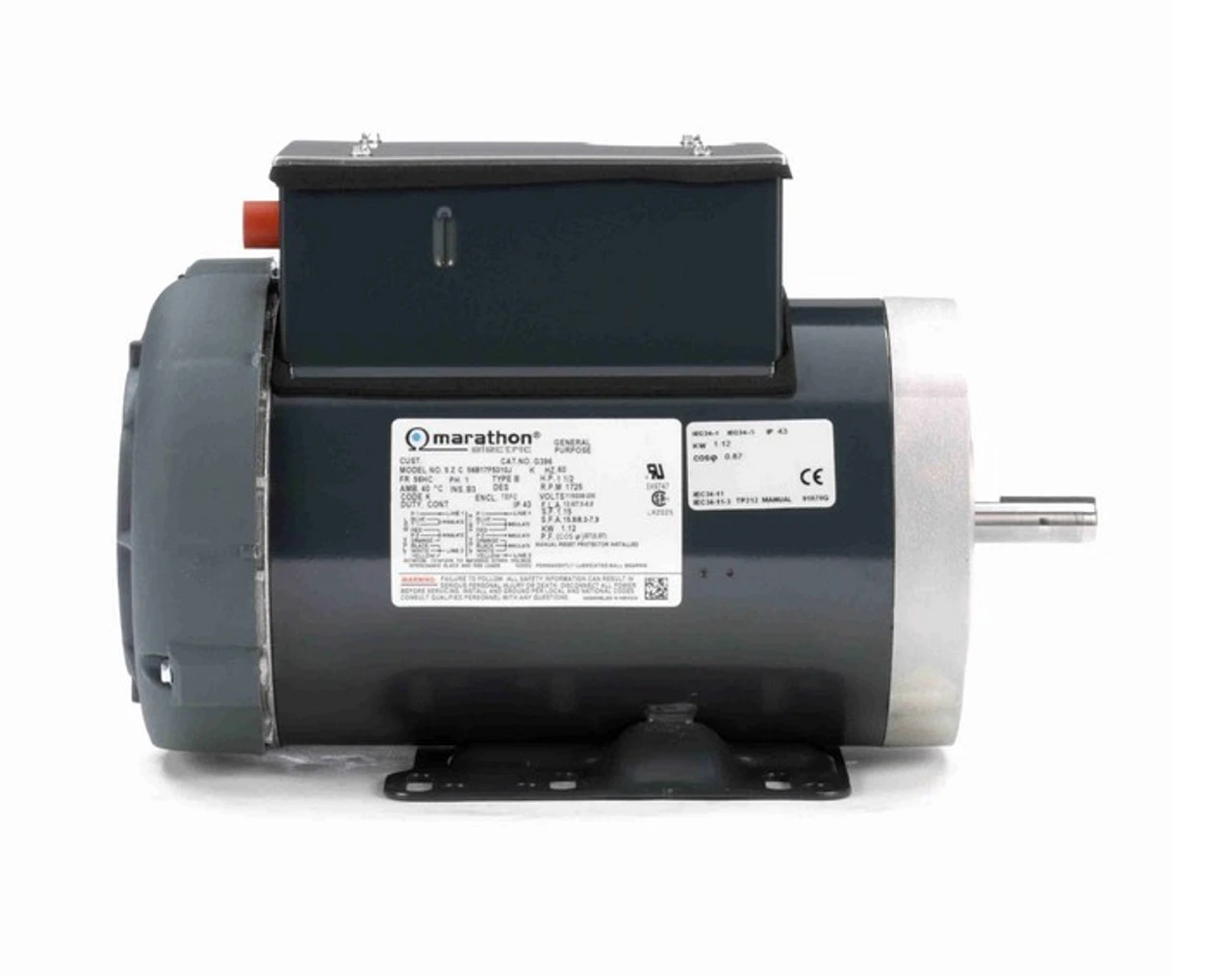

G396 Marathon 1 1/2 Hp 115/208-230V 1800 RPM 56HC Frame TEFC Cap Start/Run Motor
Original price was: $325.00.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 1/2 hp 1800 RPM, 13.6/7.5-6.8 amps 115/208-230 Volts 60hz. Capacitor Start Capacitor Run Motor
- NEMA 56HC frame, C-face, Keyed Shaft 5/8″ Diameter x 2″
- Service Factor: 1.15, Overload protection = Manual
- Rigid Base, Reversible, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty

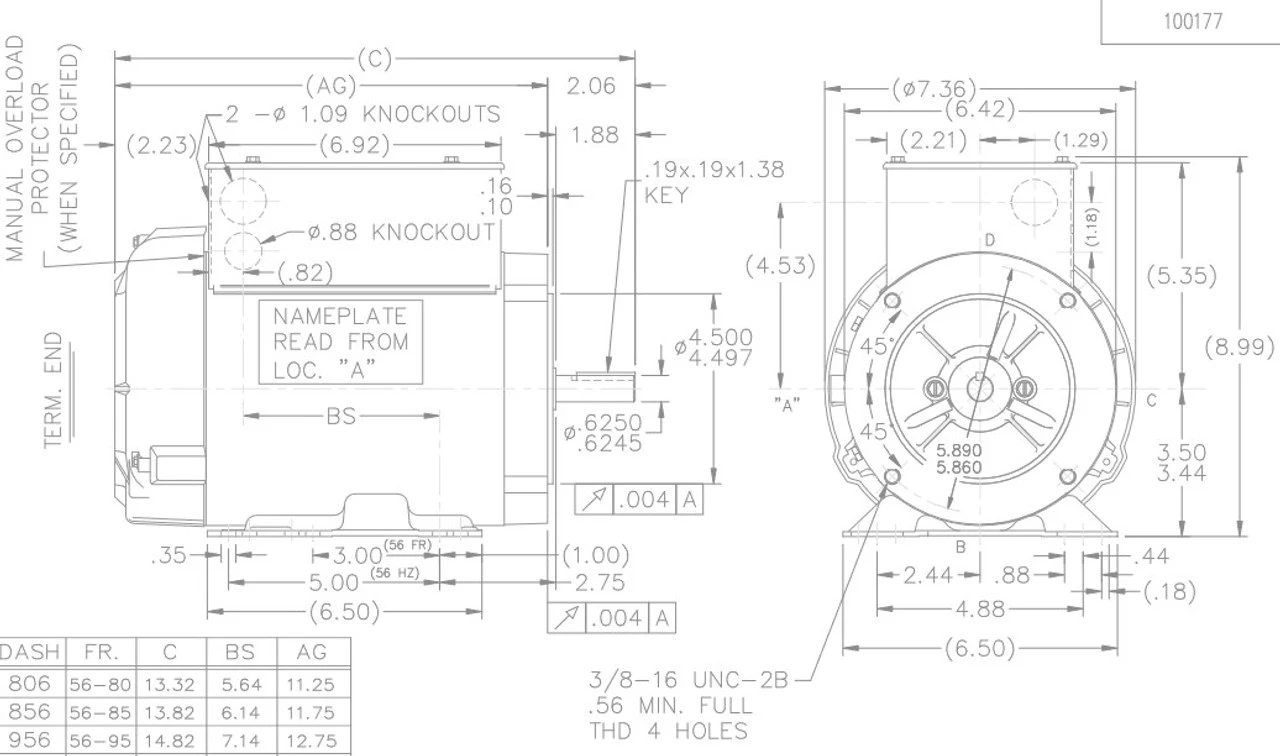

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Motor has 4 threaded bolt holes on face for mounting a pump or gear-box. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. 056B17F5310
