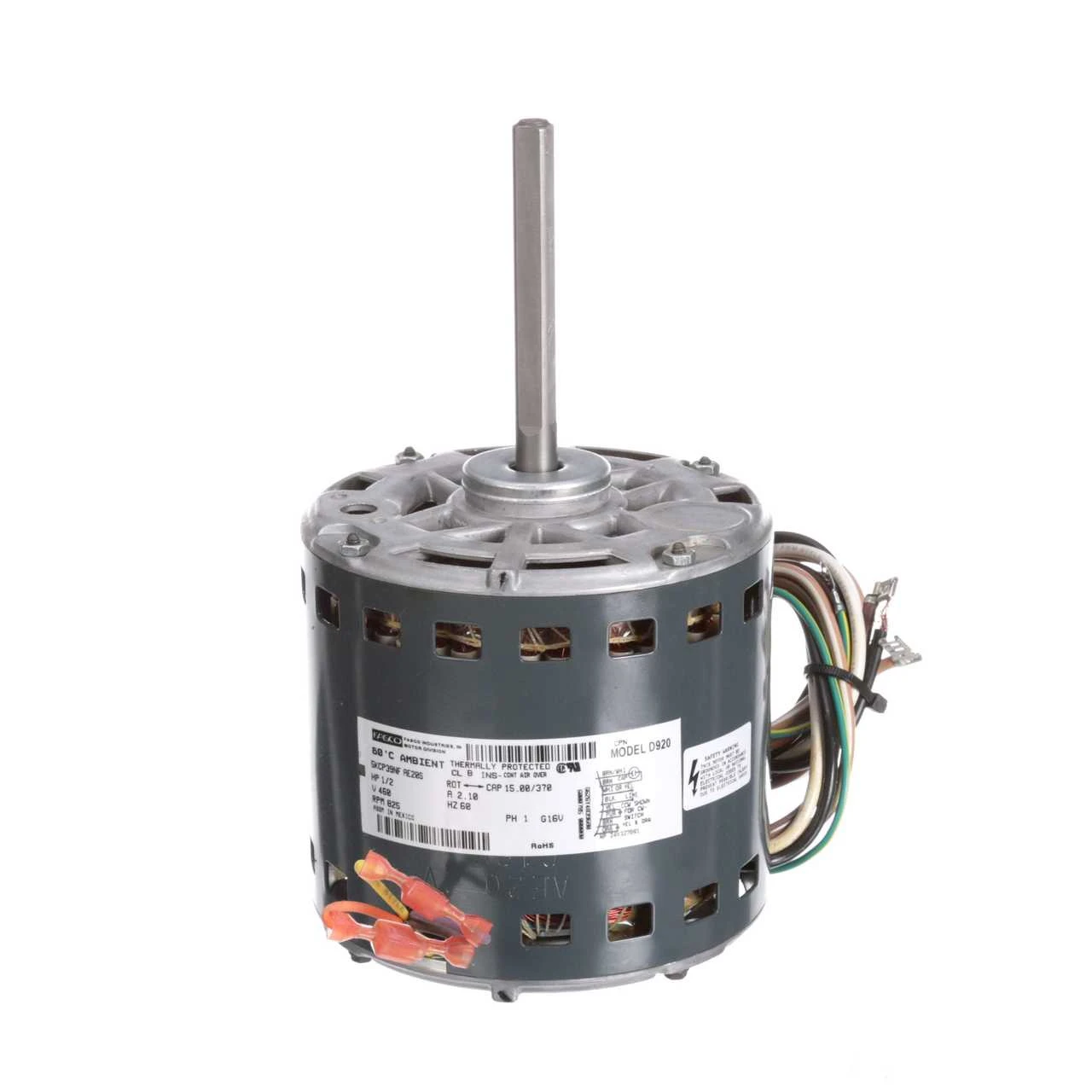

- 1/2 hp 825 RPM, 2.1 amps, 460 Volts 60hz. Single Phase
- Shaft: 1/2″ x 4 1/2″ Rotation = Reversible
- Bolt Circle – 5.2″
- Belly Band Mount or Base Mount
- Required 15 MFD 370V Capacitor Included
- Ball bearings
- Motor Length Less Shaft = 5 3/4″
- 1 Year Manufacture Warranty.
Application Information: Condenser Fan (Air Conditioner). Permanent Split Capacitor motor, Open Enclosure-air over. Shaft down or Horizontal mount. All angle mount ball bearings, CSA certified, UL recognized, 60 degrees ambient temperature rating. Does not come with conduit box.
