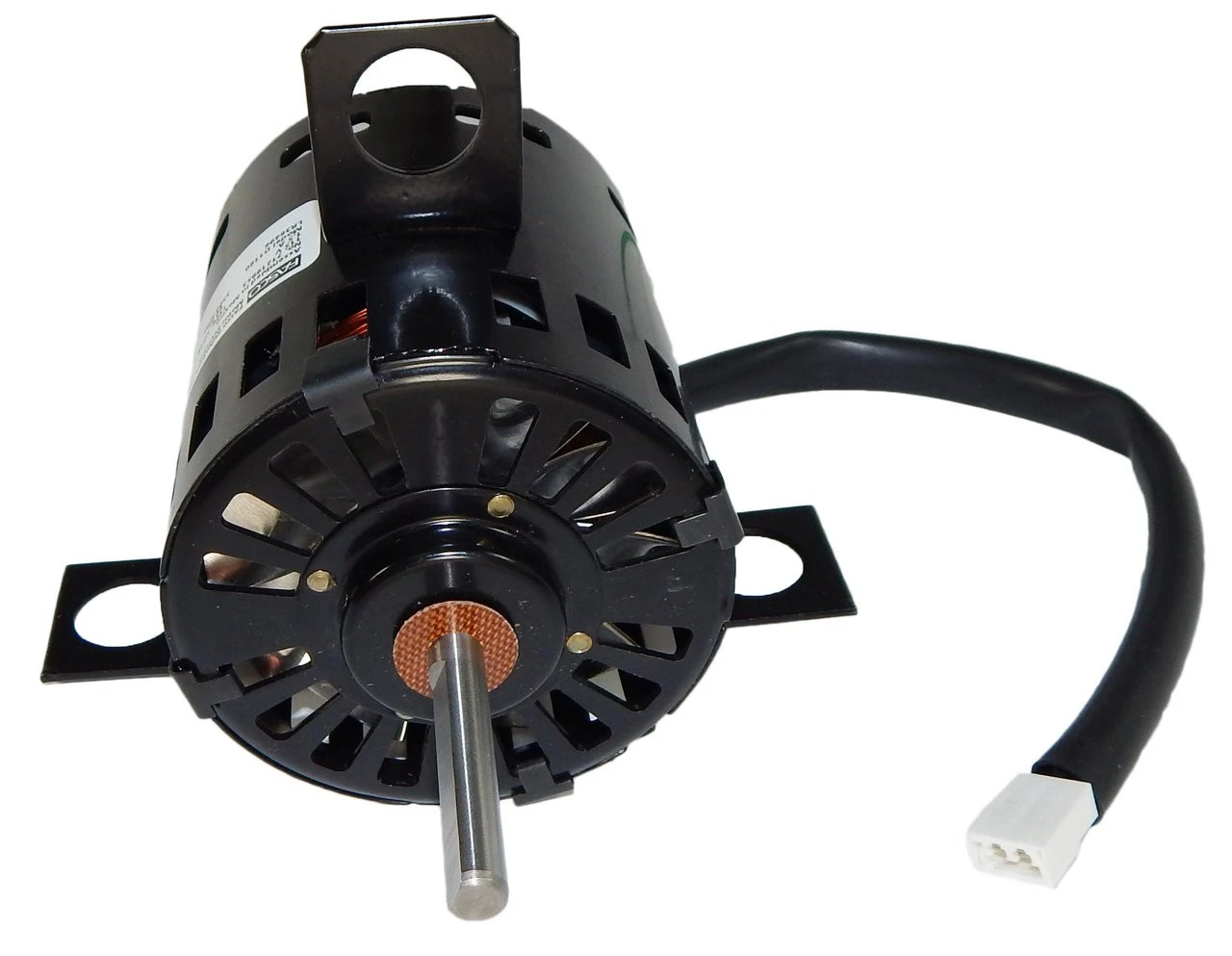

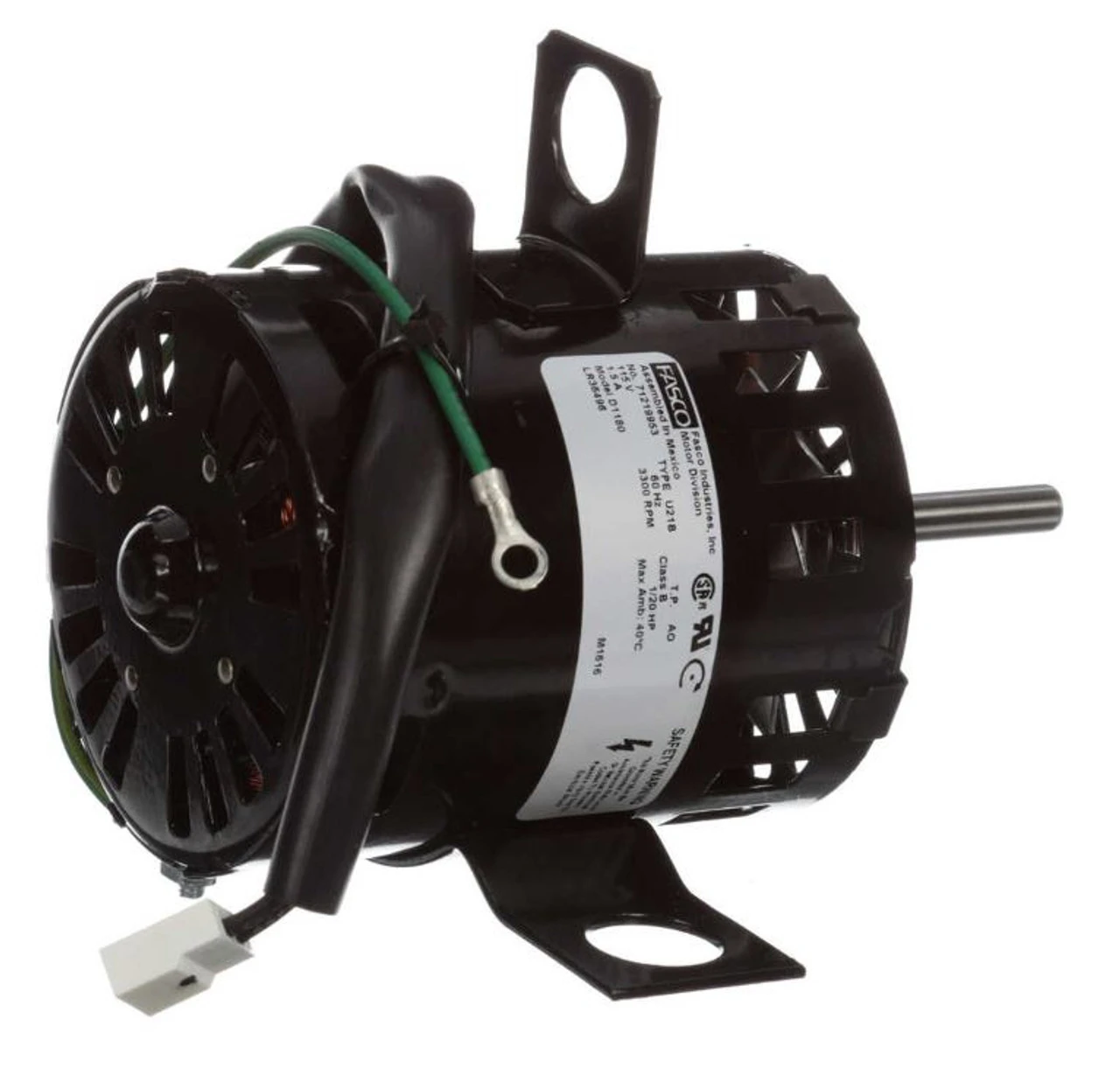

Fasco D1180 Motor | 1/20 Hp 3300 RPM CW 115 Volts (Bryant / Carrier)

CARRIER & BYRANT REPLACEMENT COMBUSTION FAN MOTOR

• 1/20 hp 3300 RPM, 1.5 Amps, 115 Volts 60 hz.
• Shaft: 5/16″ x 2-1/8″
• Rotation = CW Shaft End
• No Studs on either end of motor for mounting
• Lug Mount
• 3.3″ Diameter
• Motor Length Less Shaft = 3 5/8″
• 1 Year Manufacture Warranty

Note: If your plug is different then the one pictured you can cut your old plug and splice it to the new motor.

Suggested replacement reference for:
Carrier BDP HC27UE120, P251-2307, HC27VE120, 398A
Century/AO Smith Stock No. 580, A01180, JA1P053N, JA1P053, JA1P067N, JA1P067, JA1P084N, JA1P084
Fasco 7121-9953, 7121-7321
Emerson F33HXJB3622
Dayton 48GN73
Rotom FM-RFM580
Packard 82180

Will also work with Carrier # HC27UE123, JA1P085, JA1P085N. (you may have to splice the original wire connector to this motor)
