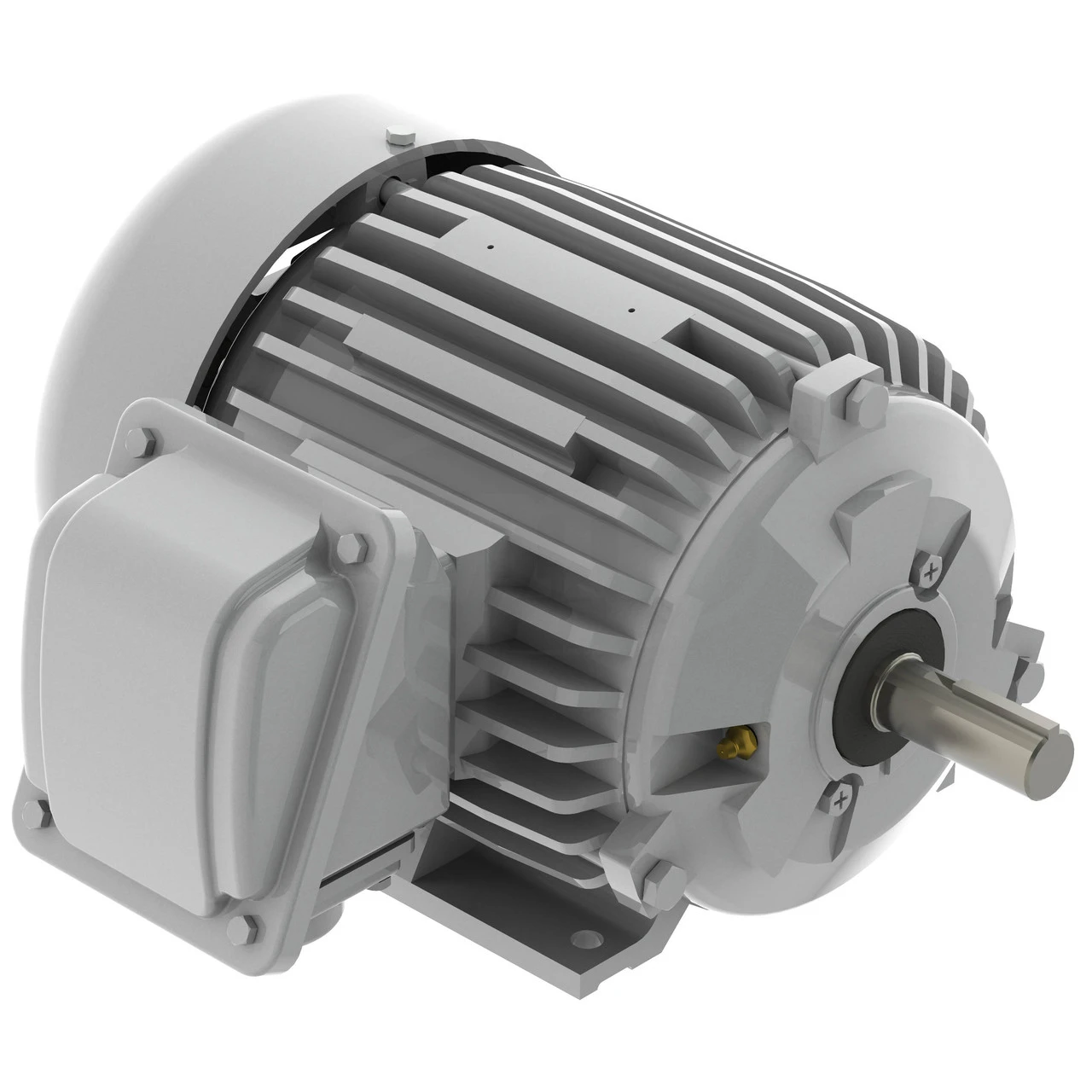

EP01025 TECO Westinghouse 10 Hp 3600 RPM 215T Cast Iron 575V TEFC Severe Duty 3-Phase Motor

EP01025 TECO Westinghouse 10 Hp 3600 RPM 215T Cast Iron 575V TEFC Severe Duty 3-Phase Motor - Image 2

EP01025 TECO Westinghouse 10 Hp 3600 RPM 215T Cast Iron 575V TEFC Severe Duty 3-Phase Motor -Electric Motor Warehouse Store ep1025 line 83590.1693235482

EP01025 TECO Westinghouse 10 Hp 3600 RPM 215T Cast Iron 575V TEFC Severe Duty 3-Phase Motor

Original price was: $375.00.Current price is: $96.99.

SKU: ZWXLY 1698661931 Category: Electric Motors Tag: TECO WESTINGHOUSE

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

10 hp 3600 RPM, 9.2 amps 575 Volts 60Hz. Three Phase

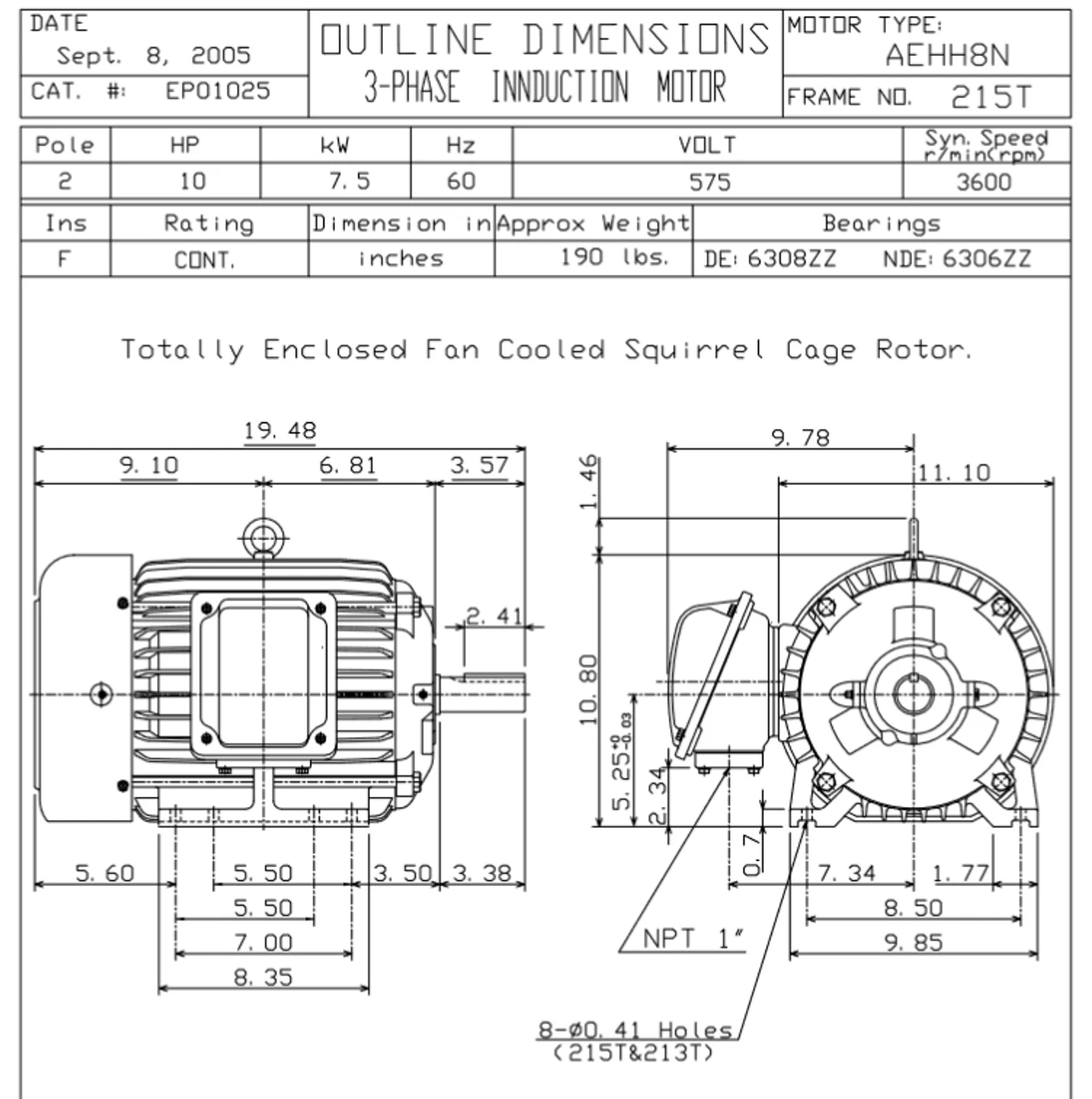

NEMA 213/215T Frame, 3 3/8 x 1 3/8″ Dia. Keyed Shaft
Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
Service Factor: 1.15, Thermal Overload Protection: None
Rigid Base, Reversible, Ball Bearings, Class F Insulation
Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
Motors are U.L. Recognized, CSA Approved and CE Marked
1 Year Manufacture Warranty

Applications: Crushers, Compressors, Mixers, Conveyors, Any Severe Duty Application
