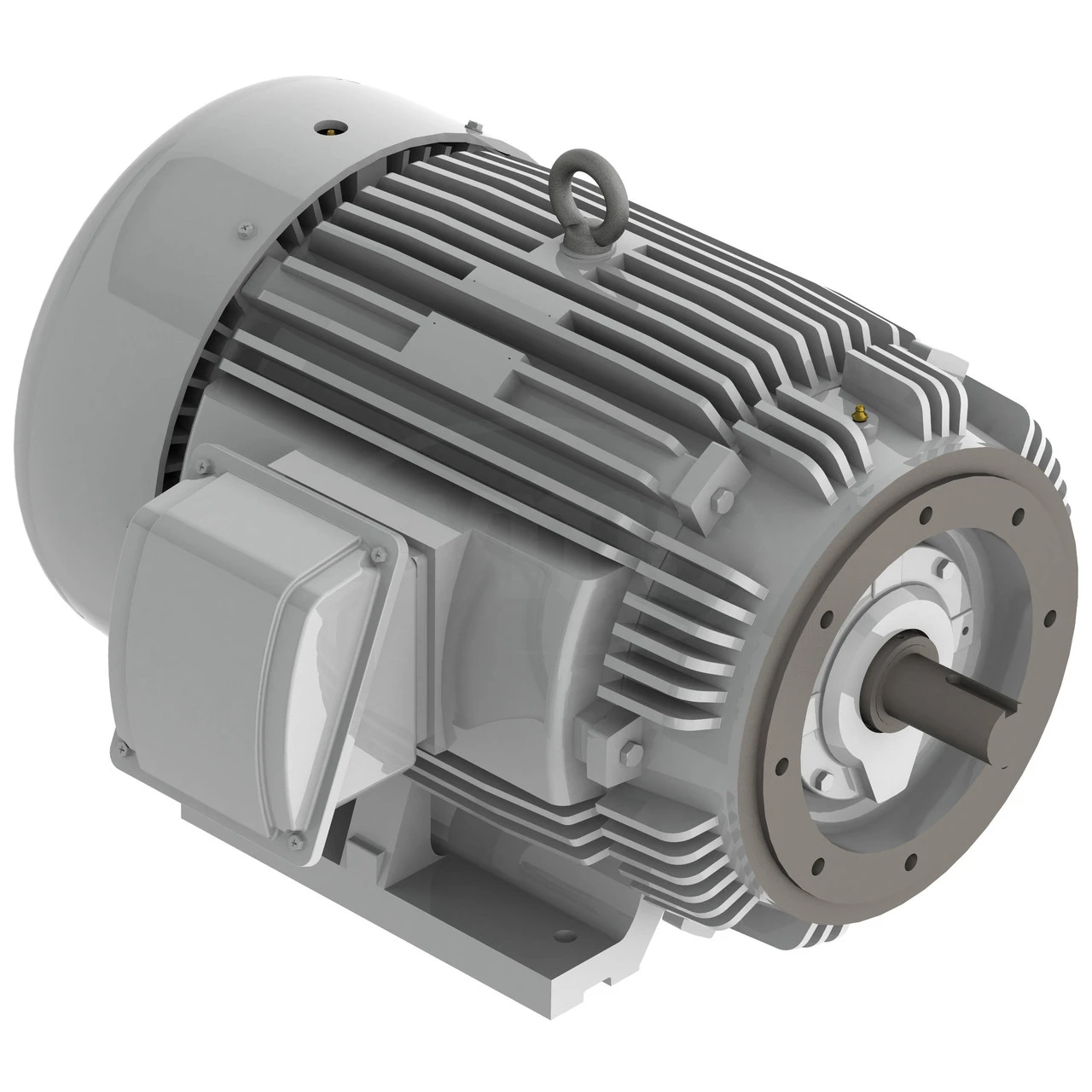

EP0032C TECO Westinghouse 3 Hp 3600 RPM 182TC Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 3 hp 3600 RPM, 7.06/3.53 amps 230/460 Volts 60Hz. Three Phase

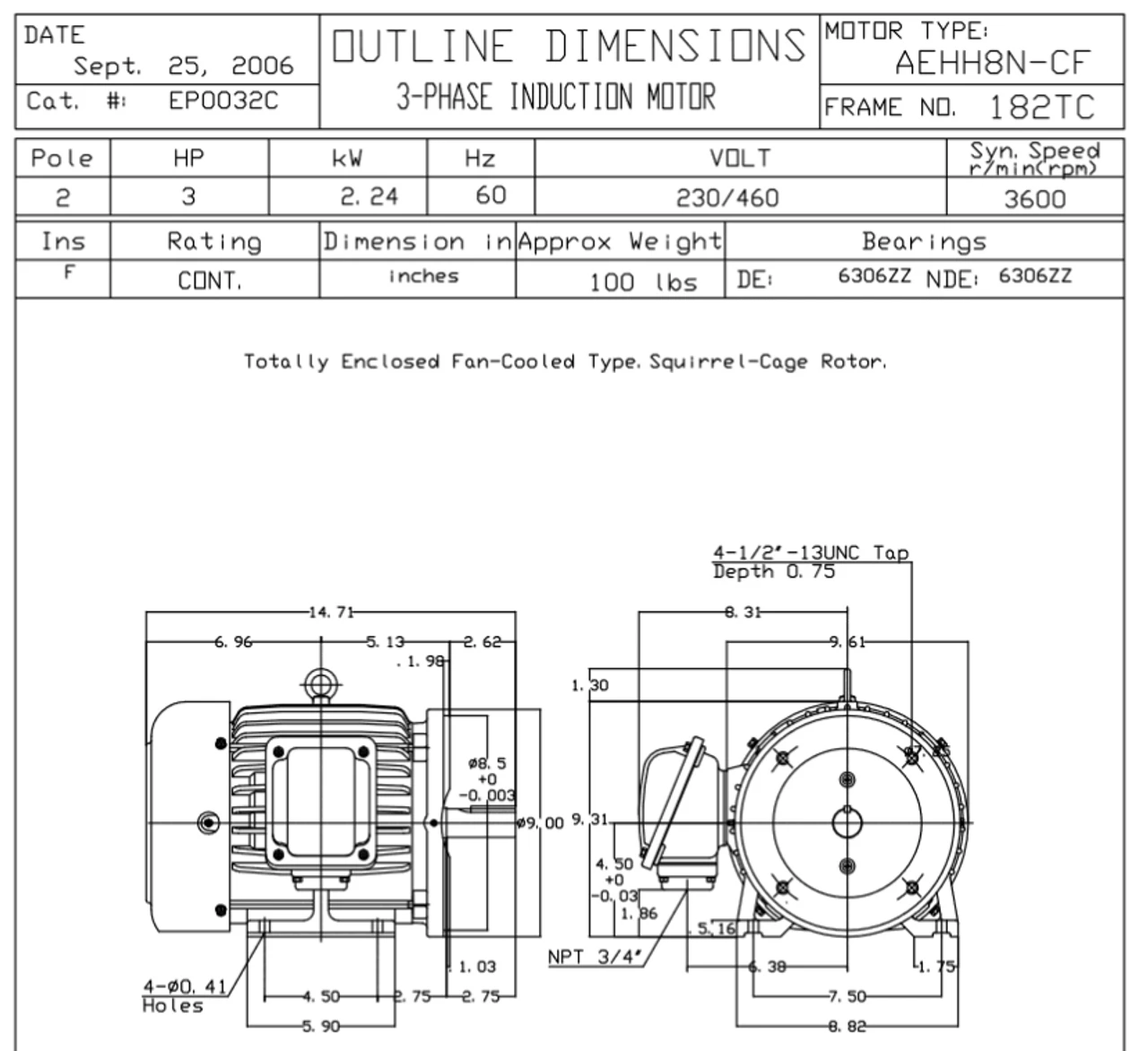

• NEMA 182TC Frame, 2 3/4 x 1 1/8″ Dia. Keyed Shaft

• Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty


Applications: Crushers, Compressors, Mixers, Conveyors, Any Severe Duty Application
