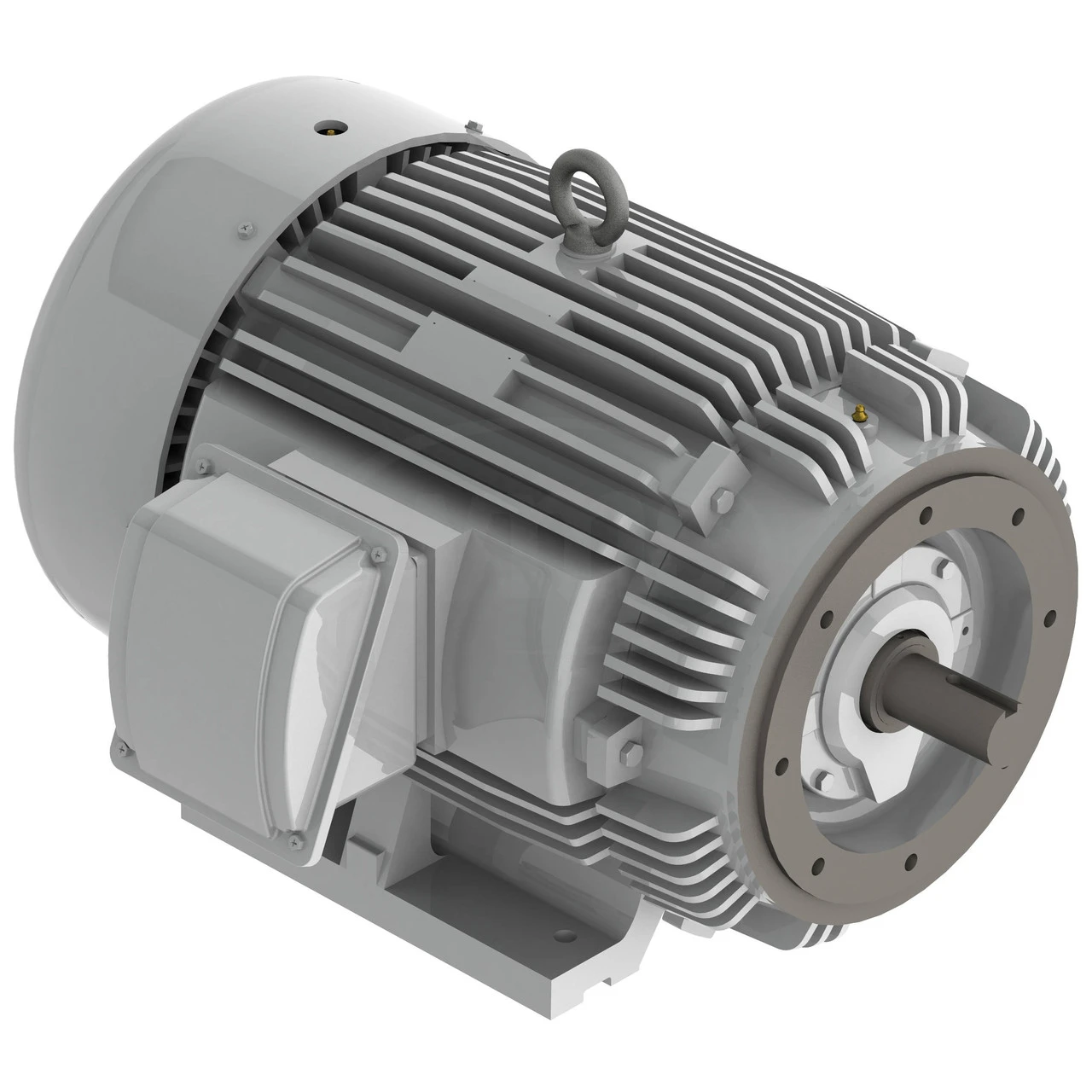

EP0014C TECO Westinghouse 1 Hp 1800 RPM 143TC Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 1 hp 1800 RPM, 3.0/1.5 amps 230/460 Volts 60Hz. Three Phase
• NEMA 143TC Frame, 2 1/4 x 7/8″ Dia. Keyed Shaft

• Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty


Applications: Crushers, Compressors, Mixers, Conveyors, Any Severe Duty Application
